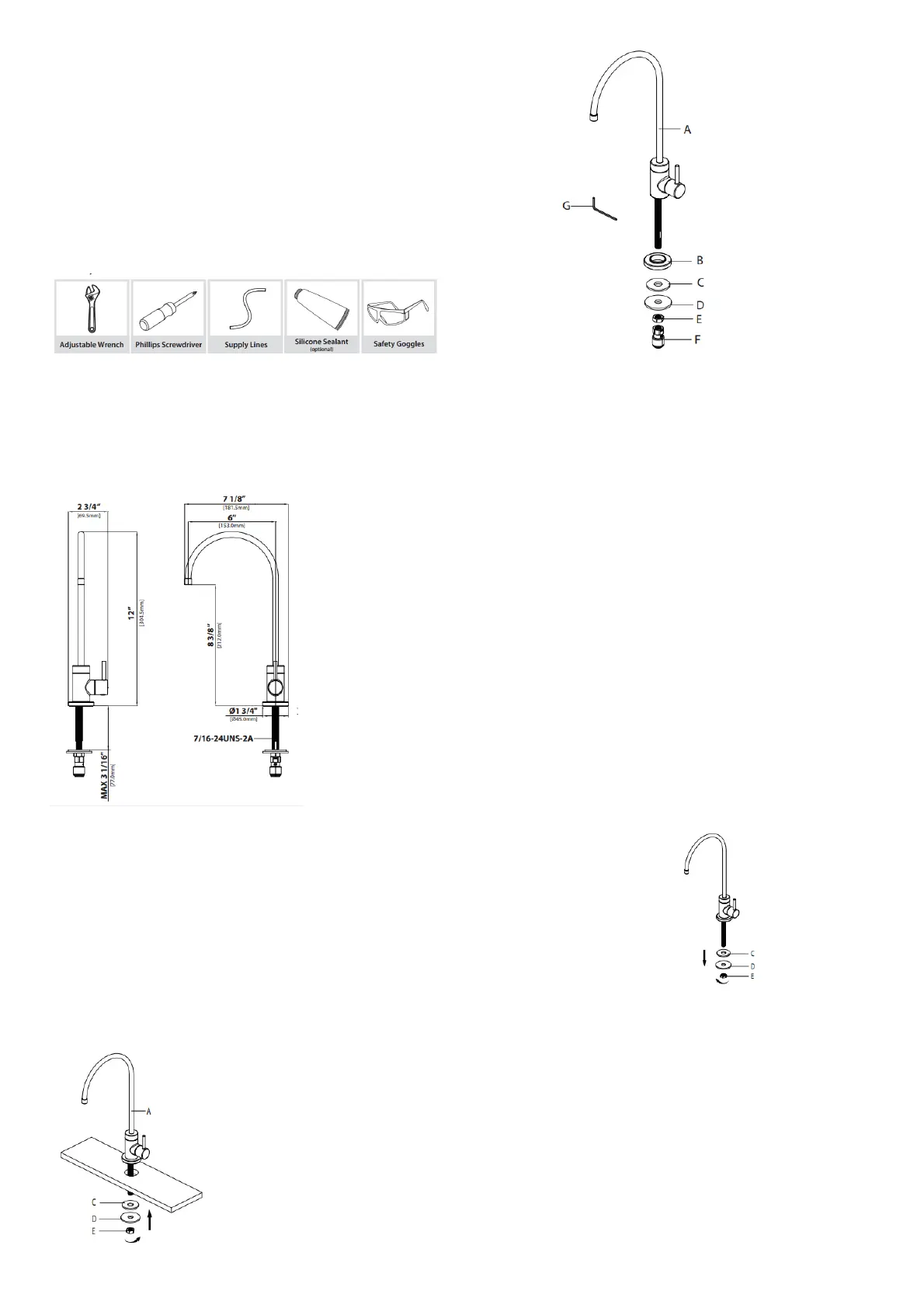

Diagram and Parts List A. Faucet Assembly

B. Flange

C. Rubber Washer

D. Metal Washer

E. Mounting Nut

F. Connector

G. Hex Wrench

Faucet Dimension

Installer Tip:

Step 1: Preparing for installation Remove the rubber washer (C), metal washer (D), and mounting nut (E) from the end of the stud. Step 2: Installing the

faucet assembly Place the faucet assembly (A) through the selected hole in the sink or countertop. On the underside of the sink or countertop, slide the rubber washer (C) and

metal washer (D) onto the stud. Thread the mounting nut (E) onto the stud, and tighten securely using your wrench.
