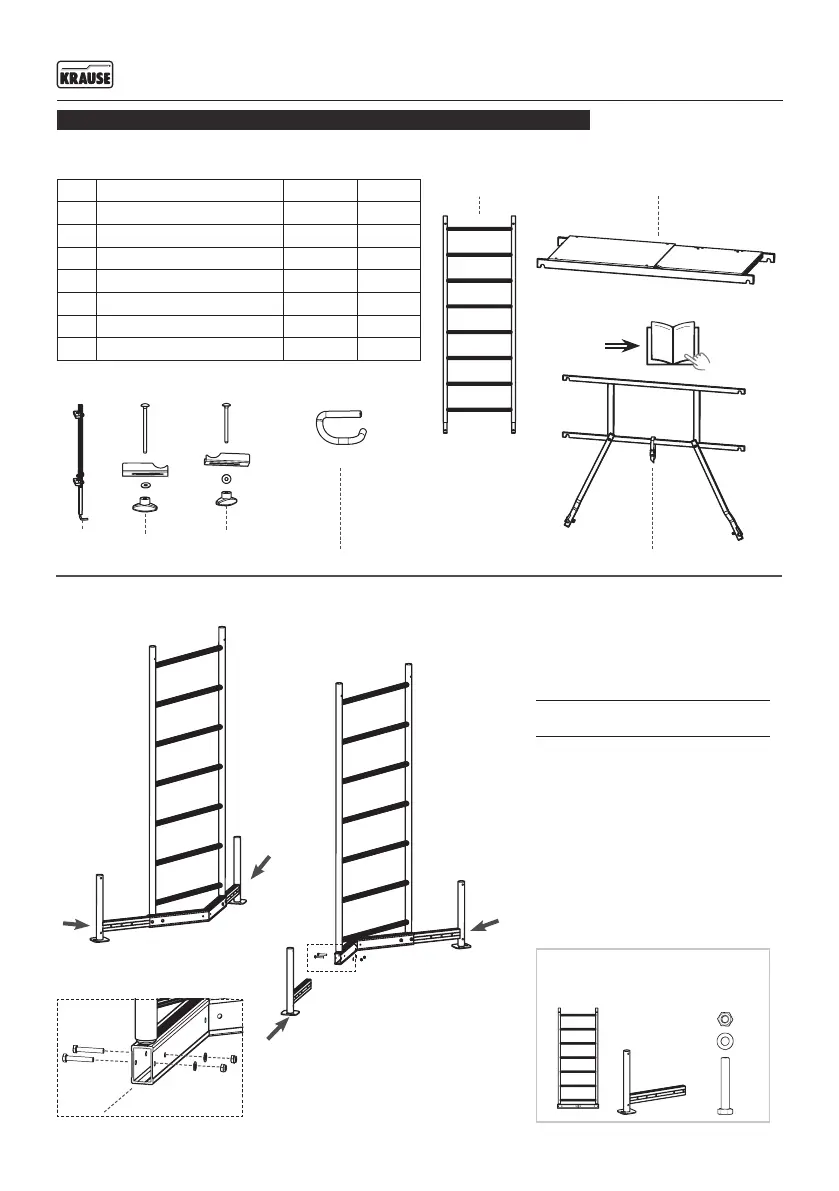

4.4 Basic scaffold with 1 and 2 extra platform(s), 7 metre working height
Art.-No. 710116C0 + Art.-No. 710123C1 (710123B1) + Art.-No. 710703 (BG 2101 + BG 2102 + BG 2103)
Pos. Name Art.-No. Quantity
1 Vertical section 2.00 x 0.65 m 715012 2
2 Platform with hatch 711007 1
3 GuardMatic-System
®
710673 2
4 Locking pin, Ø 8 mm 714411 5
5 Locking bolts M5 x 65 mm 718860 6
6 Locking bolts M5 x 85 mm 718877 2
7 Stabiliser 714305 1
Art.-No. 710703
Assembling the basic scaffold with 1 and 2 extra platform(s)
1.
• Push the stabilisers into the base frames.
• Secure the stabilisers with two sets of
M8 x 50 mm screws each
Always use the maximum
stabilisers width!
2 x Art.-No. 715067
4 x Art.-No. 714008
8 x Art.-No. 718891
1 2
3
42
7 456
