The ready assembled basic scaffold tower
• Start by sitting down on the platform and then stand up on it.
The platform must never be higher than 1 metre, including if the tower is fitted
with castors (optional accessory)!
! !

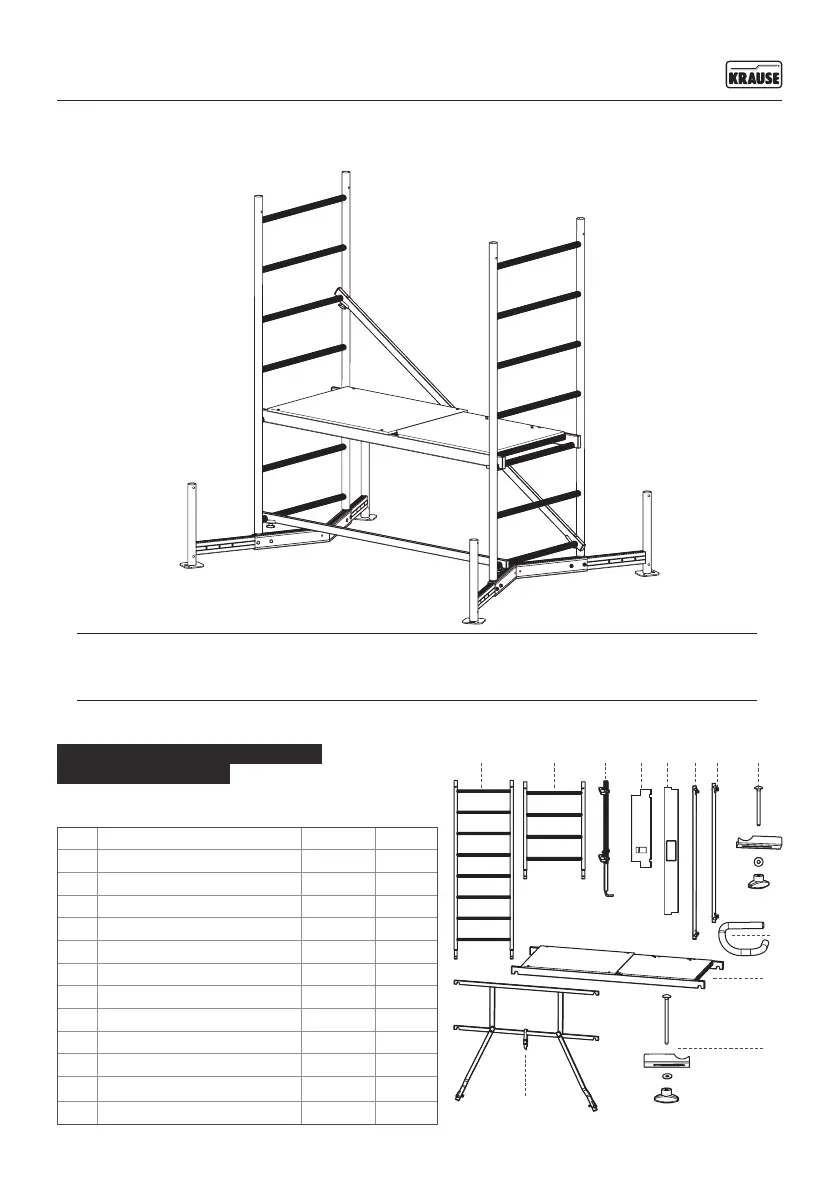

4.3 Basic scaffold with 1 extra level,
5 metre working height
Art.-No. 710116C0 + Art.-No. 710123C1 (710123B1) (BG 2101 + BG 2102)
Pos. Name Art.-No. Quantity
1 Vertical section 2.00 x 0.65 m 715012 1
2 Vertical section 1.00 x 0.65 m 715029 2
3 Stabiliser 714305 1
4 Side board 713506 2
5 Front / back board 713001 2
6 Diagonal brace, approx. 1.89 m 712707 2
7 Horizontal brace, approx. 1.59 m 712806 1
8 Locking bolts M5 x 65 mm 718860 12
9 Locking pin, Ø 8 mm 714411 7
10 Platform 711007 1
11 Locking bolts M5 x 85 mm 718877 2
12 GuardMatic-System
®
710673 2
1 2 3 4 5 6 7 8
12
10
11
9
Art.-No. 710123C1
