4.5 Setting up the ClimTec
®
on stairs

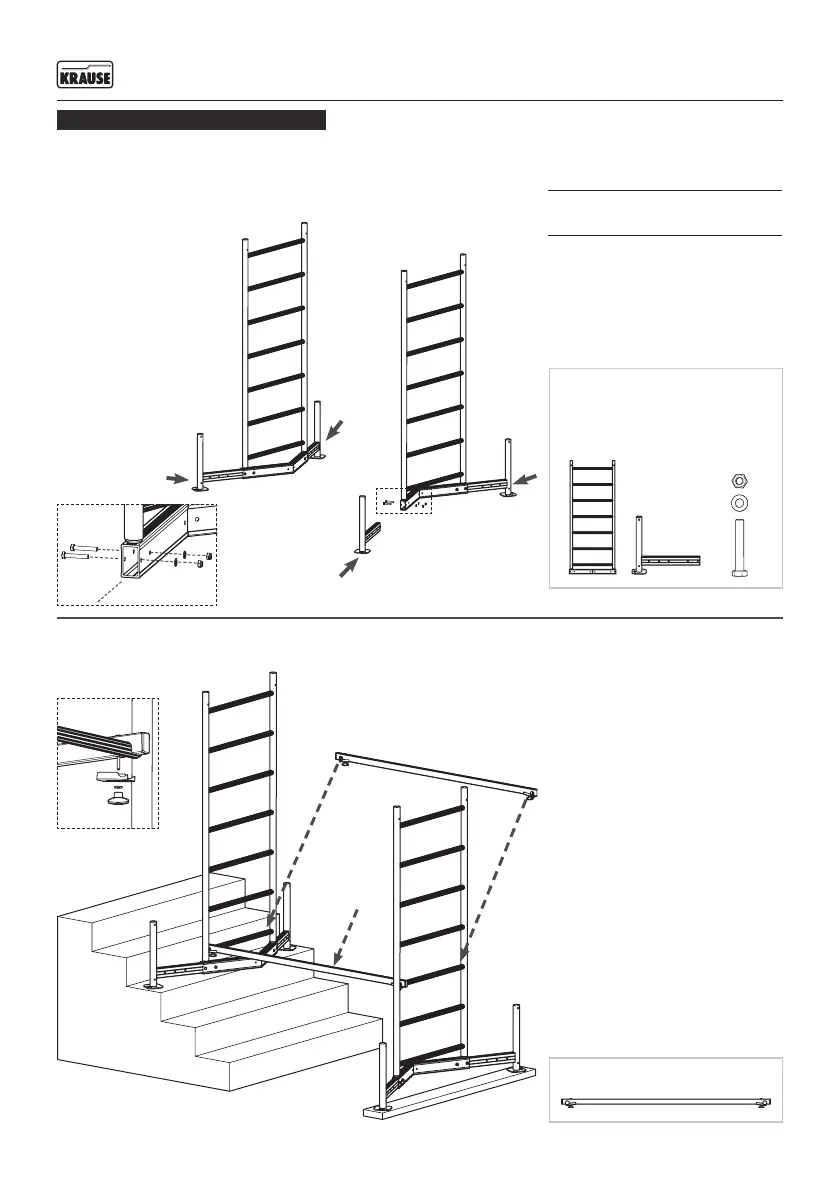

Use on stairs with a 500 and 750 mm height difference.
What you will need: Art.-No. 710116C0 + Art.-No. 710123C1 (710123B1)
1.
• Push the stabilisers into the base frames.
• Secure the stabilisers with two sets of
M8 x 50 mm screws each.
Always use the maximum
stabilisers width!
2 x Art.-No. 712806
2. 500/750 mm height difference
• If the height dierence is lesser/greater, it
has to be brought up/down to exactly
500/750 mm by placing corresponding
pressure-resistant objects (timber planks)
under the tower.
• Attach the two horizontal braces to the
bottom rung on one base frame and then
to the third/fourth rung on the other.
2 x Art.-No. 715067
4 x Art.-No. 714008
8 x Art.-No. 718891
