57
ClimTec
®

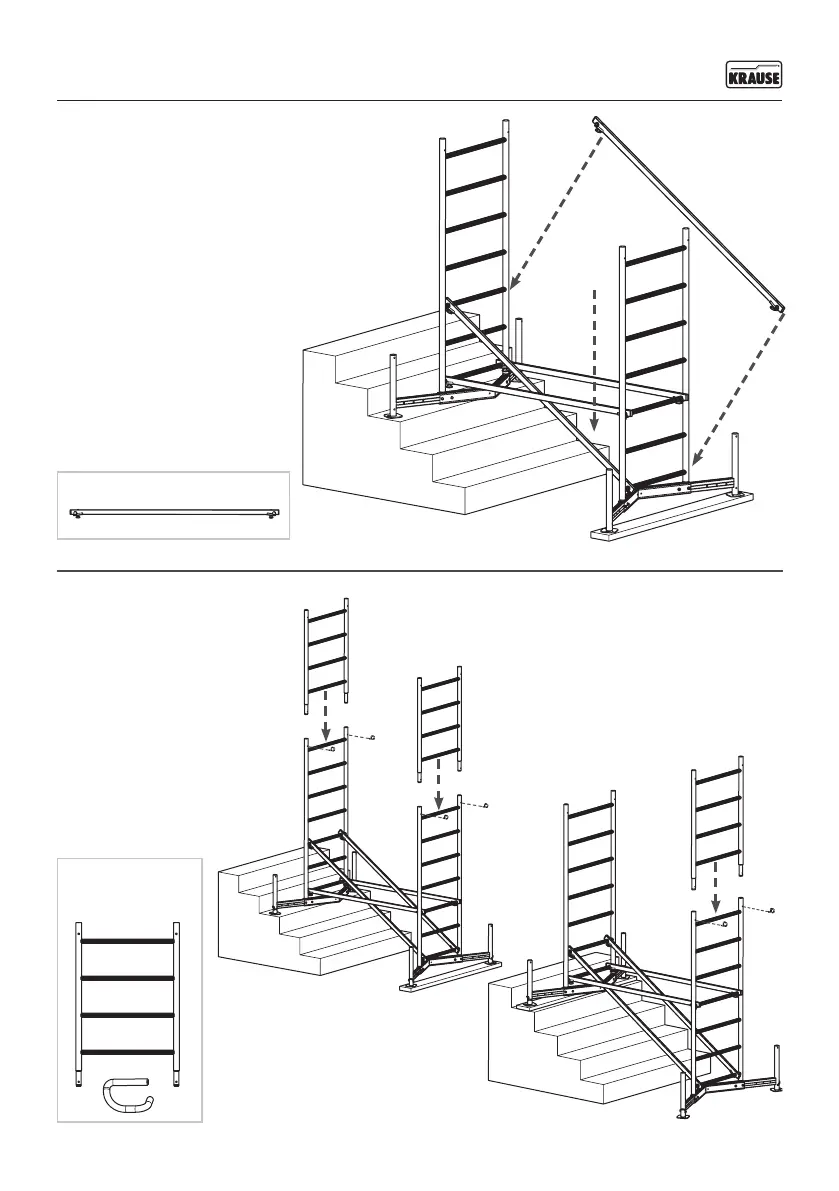

3.
• Attach the diagonal braces to the bottom
rung on the higher base frame and then to
the third/second rung on the lower one.
2 x Art.-No. 712707
500 mm
750 mm
4.
• One person will now be required to hold
the ClimTec
®
while the other attaches
the 1-metre vertical frames.
• Lock the connections with the
locking pins.
2/1 x Art.-No. 715029
4/2 x Art.-No. 714411
