KRAUSE ClimTec 710116C0 - Page 19

53
ClimTec
®

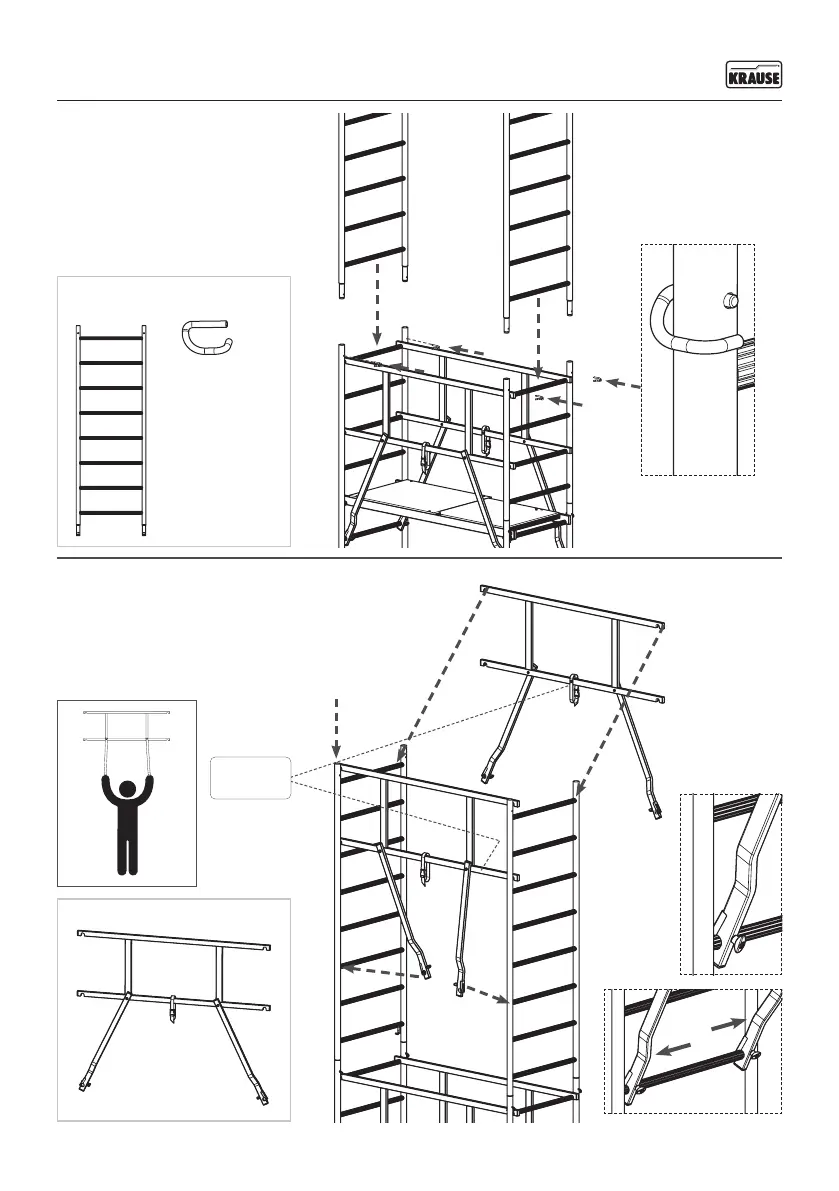

11.
• Take hold of the GuardMatic-System
®
’s
movable diagonal braces.
• Attach the GuardMatic-System
®
to the top
rungs.
• Secure the moveable diagonal braces on
the rungs with the locking bolts.
2 x Art.-No. 710673
10.
• Climb onto the platform through the hatch.
• Attach the 2.0 m vertical frame.
• Lock the connections with the locking pins.
2 x Art.-No. 715012
4 x Art.-No. 714411
!
inside
© KRAUSE-Werk GmbH & Co. KG 561066S
