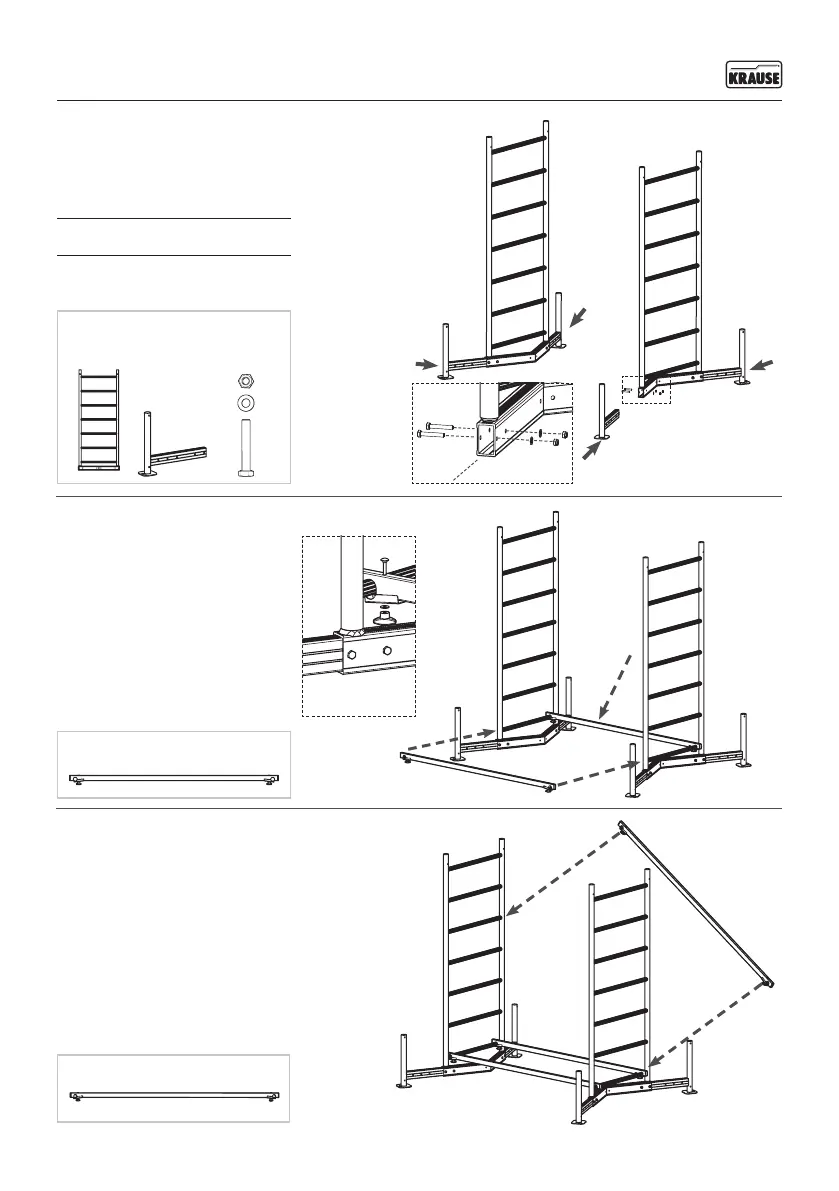

Assembling the basic frame with 1 extra platform
1.
• Push the stabilisers into the base frames.
• Secure the stabilisers with two sets of
M8 x 50 mm screws each.
Always use the maximum
stabilisers width!
2.
• Attach the two horizontal braces to the
base frames.
3.
• Attach the diagonal brace to the bottom
rung on one base frame and to the fifth
rung on the other.
2 x Art.-No. 715067
4 x Art.-No. 714008
8 x Art.-No. 718891
2 x Art.-No. 712806
1 x Art.-No. 712707
