Kreg KMA4000 - Pre-Operation; Product Description and Parts Identification

3
Pre-Operation
Review this section before you begin. Ensure you have all tools/materials on hand and compare
the product with the items listed in the Product Description section. If any item appears missing
or lost, do not use this product. Contact Technical Support or return the product to place of
purchase.

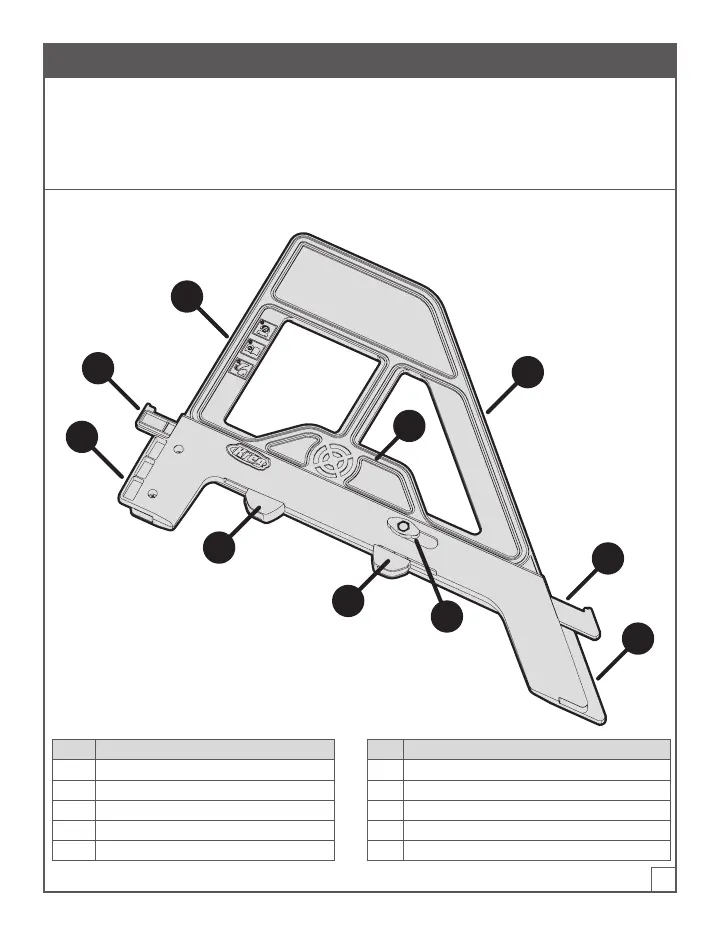

Product Description
G
J
C
E
D
F
A
H
B
I
Part Description Part Description
A Retractable cut line indicator for 90° cuts F 90° Saw guide edge
B Retractable cut line indicator for 45° cuts G 45° Saw guide edge
C Cut line indicator lock knob H Saw support ledge for 90° cuts
D Cut line indicator thumb lever for 90° cuts I Saw support ledge for 45° cuts
E Cut line indicator thumb lever for 45° cuts J SureGrip™ material
