Kroeplin C - Series User Manual

33
Important:
The measuring axis
must be in vertical
position to the
measuring
surface!

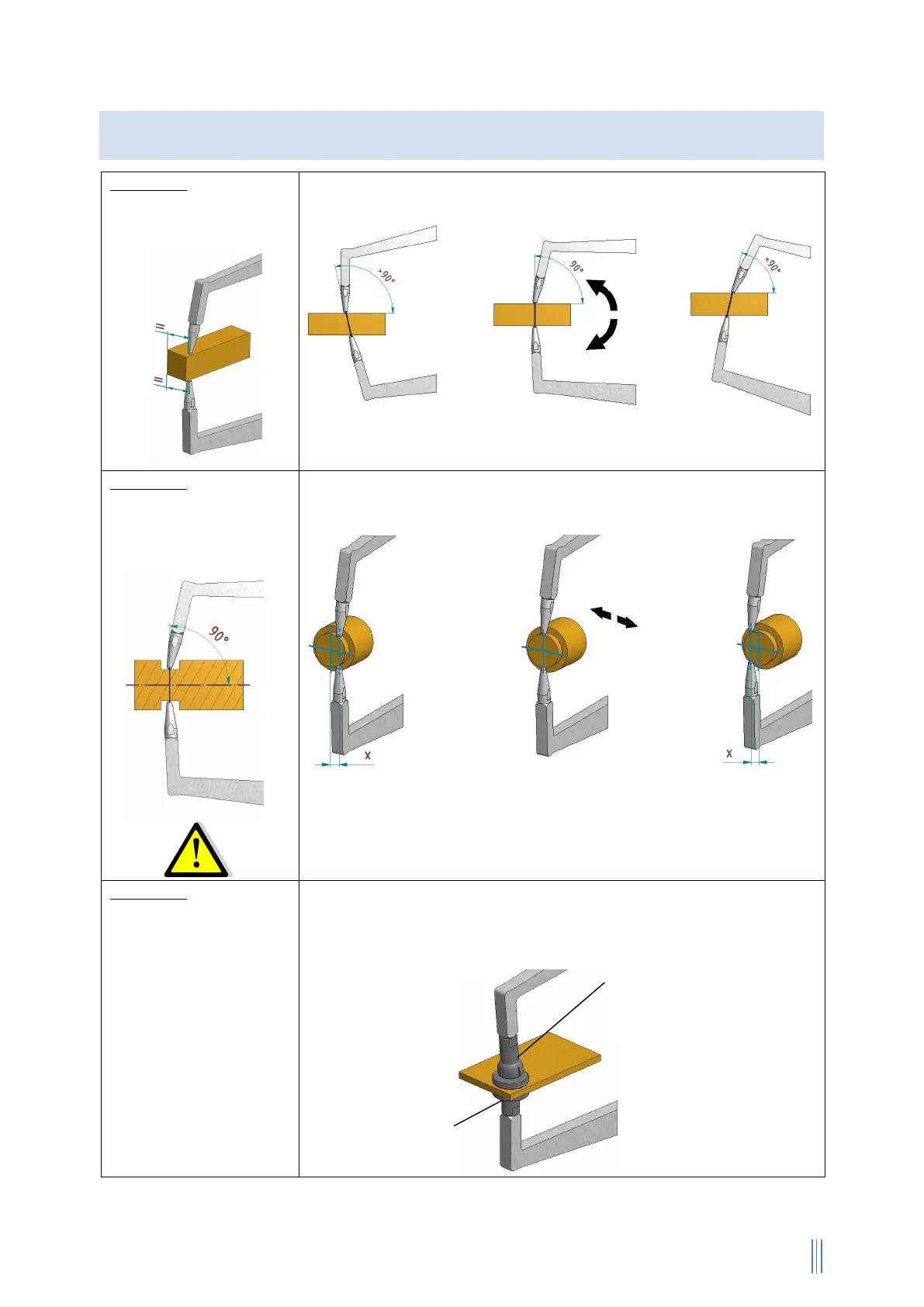

Determination of the minimum measuring value via pivoting
the gage (optimal measurement)
Measured value Measured value Measured value
too high correct too high
Important:
The measuring axis must
be in vertical position to
the measuring surface!
Determination of the maximum measuring value for measurement of
narrow grooves via lateral displacement of the gage, where the gage
cannot be pivoted vertically.
Measured value Measured value Measured value
too small correct too small
For checking round parts it is advisable to use measuring gages with
chisel contacts ( Technical Data).
Important:
The fixed flat contact
must be square against
the part to be measured!
Hold gage steady around
2s!
Measurement of flat material (e.g. foam material) with flat measuring
contacts. Take note of the measuring force!
The movable flat contact aligns optimally so a pivoting or moving of the
gage is not necessary.
Program: MIN / MAX / HOLD
Movable flat
contact
Fixed flat
contact
