The Programs MIN / MAX / HOLD can be used for the „Absolute – Mode“ as well as the
„Relative – Mode”.
After selecting the Program is always activated without pressing the operating lever again.
The instrument must be switched on.
short
Activating the Programs will appear in the display
footer (4.2 – 4.4).

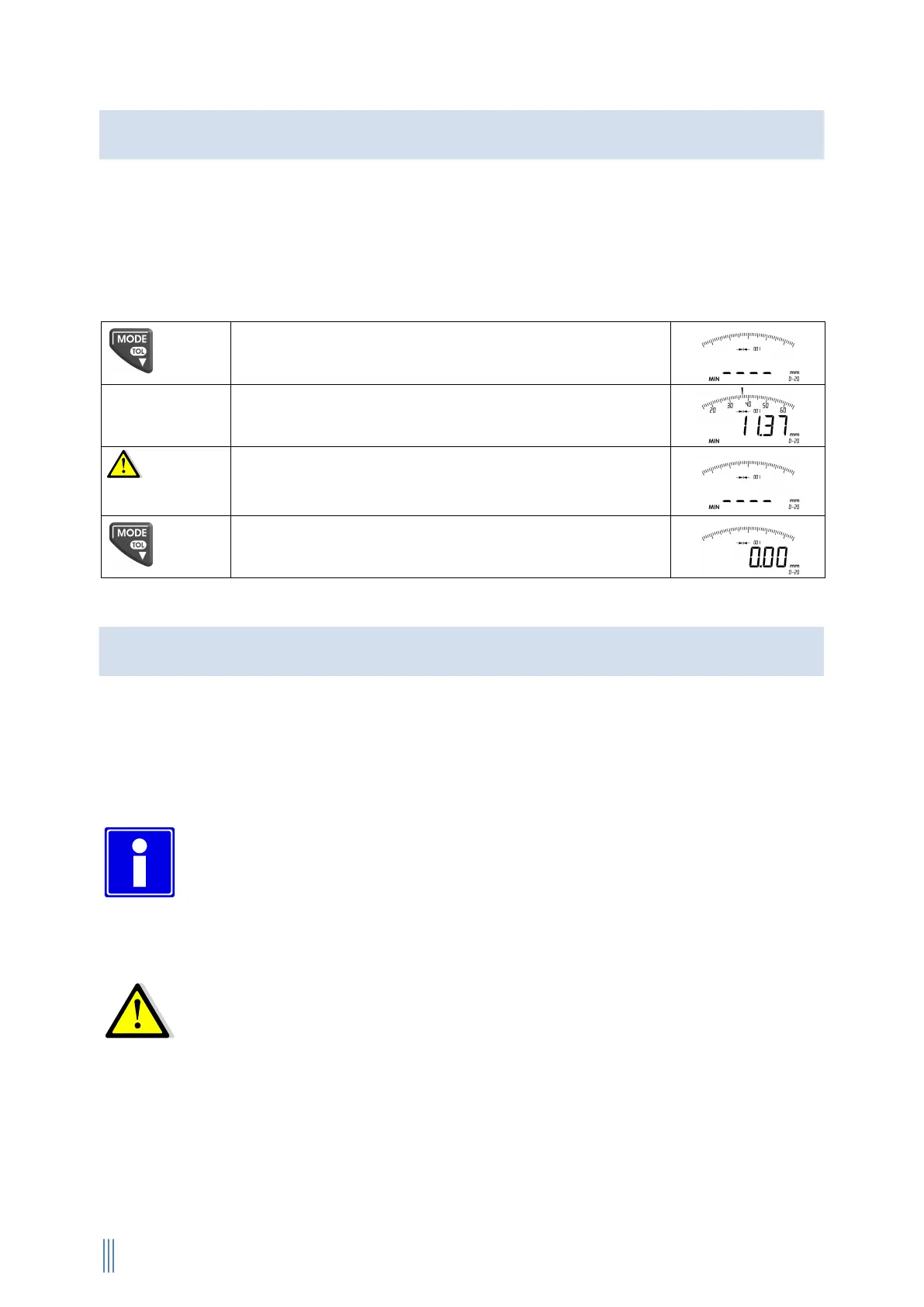

Finding the measured value (Example: 11,37mm)
MIN-
Program
In order to find the new measuring value the gauge
must be brought into basic position.
The display must show four bars.
short
Deactivating the Program and returning to the display.
The TOL-Program is an assistance for checking tolerances during measurements.
Tolerance marks (22), red LED (13) and green LED (14) are activated in this program.
The red LED lights up for parts out of tolerance (rejected parts).
The green LED lights up for parts within the tolerance (good part).
The tolerance function can be activated in each program (MIN, MAX,
HOLD).
Five different tolerance ranges are available in „Absolute – Mode“ as well
as „REL – Mode“ and are working independently.
Please follow the requested requirements of each program for correct
measuring results.
The measuring unit („mm“ and „inch“) and scale interval have to be
selected before setting the tolerance limits otherwise incorrect
measuring results may occur.
Program: MIN / MAX / HOLD
Program: TOL
