Ausgabe Nov. 2009 Technische Änderungen vorbehalten

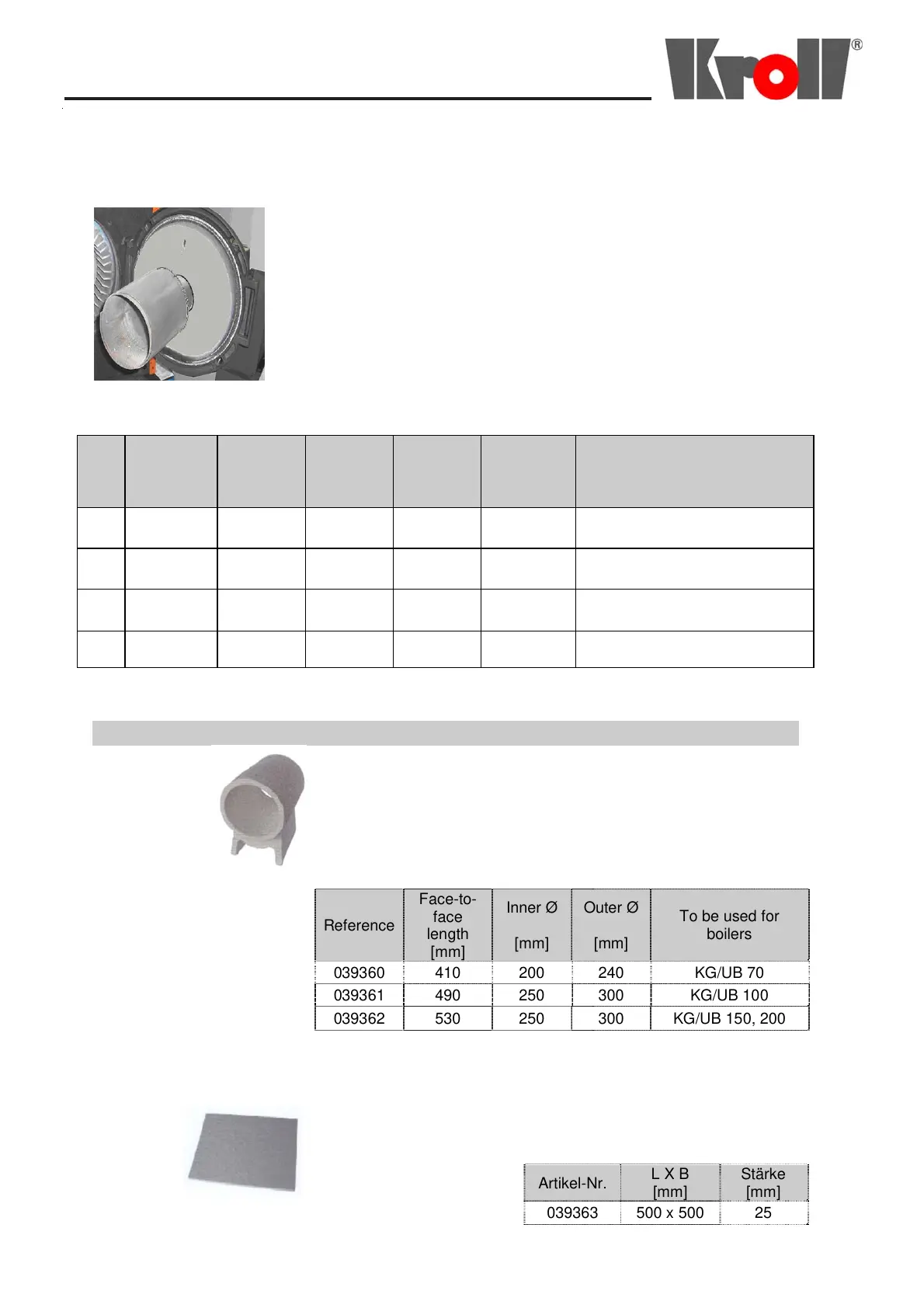

Necessary combustion-improving parts to be used with steel boilers
with large combustion chambers, cast-iron boilers and heaters as accessory
For burner types: KG/UB20-PK / KG/UB20 / KG/UB55 / KG/UB70 / KG/UB100 /
KG/UB150 / KG/UB200
Option: For burner types: KG/UB 70 / KG/UB 100 / KG/UB 150 / KG/UB 200
Ceramic tube to lower the flue gas temperature, to raise the CO
2
values and to lower the soot created.
Kit consists of ceramic tube and base.
Ceramic fibre board – necessary for all burners when used with steel boilers with large
combustion chamber or cast-iron boilers with a vertical rear panel in the combustion chambe
r.
Material : Ceraboard 115
Artikel-Nr.
L X B
[mm]
Stärke
[mm]
039363 500 x 500 25
Pos. Reference
Face-to-
face
length
[mm]
Inner Ø
[mm]
Outer Ø
[mm]
To be used for
a) 038768 ZVP 125 220 123 127
KG/UB20 - WLE 25S
KG/UB20 – WLE 40S
b) 038672 ZVP 140 220 138 142
KG/UB20-PK, 20, 55
- für Kessel
c) 038770 ZVP 160 220 158 162
KG/UB70, KG/UB100
- für Kessel
d) 038771 ZVP 180 220 178 182
KG/UB150, KG/UB200
- für Kessel
ZVP-tube to lower the flue gas temperature, to raise the CO
2
values and
to lower the soot created.
Kit consists of:
a) to be used for heaters 25S and 40S ZVP-tube with Ø 125 mm
b) to be used in boilers - ZVP-tube with Ø 140 mm and fibre mat
c) to be used in boilers - ZVP-tube with Ø 160 mm and fibre mat
d) to be used in boilers - ZVP-tube with Ø 180 mm and fibre mat
Reference
Face-to-
face
length
[mm]
Inner Ø
[mm]
Outer Ø
[mm]
To be used for
boilers
039360 410 200 240 KG/UB 70
039361 490 250 300 KG/UB 100
039362 530 250 300 KG/UB 150, 200
