GB-12
9 After completing the wiring, tightness test and
commissioning for the TC, refit the housing cover
on the TC.

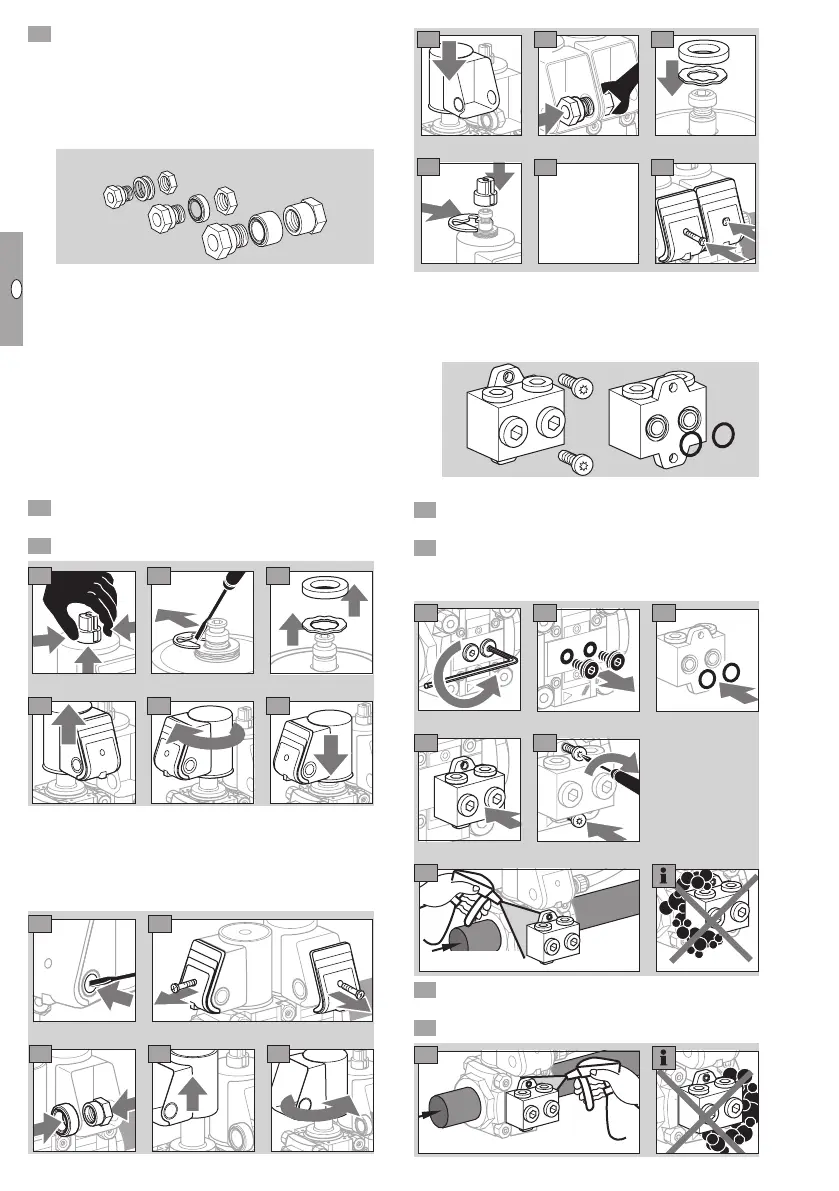

Cable gland set for double solenoid valves
▷
When wiring a double solenoid valve, the connection
boxes are to be connected using a cable gland set.
VCx 1
VCx 2
VCx 3
▷ Order No. for
size 1: 74921985, size 2: 74921986,
size 3: 74921987.
▷
We recommend preparing the connection boxes
before the double solenoid valve is installed in
the pipework. Alternatively, one of the actua-
tors must be dismantled as described below
and reinstalled rotated by 90° in preparation for
installation of the double solenoid valve.
▷ The cable gland set can only be used if the con-
nection boxes are at the same height and on
the same side.
1 Disconnect the system from the electrical power
supply.
Shut off the gas supply.
54
3
87
6
9
10
1312
11
1918
17
15
14
Ventile
elektrisch
anschließen,
siehe Kapitel
„Verdrahten“.
▷
In both connection boxes, push through the
knock-out for the cable gland set – then remove
the covers. The covers must not be taken off
before pushing through the knock-outs as it pre-
vents damage to the connection boxes.
9
10
1312
11
1918
17
15
14
Ventile
elektrisch
anschließen,
siehe Kapitel
„Verdrahten“.
16
1918
17
15
14
Connect
the valves to
the electrical
power supply,
see section
entitled “Wiring”.
Attachment block
▷
For locked installation of pressure gauge or other
accessories, the attachment block is mounted
to the solenoid valve.
▷ Order No. 74922228
1 Disconnect the system from the electrical power
supply.
Shut off the gas supply.
▷ Use the enclosed self-tapping screws for instal-
lation.
N
2
≤ 1,5 x p
u max
54
7
6
8
9 Shut off the downstream gas pipeline close to
the solenoid valve.
10 Open the solenoid valve.
N
2
≤ 1,5 x p
u max
11
