16.14.1.2 Setting sensor B38 "Acceleration sensor"
Fig.

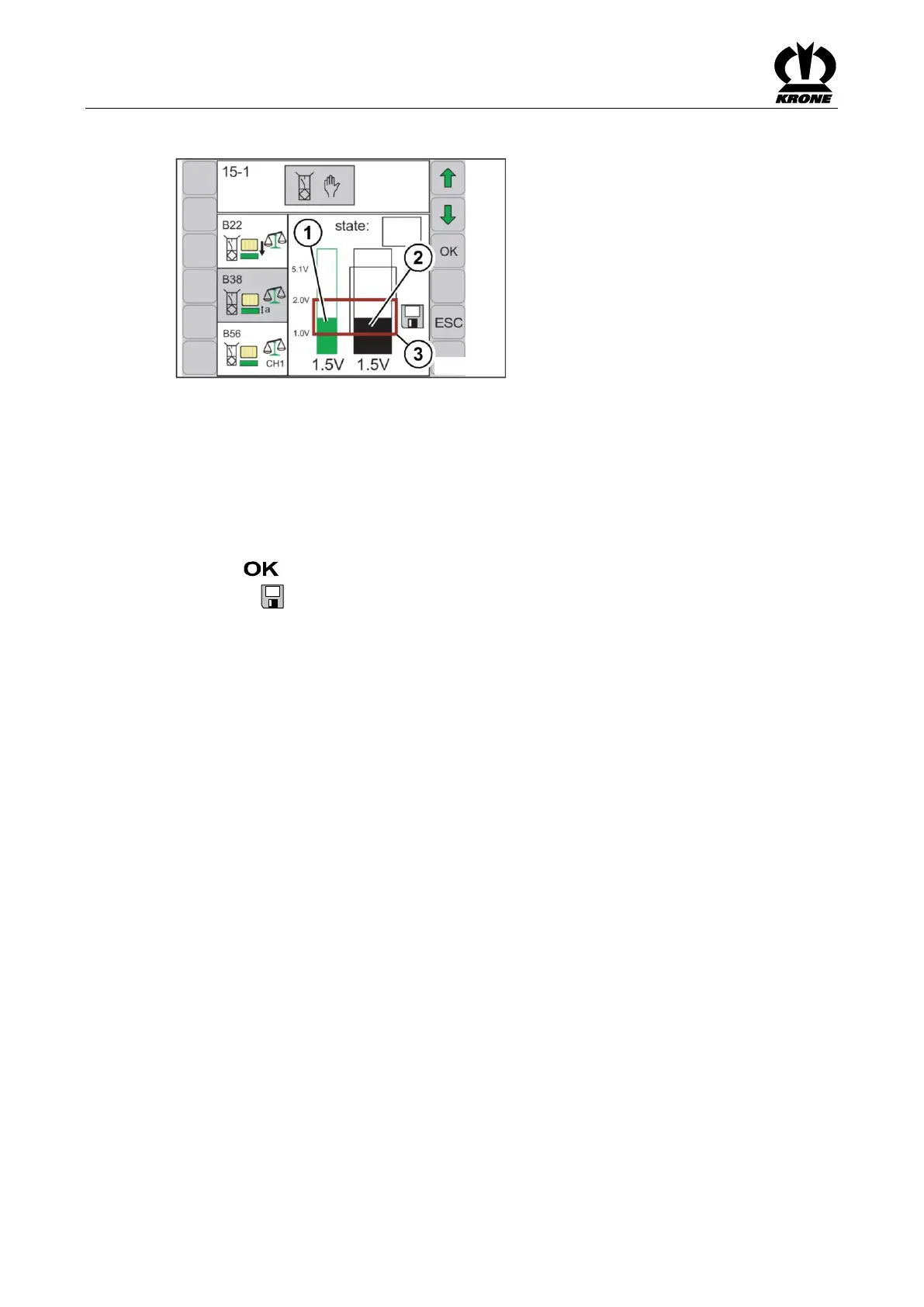

The sensor B38 has been preset at the factory. The two bars (1,2) must be inside the marked
area (3) of the bar display. Due to heavy loads and the settling of components, a calibration
may be required if the bar (2) within the marked area (3) is larger or smaller than the bar (1)
when the chute is lowered.
The bale chute has been lowered.
The sensor test has been selected and sensor B38 has been selected.
• Press until the left bar (1) has taken the value of the right bar (2).
The symbol shows that the value has been stored.
