Operation

Pos: 22.19 /Übersc hriften/Überschrif ten 2/A-E/A bstellstütze in Tra nsportstellu ng schwenken @ 10\mod_12 21637347634_78. docx @ 13553 9@ 2 @ 1

8.3 Swivelling parking support into transport position

Pos: 22.20 /BA/Be dienung /Eas yCut/Abstellstütze /Achtung Abs tellstütze eing eklappt EC 280 /320 CV-Q @ 10\ mod_122163 7532743_78.doc x @ 135563 @ @ 1

Caution! - Parking support(s) not swivelled into transport position before road/transport

travel and for work!

Effect: Damage to the machine

• Make certain before road/transport travel and for work that the parking support(s) is/are

raised or folded in and secured in place with a bolt!

Pos: 22.21 /BA/Be dienung /Eas yCut/Abstellstütze /Abstellstütze eingeklappt Bild EC 2800/3 200 @ 10\mod_1 22215445151 4_78.docx @ 1 38967 @ @ 1

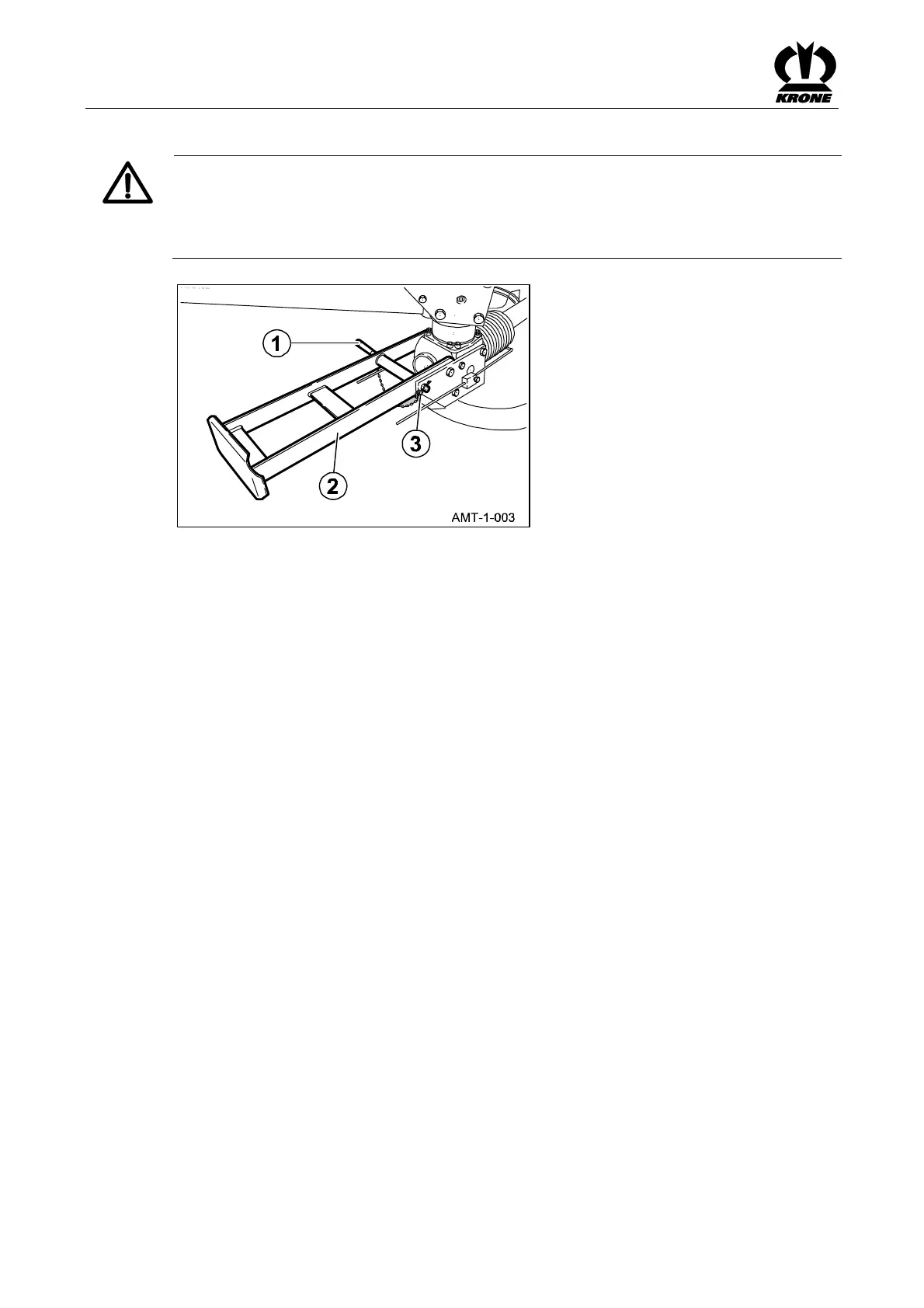

Figure 20

Pos: 22.22 /BA/Be dienung /Eas yCut/Abstellstütze /Abstellstütze hochschwen ken 1 @ 11\mod _1222425452 999_78.docx @ 1 42081 @ @ 1

Lift the parking support (2) into the working position of the disc mower and lock it in place with

the bolt (1).

Pos: 22.23 /BA/Be dienung /Eas yCut/Abstellstütze /Abstellstütze hochschwen ken Zusatz mit F ederstecker sich ern @ 12\ mod_122398402821 0_78.docx @ 1 49858 @ @ 1

• Secure bolt (1) with spring cotter pin (3).
