9.3 Setting of the Ground Pressure
Pos: 24.15 /BA/Ei nstellungen/M ähwerke/EasyCu t/Bodendruck/B odendruck allg emeiner Te xtalle EC @ 0\mod _11966672711 81_78.docx @ 10190 @ @ 1
The ground pressure for the cutter bar is adjusted to local conditions by means of the
compensation springs. In order to protect the sward the load on the mowing spar must be
relieved so that it does not jump when mowing, yet does not leave any skid marks on the
ground.
Pos: 24.16 /BA/Ei nstellungen/M ähwerke/EasyCu t/Entlastungsfe der(n)/Entlastu ngsfeder Bild EC2 801/3201/3 600 @ 39\mod _1267789559 053_78.doc x@ 35 7400 @ @ 1

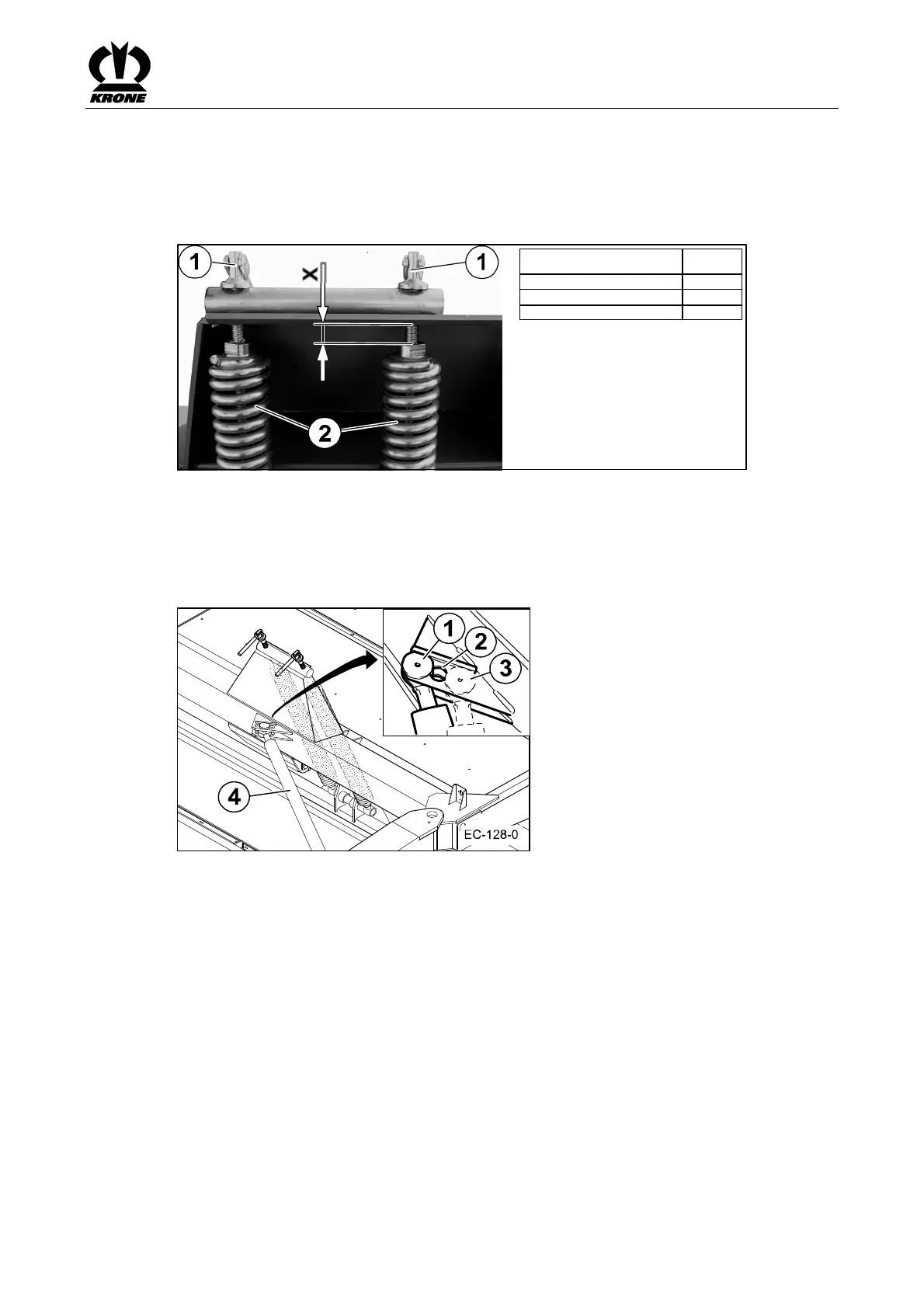

X
EasyCut 2800 50 mm
EasyCut 3200 25 mm
EasxCut 3600 25 mm
EC-312-0
Fig. 27
Pos: 24.17 /BA/Ei nstellungen/M ähwerke/EasyCu t/Entlastungsfe der(n)/Entlastu ngsfeder/Bode ndruck einstelle n EC 2800/32 00/3210/4013 @ 10\mod_1222 263837578_78. docx @ 13948 7@ @ 1
The ground pressure can be adjusted through threaded spindles (1). To set the ground
pressure the machine must be lifted.
Pos: 24.18 /BA/Ei nstellungen/M ähwerke/EasyCu t/Entlastungsfe der(n)/Werksseitig e Einstellung der Entlastungsf edern @ 39\ mod_12677897 90725_78.doc x @ 357425 @ 22 @ 1
The relieving springs have been preset to dimension “X” at the factory (see table).
Pos: 24.19 /Übersc hriften/Überschrif ten 2/A-E/Ein stellung zur Tr aktorspur @ 35\mod_125792 6368191_78. docx@ 334782 @ @ 1
9.4 Setting for tractor track
Pos: 24.20 /BA/Ei nstellungen/M ähwerke/EasyCu t/Einstellung z urT raktorspur EC 2800 CV / 3200 CV @ 10\ mod_12222650 92187_78.doc x @ 139597 @ @ 1
Figure 28:
The double-action hydraulic cylinder (4) moves the disc mower from transport to working
position. There are three attachment positions available for the track setting. We recommend
the middle position (2).
