Operation 8
Side guard - for the “series” version 8.2
EasyCut F 320 M
Original Operating Instructions 150000808_01_en 47
8.2 Side guard - for the “series” version

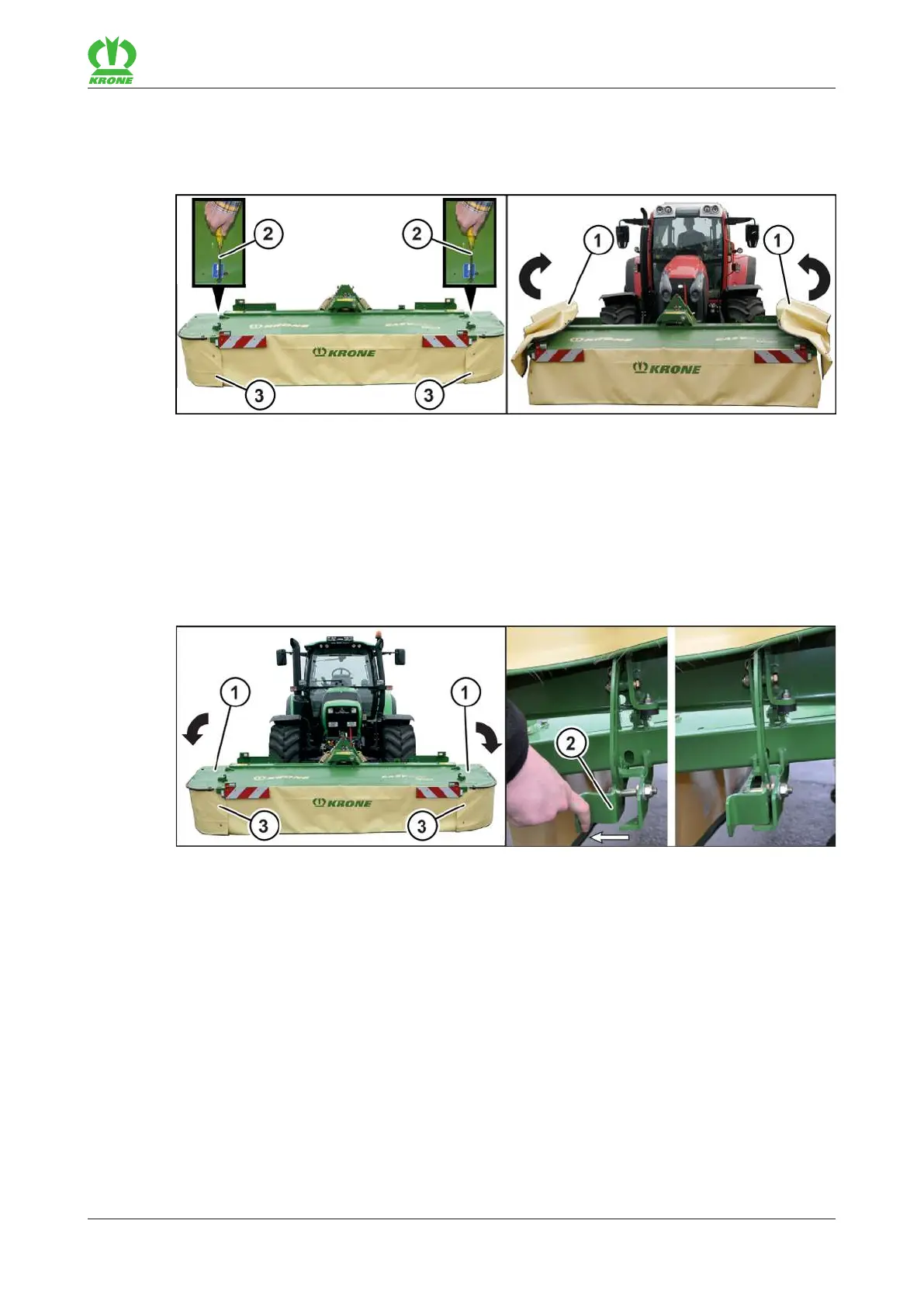

8.2.1 Folding up side guard (transport position)
KMG000-058
ü The machine is in the working position, refer to page48.
ü The machine is shut down and safeguarded, refer to page24.
Open the turnlock fasteners(3).
To unlock the side guard(1), press a screwdriver(2) under the catch.
Fold up the side guard (1) until the side guard engages in the latch.
8.2.2 Folding down side guard (working position)
KMG000-059
ü The machine is in the working position, refer to page48.
ü The machine is shut down and safeguarded, refer to page24.
To fold down the side guard (1), pull the side guard out of the latch with the locking (2)
pulled and fold it down.
Secure the guard cloths by means of the turnlock fasteners(3).
