6 Commissioning
6.2 Mounting coupling triangle
36
EasyCut F 320 M
Original Operating Instructions 150000808_01_en

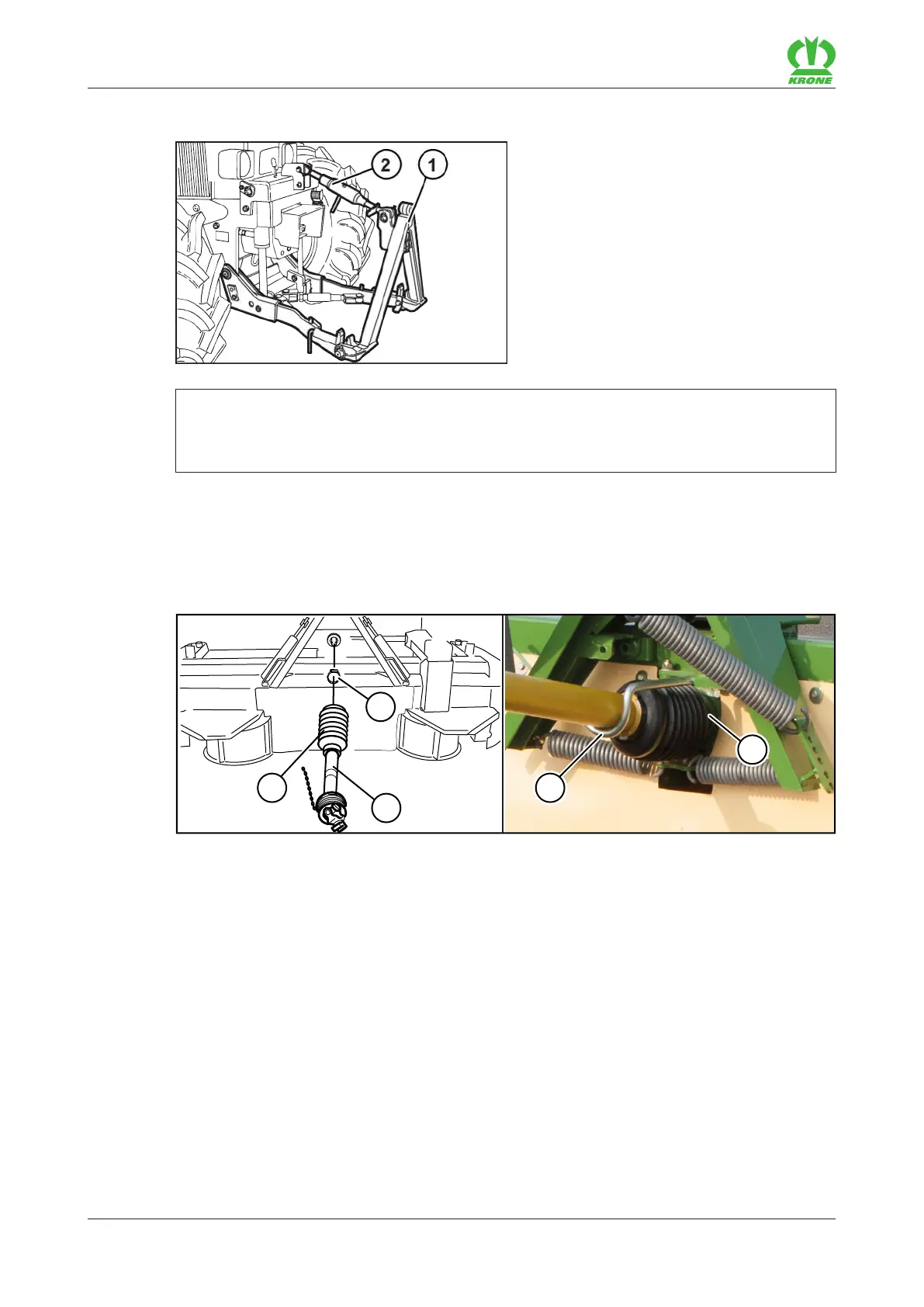

6.2 Mounting coupling triangle
KM000-246
INFORMATION
To mount the coupling triangle, observe manufacturer’s operating instructions of coupling
triangle.
 To mount the front mounted mower, mount a coupling triangle (1) in the front hydraulics of
the tractor.
 Adjust the top link (2) so that the coupling triangle is inclined slightly to the front.
6.3 Preparing front mounted mower
2
3
4
4
1
KMG000-053
 Push the universal shaft(3) with the full guard(2) onto the PTO shaft end of the input
gearbox until the fuse engages.
 Secure the full guard (2) against turning by using the pipe clamp (4).
 Place the universal shaft (3) on the universal shaft bracket (1).
