Setting the side guards 10.5
EasyCut F 320 M
Original Operating Instructions 150000808_01_en 57
10.5 Setting the side guards

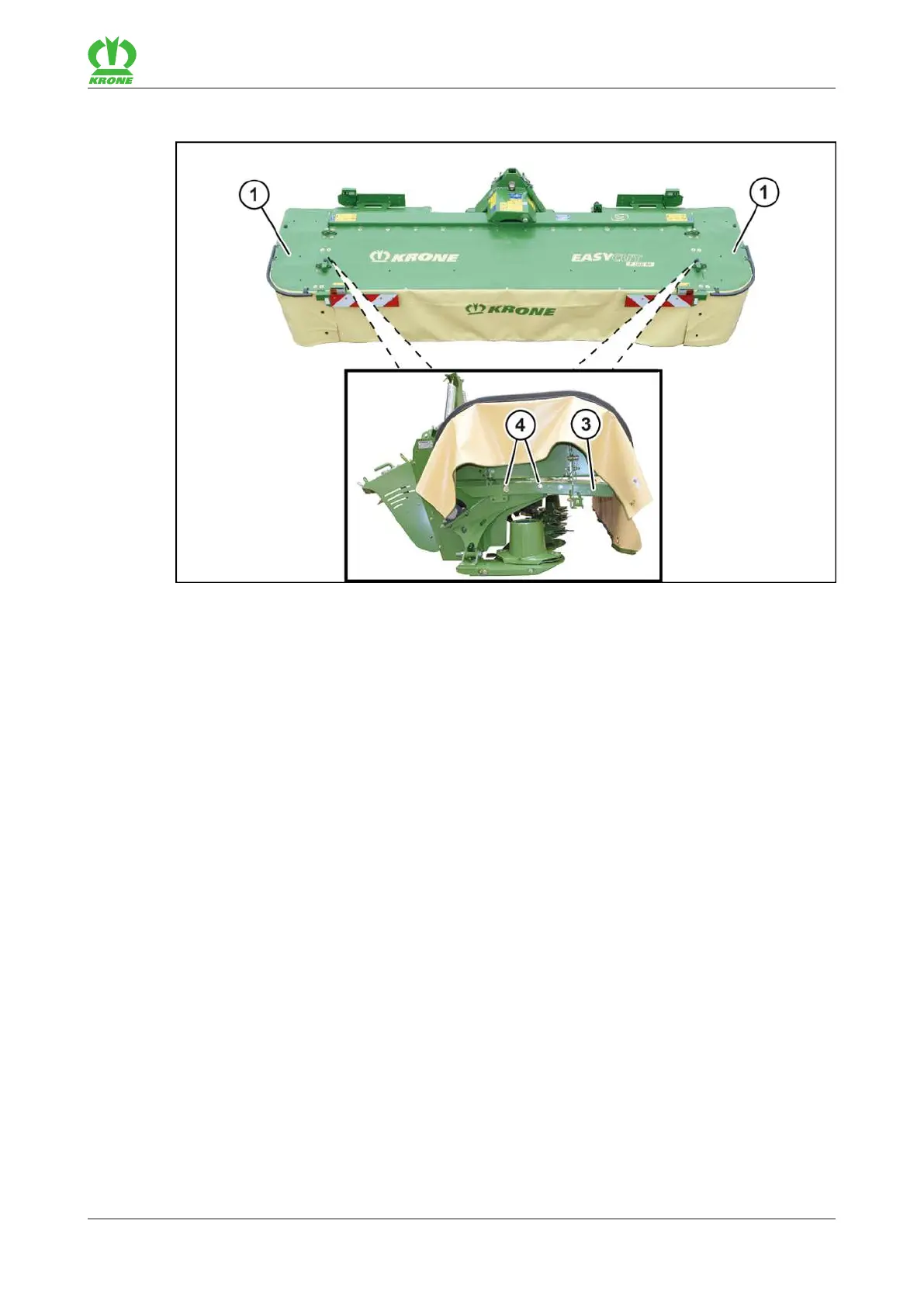

KMG000-078
The protective equipment can be adapted to harvesting conditions by adjusting the guards. In
order to avoid that crop stalks bend because the guards are too low, set the guards higher. To
avoid that stones are slung away when the crops are low, set the guards lower.
ü The machine is in the working position, refer to page48.
ü The machine is shut down and safeguarded, refer to page24.
 Fold up the side guards (1),refer to page47
 Loosen the screws (4).
 Set the height of the side guard (1) by means of the console (3).
 Tighten the screws (4).
