10 Settings
10.2 Telescopic top link
54
EasyCut F 320 M
Original Operating Instructions 150000808_01_en
KMG000-025
ü The machine is in transport position.
ü The machine is supported safely, refer to page24.
ü The machine is shut down and safeguarded, refer to page24.
 The high-cut skids must always be mounted underneath the cutting discs that run next to the
mower drums.

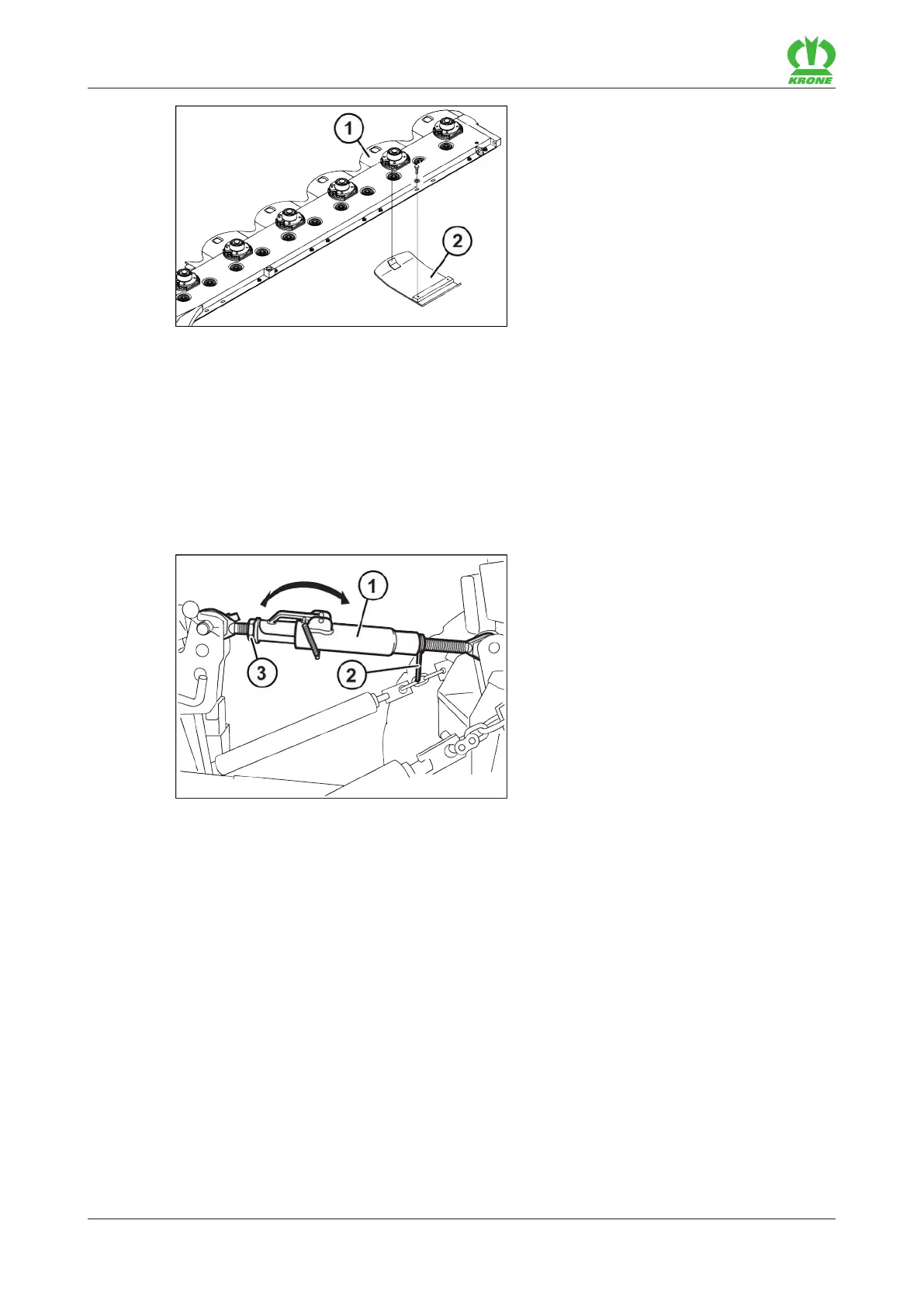

 Insert the high-cut skid(2) into the sliding skid(1) and screw it.
10.2 Telescopic top link
KMG000-060
In order to allow the front mounted mower to adapt to the ground in the direction of travel, a
telescopic top link can be purchased as optional additional equipment.
ü The machine is raised to the transport position via front hydraulics,refer to page49.
ü The machine is shut down and safeguarded, refer to page24.
 To release the ground tracking in the direction of travel, shift the lockclip (1).
Setting cutting height
Setting range of cutting height, refer to page32.
ü The machine is lowered to the working position via front hydraulics,refer to page48.
ü The machine is shut down and safeguarded, refer to page24.
 To set the cutting height, loosen the counter nuts (2,3).
 Turn the top link until the cutting height is set.
ð Top link longer = smaller cutting height
ð Top link shorter = greater cutting height
 Tighten the counter nuts (2,3).
