Submersible Motor Pumps (150 mm and above)
12

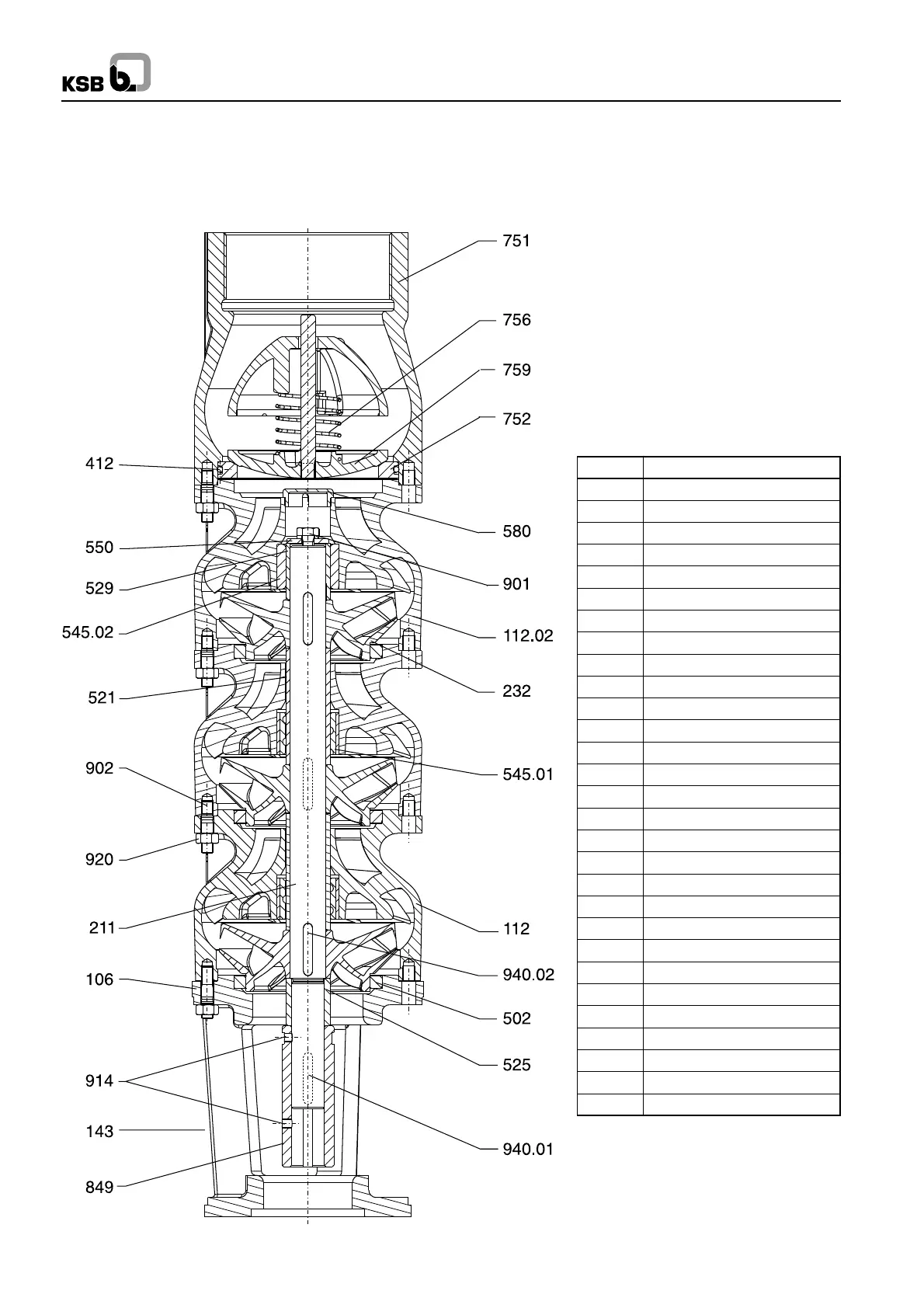

Note : This is a representative drawing.
The construction of pump with motor
combination will be different.
Please refer KSB for the drawing of specific
pump and motor combination.
Part No. Description
106 Suction casing
112 Stage bowl
112.02 Stage bowl last stage
143 Suction strainer
211 Pump shaft
232 Clockwise impeller
412 O-ring
502 Wearing ring
521 Stage sleeve
525 Spacer sleeve
529 Bearing sleeve
545.01 Bearing bush
545.02 Bearing bush
550 Washer
580 Cap
751 Valve body
752 Valve seat
756 Valve spring
759 Valve dish
849 Coupling sleeve
900 Round head screw
901 Hex. bolt
902 Studs
904 Threaded pin
914 Grub screw
920 Hex. nut
931 Washer
940.01 Key
940.02 Key
13.2 Mixed flow pump (150/175/200mm) - BPD 242, 273, 302, BPI 333 & BPHA 333, 384
