KSB BPHA 333 - Motor Constructions (Schematic); UMAI 150 (up to 15 HP)

Submersible Motor Pumps (150 mm and above)
13

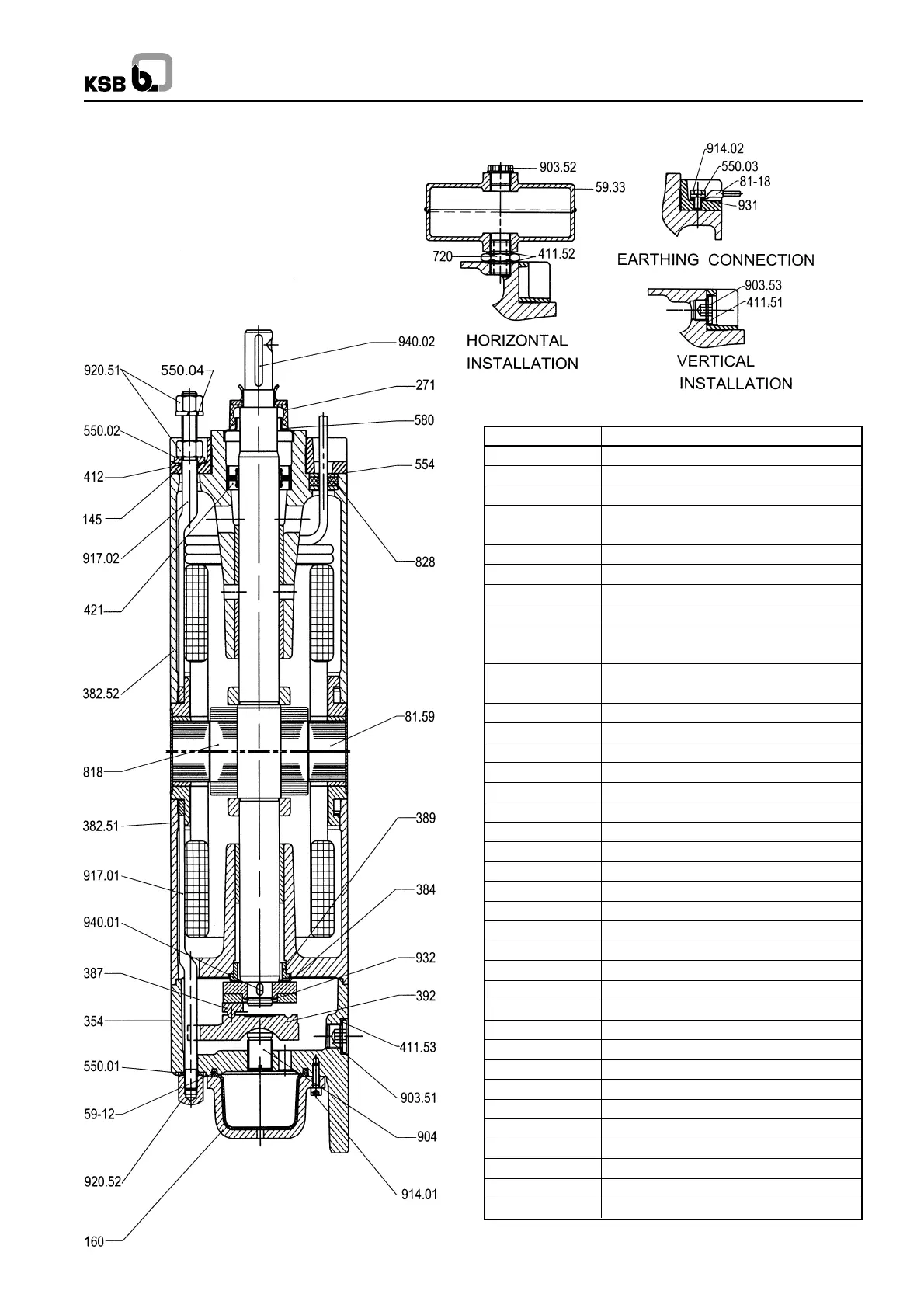

14 Motor Construction (Schematic)
14.1 UMAI 150 (Up to 15 HP)
* Recommended spare parts
Part No. Description
59-12 Diaphragm
59-33 Storage tank
81-18 Cable shoe
81-59
Stator with press ring (815)
Finger presser disc (81.34)
145 Adapter
160 Cover
271* Sand guard
354 Thrust bearing housing
382.51
Bearing body (Lower)
with Bearing bush (Lower - 545.01)
382.52
Bearing body (Upper)
with Bearing bush (Upper - 545.02)
384 Thrust plate assembly with disc (550)
387 Thrust bearing segment
389 Counter thrust bearing
392 Bearing segment carrier
411.51,52,53* Gasket
412* ‘O’ ring
421* Oil seal
550.01,02,03,04 Washer
554 Cable press washer
580 Cap
720 Double nipple
818 Rotor with balancing ring (81-77)
828* Cable packing ring
903.51 Threaded plug (Allen head)
903.52 Threaded plug (Hex.)
903.53 Threaded plug (Allen head)
904 Threaded pin
914.01 Screw (Allen head)
914.02 Screw (Hex. head)
917.01 Hook bolt (Lower)
917.02 Hook bolt (Upper)
920.51 Nut (Hex.)
920.52 Nut (Cap)
931 Lock washer
932* Circlip
940.01,02 Key
