7 Movement handling

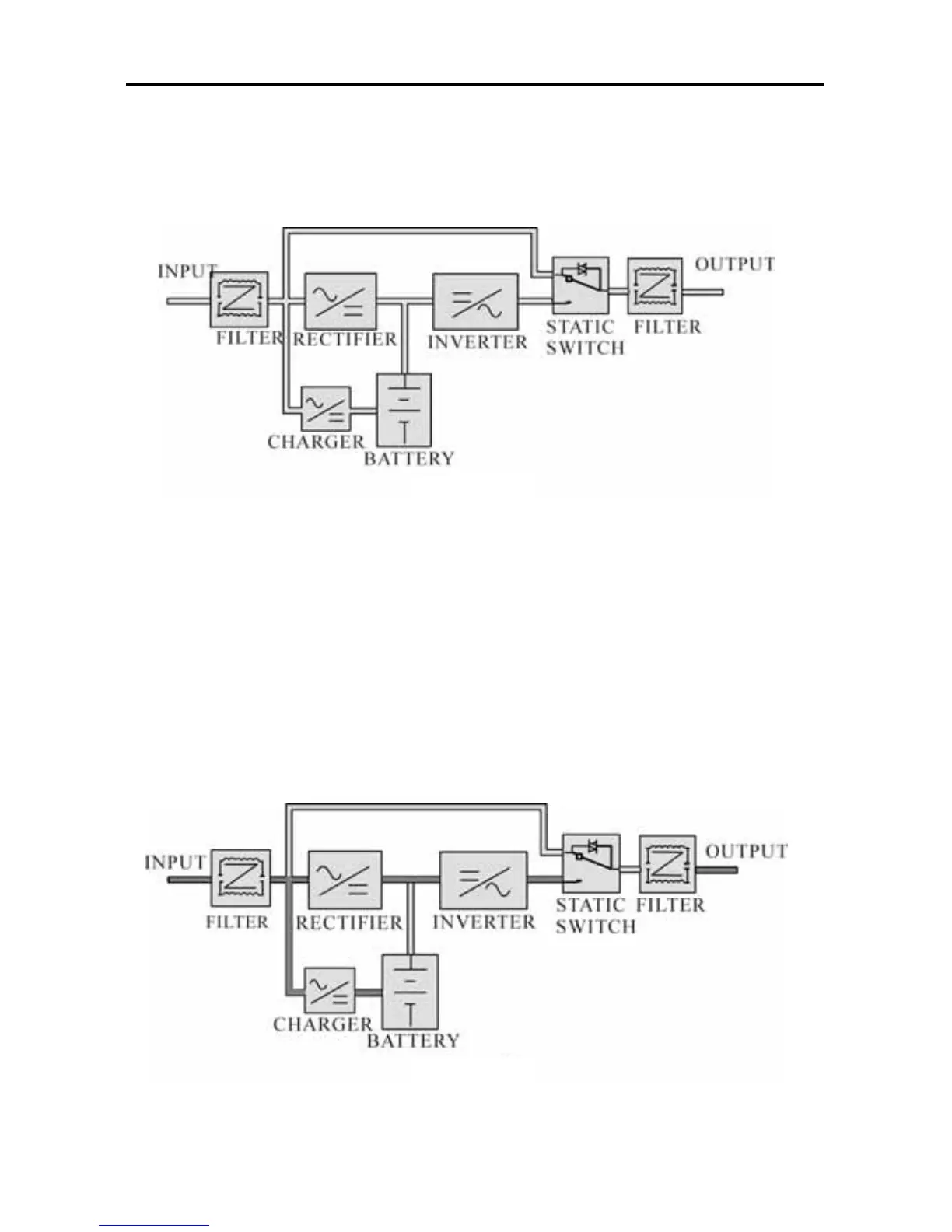

7.1 UPS system configuration block Figure: figure 32
7.2 UPS running way when UPS runs normally
When UPS runs normally, after high-frequency harmonic noise in utility
power is filtered by the filter, on one hand utility power charges battery pack
via the inverter and keeps battery power on full voltage level, on the other
hand utility power is converted into DC power via the rectifier and is
converted into pure sine wave power via the inverter, finally power is
transmitted to user equipment for using via the static switch and the filter.AT
Figure 33.
Figure 32
Figure 33
