PLACEMENT NOTES GP800 UPS
- 6 -
3 PLACEMENT NOTES
3.1 Transit or move
1. Please dismantle all barge connection firstly. (First turn off before
performing)
2. Place lightly and carefully, forbid to hit.
3. Please do not move UPS inverted.
3.2 Placement

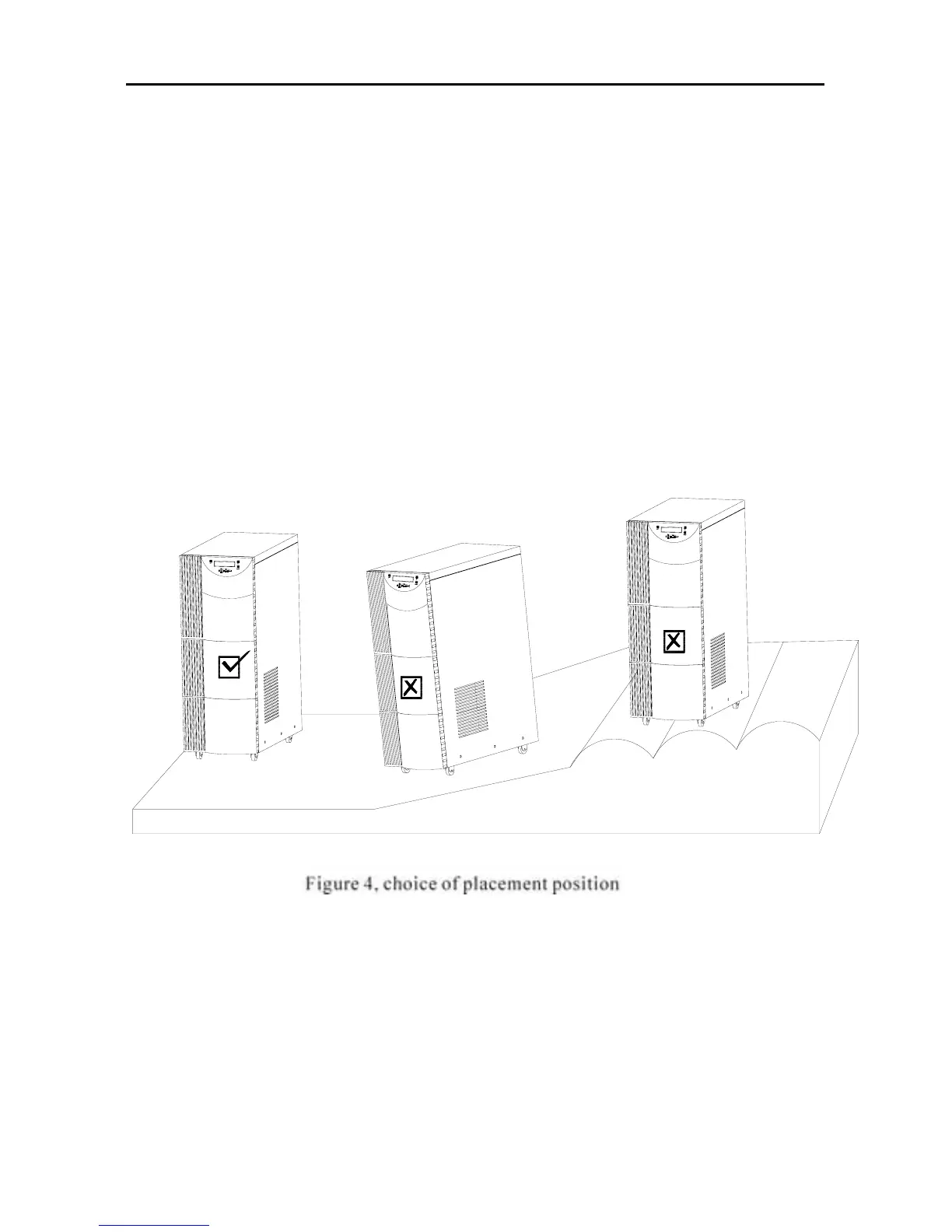

1. Do not place the UPS on the slope or scraggy land. (Figure 4)
2. Please place the UPS in the place where keeps good ventilation, rear
panel of UPS and two side faces should keep more than 10cm away
from the wall. (Figure 5)
3. Do not install UPS under sunlight, drain and damp place. (Figure 6,
7)
