7.3 UPS running way when utility disconnected
As figure 34, when utility disconnected, power is battery supplied to the
inverter then is sustention transmitted to user equipment for using via the
static switch and the filter to avoid power disturbance to load.
7.4 UPS running way when UPS runs on bypass mode
There are five kinds of status when UPS runs on bypass mode(Figure
35)
1. overload
2. inverter failure
3. when startup, UPS is in the course of slow startup during 20 seconds
by pressing the “SWITCH ON” button
4. When switch off, please press the “SWITCH OFF” button.
5. UPS runs under the condition of internal over-temperature.

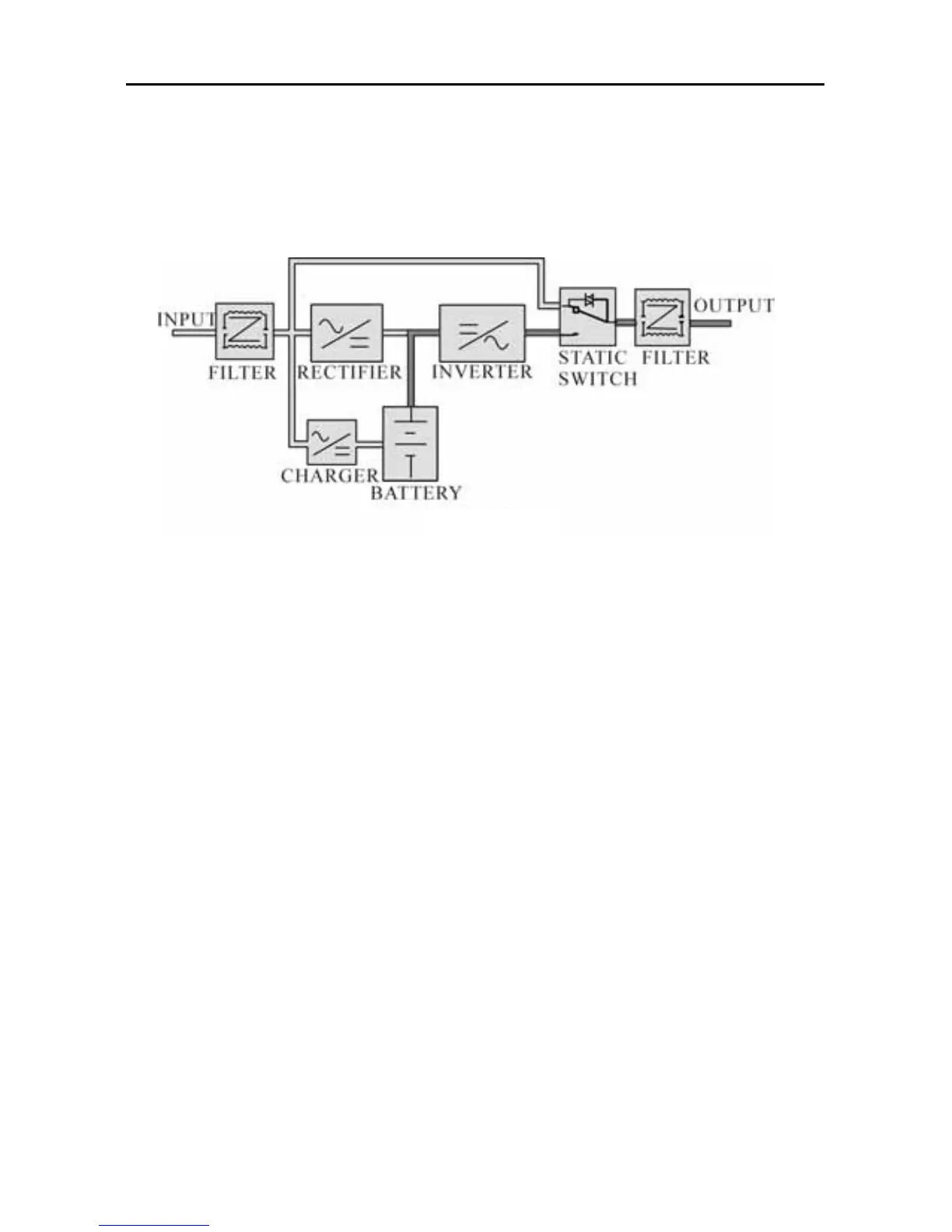

Figure 34
