13 SERVICE WORK ON THE CHASSIS 117
13.12 Checking/rectifying the fluid level of the hydraulic clutch
Info
The fluid level rises with increasing wear of the clutch lining disc.
Do not use brake fluid.
S00270-10

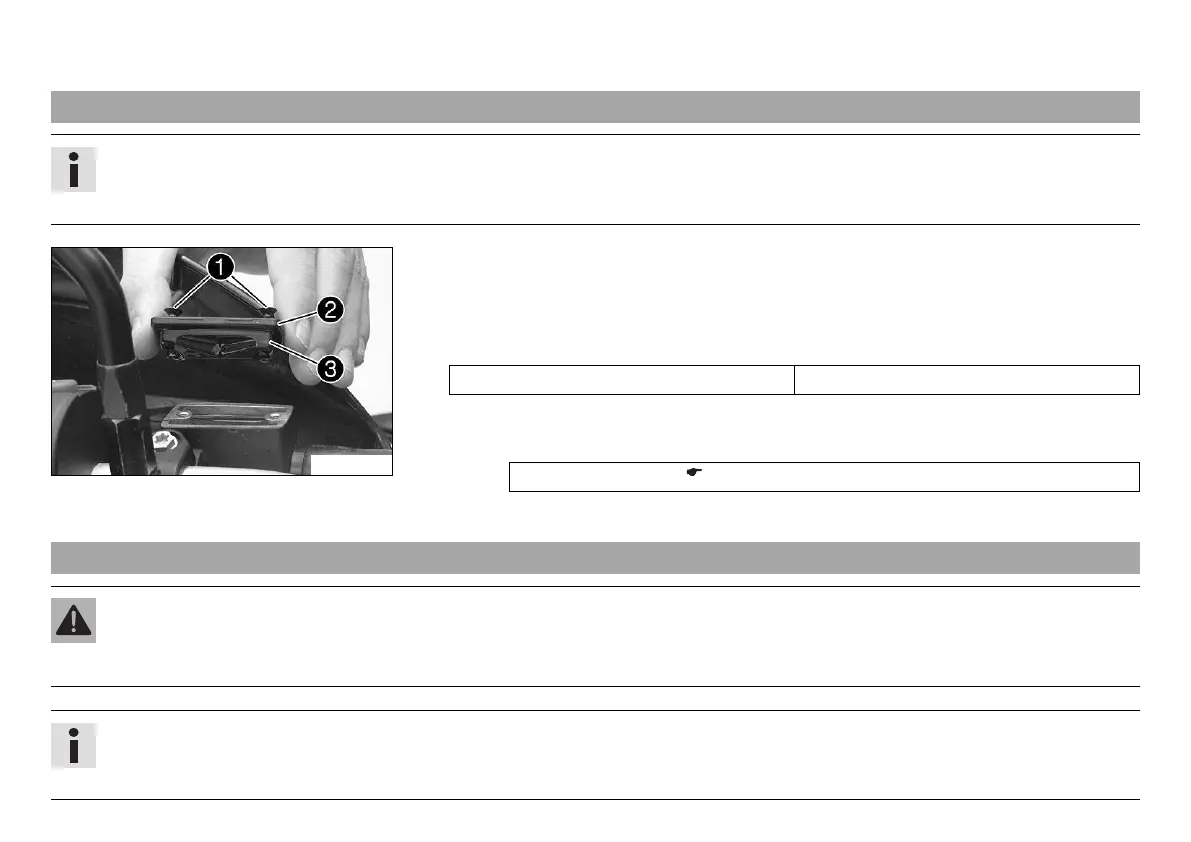

Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
Remove screws
.
Remove cover
with membrane
.
Check the fluid level.
Fluid level below top edge of container 4 mm (0.16 in)
» If the coolant level does not meet specifications:
Correct the fluid level of the hydraulic clutch.
Hydraulic fluid (15) ( p. 221)
Position the cover with the membrane. Mount and tighten the screws.
13.13 Checking the steering head bearing play
Warning
Danger of accidentsUnstable vehicle handling from incorrect steering head bearing play.
Adjust the steering head bearing play without delay. (Your authorized KTM workshop will be glad to help.)
Info
If the vehicle is operated for a lengthy period with play in the steering head bearing, the bearings and the bearing seats in the
frame can become damaged over time.
