16 ELECTRICAL SYSTEM
120
V02621-10

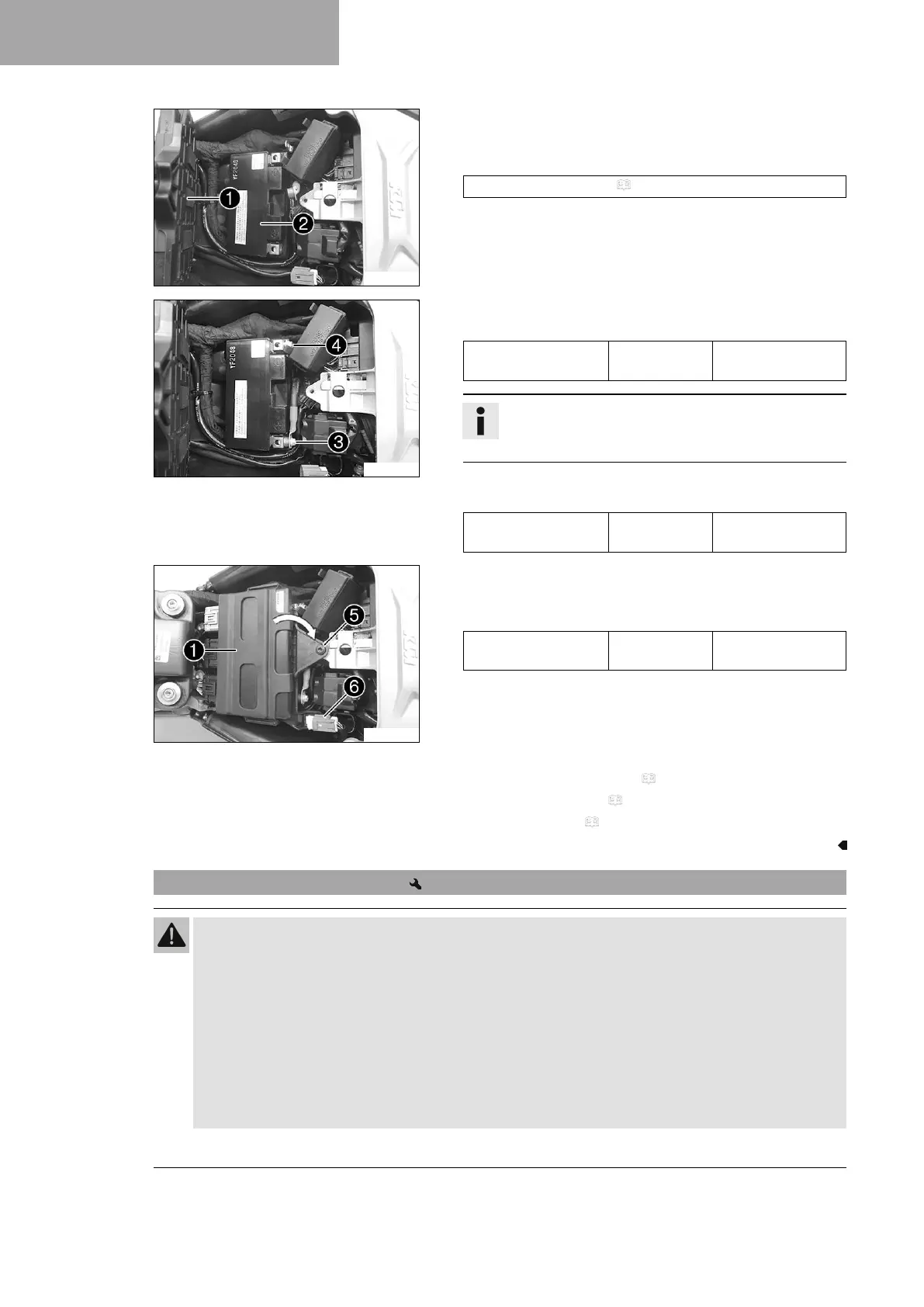

Main work
–
Fold up cover
1
.
–
Insert 12-V battery
2
into the battery compartment.
12-V battery (YTZ14S) ( p. 151)
V02620-11
–
Position positive cable
3
, mount and tighten the screw.
Guideline
Screw, battery termi-
nal
M6 4.5 Nm
(3.32 lbf ft)
Info
To prevent damage to the onboard electronics, first
connect the positive cable to the 12-V battery.
–
Position negative cable
4
and mount and tighten the screw.
Guideline
Screw, battery termi-
nal
M6 4.5 Nm
(3.32 lbf ft)
V02619-11
–
Fold down cover
1
.
–
Mount and tighten screw
5
.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
–
Position diagnostics connector
6
in the bracket.
Finishing work
– Mount the front rider's seat. ( p. 91)
– Mount passenger seat. ( p. 90)
– Set time and date. ( p. 63)
16.8 Charging the 12-V battery
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
– Keep 12 V batteries out of the reach of children.
– Wear suitable protective clothing and safety glasses.
– Avoid contact with battery acid and battery gases.
– Keep sparks or open flames away from the 12 V battery.
– Only charge 12 V batteries in well-ventilated rooms.
– Rinse the affected area immediately with plenty of water in the event of contact with the skin.
– Rinse eyes with water for at least 15 minutes and consult a doctor immediately if battery acid and
battery gases get into the eyes.
