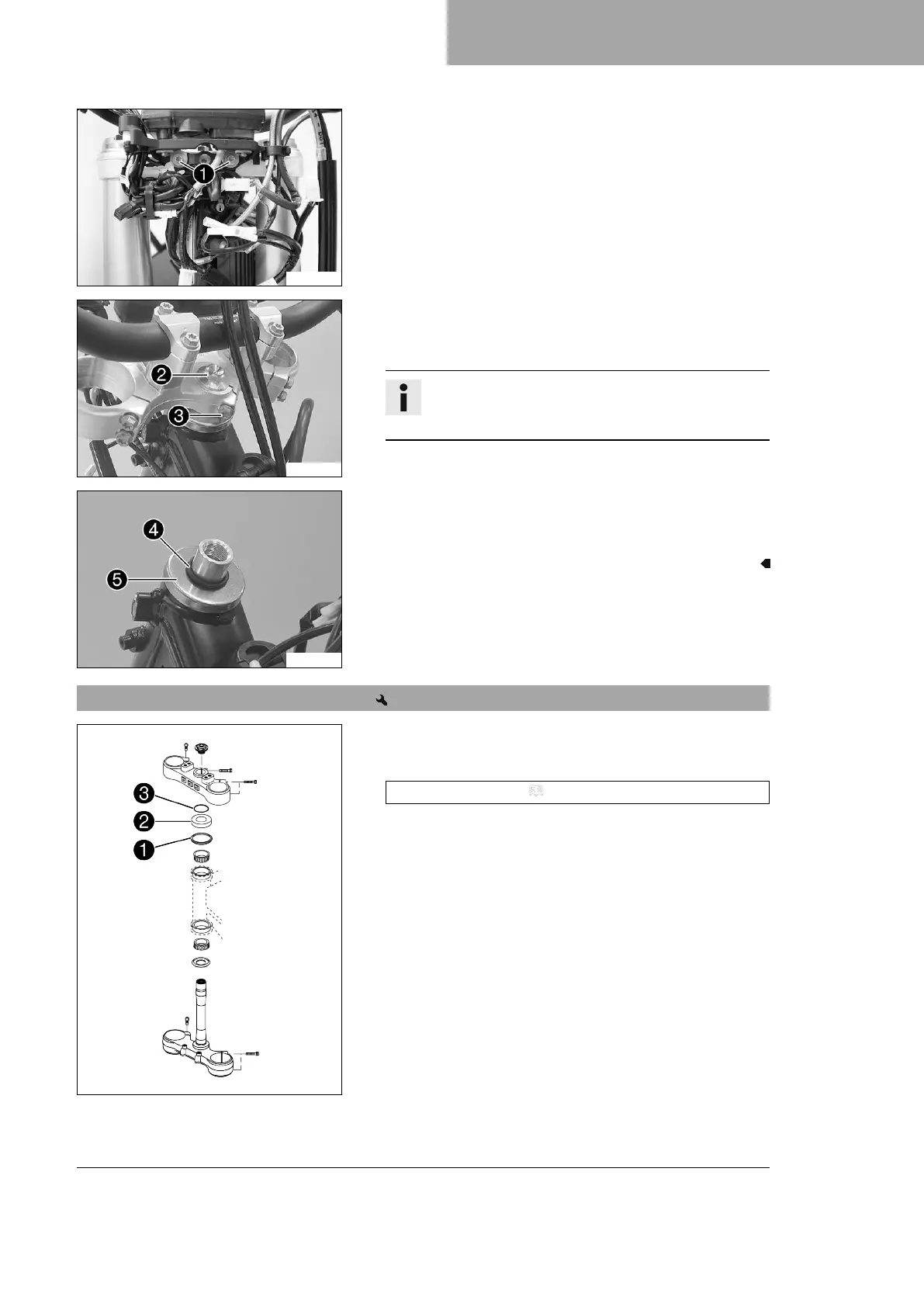

SERVICE WORK ON THE CHASSIS 12

S03514-10

Main work

–

Remove screws

and hang the combination instrument

holder to the side.

E00921-10

–

Remove screw

–

Loosen screw

. Take off the upper triple clamp with the

handlebar and hang them to the side.

Info

Cover the components to protect them against damage.

Do not kink the cables and lines.

E00922-10

–

Remove O-ring

. Remove protective ring

– Take off the lower triple clamp with the steering stem.

– Remove the upper steering head bearing.

12.10 Installing the lower triple clamp

V00359-10

Main work

– Clean the bearing and sealing elements, check for damage,

and grease.

High viscosity grease ( p. 165)

– Insert the lower triple clamp with the steering stem. Mount

upper steering head bearing.

–

Check whether upper steering head seal

is correctly posi-

tioned.

–

Mount protective ring

and O-ring
