KTM 250 XC 2017 User Manual

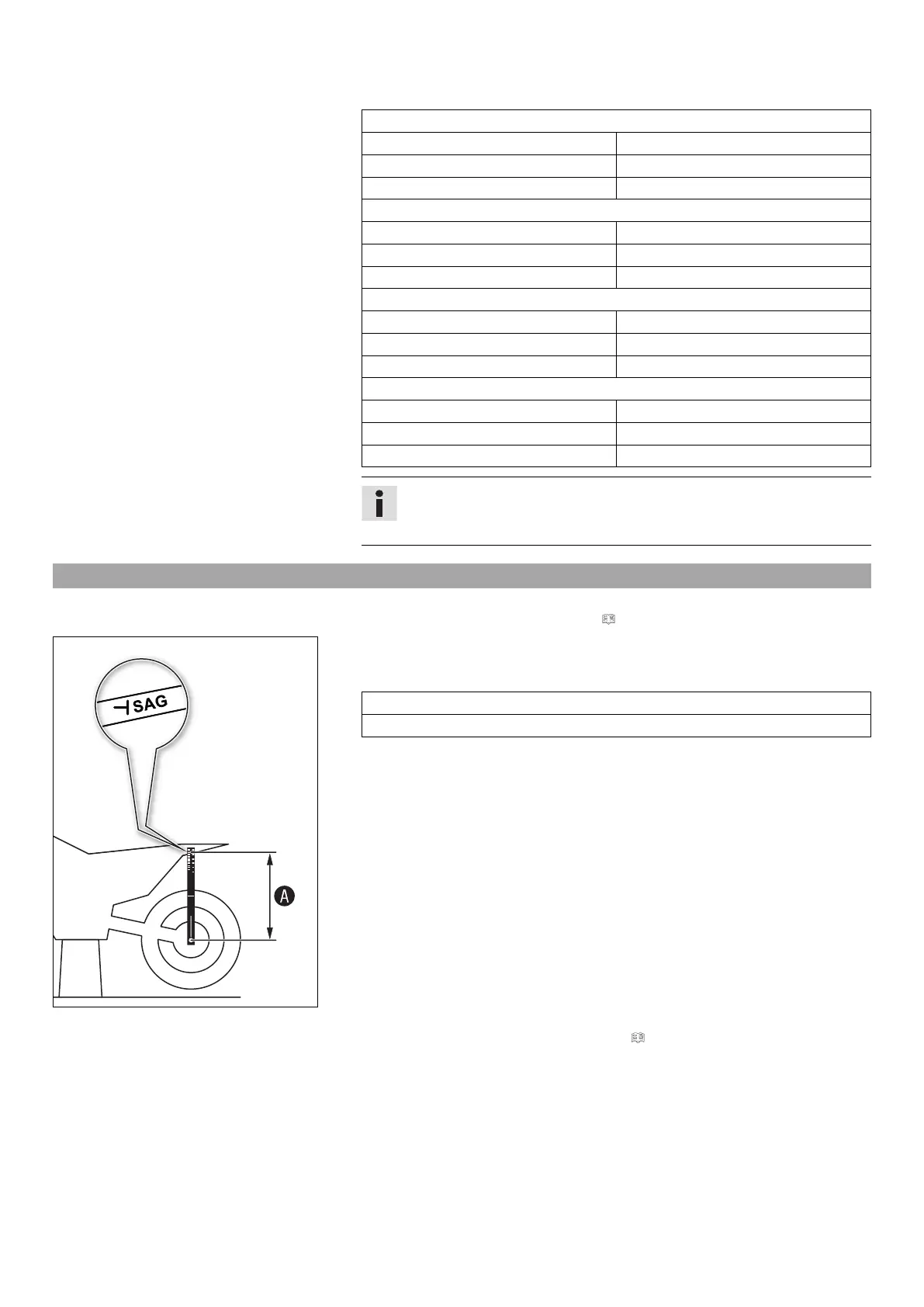

10 TUNING THE CHASSIS 34
Guideline
Rebound damping (All 125/150 models)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Rebound damping (250 SX EU)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Rebound damping (250 SX US)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Rebound damping (All XC models)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp-
ing.
10.7 Measuring the rear wheel dimension unloaded
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 42)
402415-10
Main work
– Position the sag gauge in the rear axle and measure the distance to marking SAG on
the rear fender.
Sag gauge (00029090000)
Pin for sag gauge (00029990010)
–
Note down the value as dimension

.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 42)

KTM 250 XC 2017 Specifications

General

Displacement	249 cm³
Bore x Stroke	66.4 mm x 72 mm
Transmission	6-speed
Fuel System	Keihin PWK 36S AG
Front Suspension	WP-USD, AER 48, Ø 48 mm
Rear Suspension	WP Xplor PDS shock absorber
Fuel Tank Capacity	9.5 liters
Ground Clearance	370 mm
Seat Height	960 mm
Ignition	Kokusan
Front Wheel Travel	300 mm
Rear Wheel Travel	300 mm
Engine Type	2-stroke
Front Brake	Disc brake
Rear Brake	Disc brake
Frame	Central-tube frame
