11 SERVICE WORK ON THE CHASSIS 49

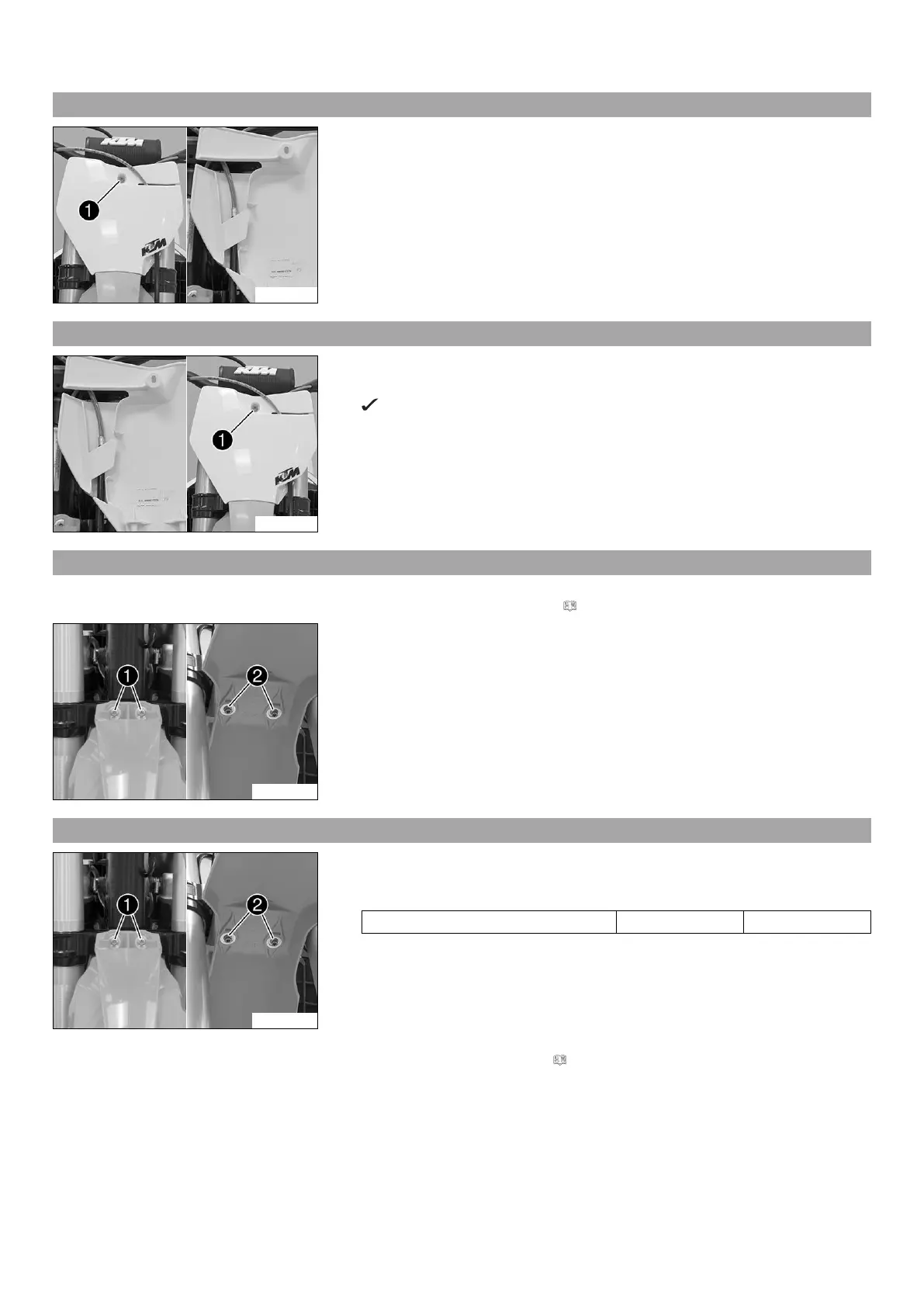

11.14 Removing the start number plate
F00012-10
–
Remove screw

.
– Disconnect the brake line at the start number plate. Take off the start number
plate.
11.15 Installing the start number plate
F00013-10
– Connect the brake line at the start number plate.
– Position the start number plate.
The holding lugs engage in the fender.
–
Mount and tighten screw

.
11.16 Removing the front fender
Preparatory work
– Remove the start number plate. ( p. 49)
M01144-10
Main work
–
Remove screws

and

. Remove the front fender.
11.17 Installing the front fender
M01144-10
Main work
–
Position the front fender. Mount and tighten screws

and

.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the start number plate. ( p. 49)

KTM 250 XC 2017 Specifications

General

Displacement	249 cm³
Bore x Stroke	66.4 mm x 72 mm
Transmission	6-speed
Fuel System	Keihin PWK 36S AG
Front Suspension	WP-USD, AER 48, Ø 48 mm
Rear Suspension	WP Xplor PDS shock absorber
Fuel Tank Capacity	9.5 liters
Ground Clearance	370 mm
Seat Height	960 mm
Ignition	Kokusan
Front Wheel Travel	300 mm
Rear Wheel Travel	300 mm
Engine Type	2-stroke
Front Brake	Disc brake
Rear Brake	Disc brake
Frame	Central-tube frame
