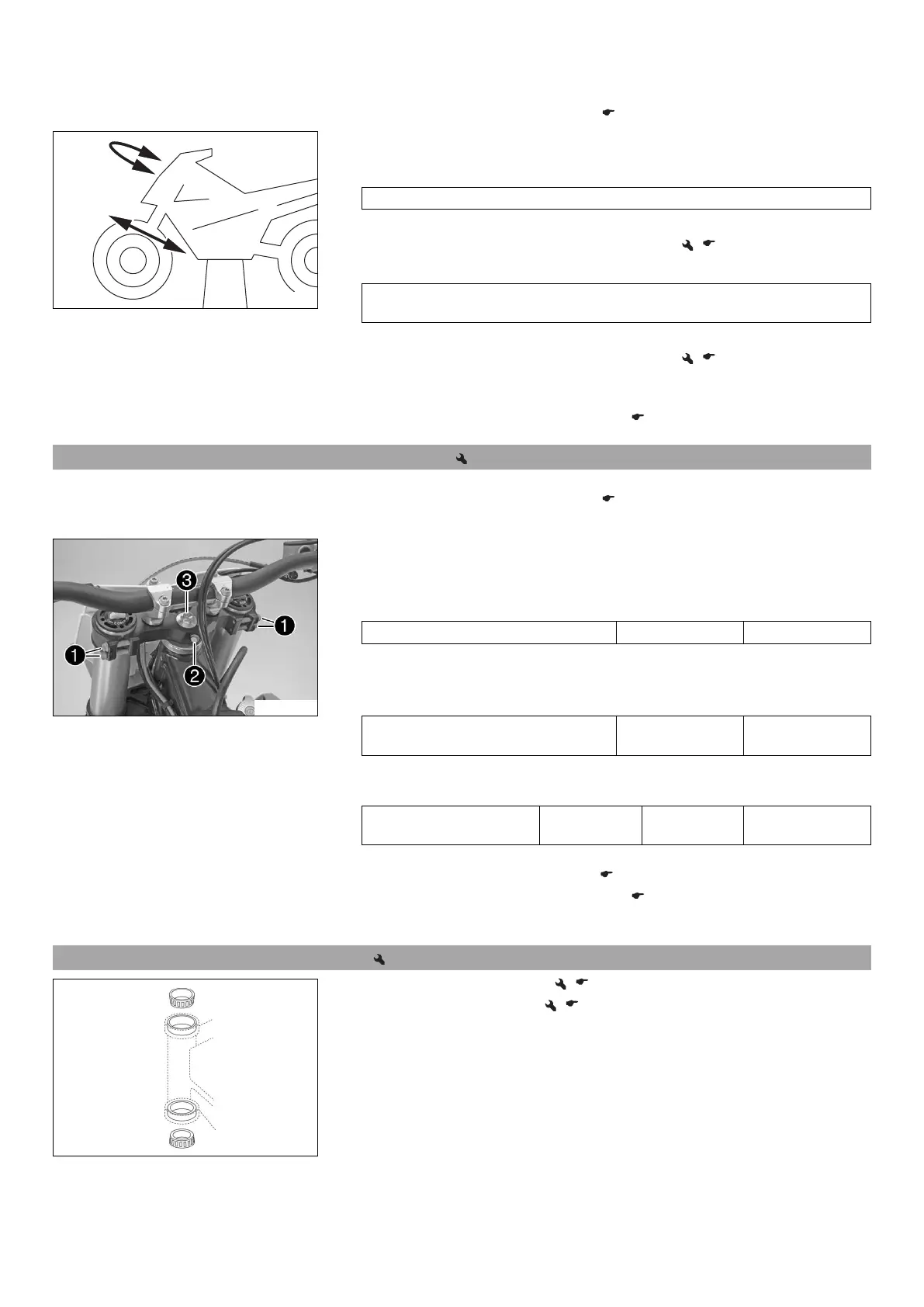

11 SERVICE WORK ON THE CHASSIS 43
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 37)
400738-11
Main work
– Move the handlebar to the straight-ahead position. Move the fork legs to and fro in
the direction of travel.
No play should be noticeable in the steering head bearing.
» If there is noticeable play present:
– Adjust the play of the steering head bearing. ( p. 43)
– Move the handlebar to and fro over the entire steering range.
The handlebar must be able to move easily over the entire steering range. No
resting locations should be noticeable.
» If click positions are noticeable:
– Adjust the play of the steering head bearing. ( p. 43)
– Check the steering head bearing and change if necessary.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 37)
11.12 Adjusting the play of the steering head bearing
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 37)
– Remove the handlebar cushion.
102159-10
Main work
–
Loosen screws
. Remove screw
.
–
Loosen and retighten screw
.
Guideline
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft)
– Using a plastic hammer, tap lightly on the upper triple clamp to avoid strains.
–
Fully tighten screws
.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
–
Mount and tighten screw
.
Guideline
Screw, top steering stem M8 20 Nm
(14.8 lbf ft)
Loctite
®
243™
Finishing work
– Check the steering head bearing play. ( p. 42)
– Remove the motorcycle from the lift stand. ( p. 37)
– Mount the handlebar cushion.
11.13 Greasing the steering head bearing
800010-10
– Remove the lower triple clamp. ( p. 40)
– Install the lower triple clamp. ( p. 41)
