ELECTRICAL SYSTEM 15
119
S04888-10
–

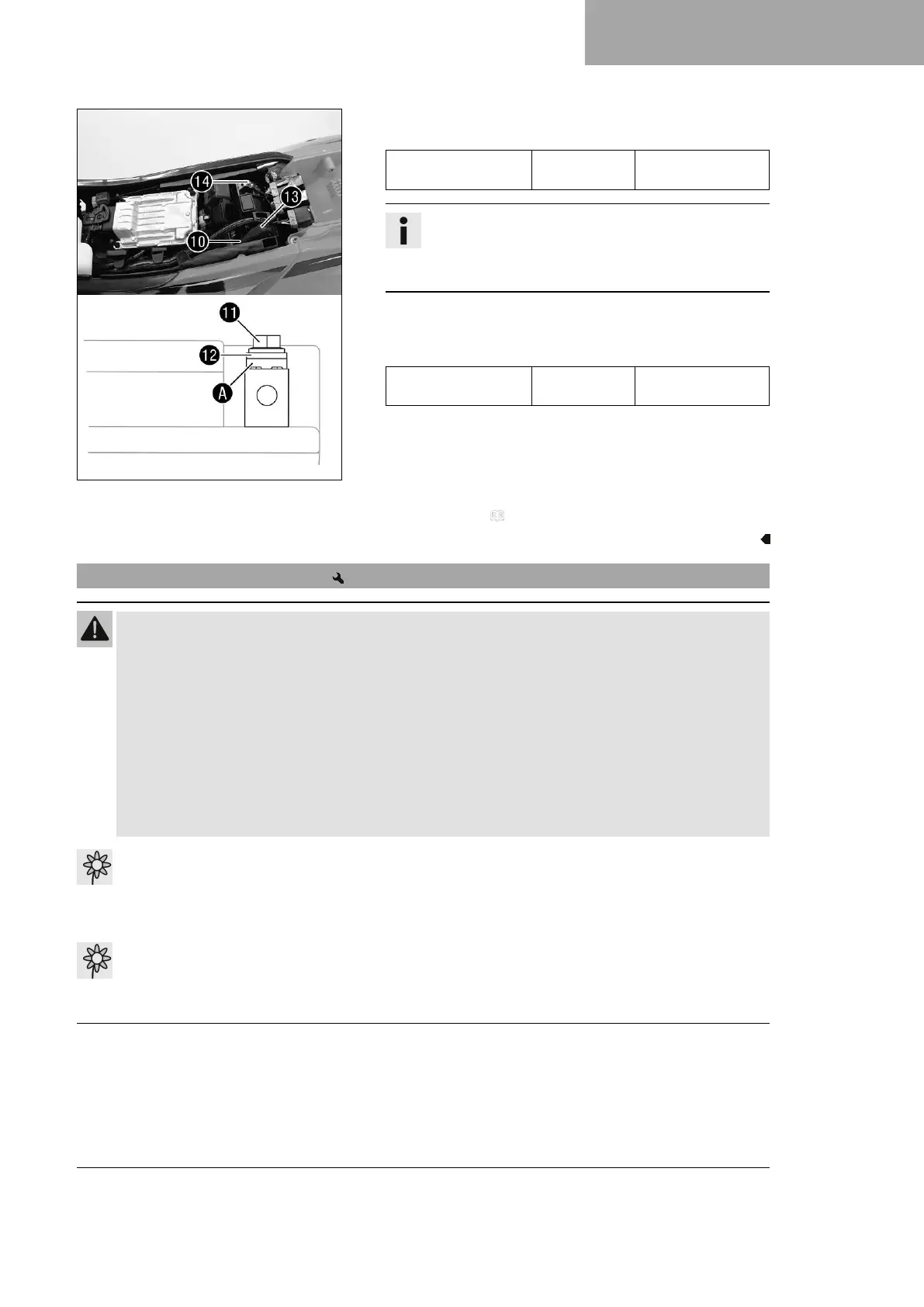

Connect positive cable
bk
to the 12-V battery.
Guideline
Screw, battery termi-
nal
M5 2.5 Nm
(1.84 lbf ft)
Info
Contact disk
A
must be mounted under screw
bl
and
cable lug
bm
with the claws toward the battery termi-
nal.
–
Slide positive terminal cover
bn
over the positive terminal.
–
Connect negative cable
bo
to the 12-V battery.
Guideline
Screw, battery termi-
nal
M5 2.5 Nm
(1.84 lbf ft)
Finishing work
– Mount the seat. ( p. 78)
15.3 Charging the 12-V battery
Warning
Risk of injury 12 V batteries contain harmful substances.
– Keep 12 V batteries out of the reach of children.
– Keep sparks and open flames away from 12 V batteries.
– Only charge 12 V batteries in well-ventilated rooms.
– Maintain a minimum clearance from inflammable materials when charging 12 V batteries.
Minimum clearance 1 m (3 ft)
– Do not charge deeply discharged 12 V batteries if the charge is already below the minimum voltage.
Minimum voltage before the start of the charge 9 V
– Dispose of 12 V batteries with less than the minimum voltage correctly.
Note
Environmental hazard 12 V batteries contain environmentally hazardous materials.
– Do not dispose of 12 V batteries as household waste.
– Dispose of 12 V batteries at a collection point for used batteries.
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
