15.4 Changing main fuse
Warning
Fire hazard Incorrect fuses overload the electrical system.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
Info
The main fuse protects all electrical power consumers of the vehicle.

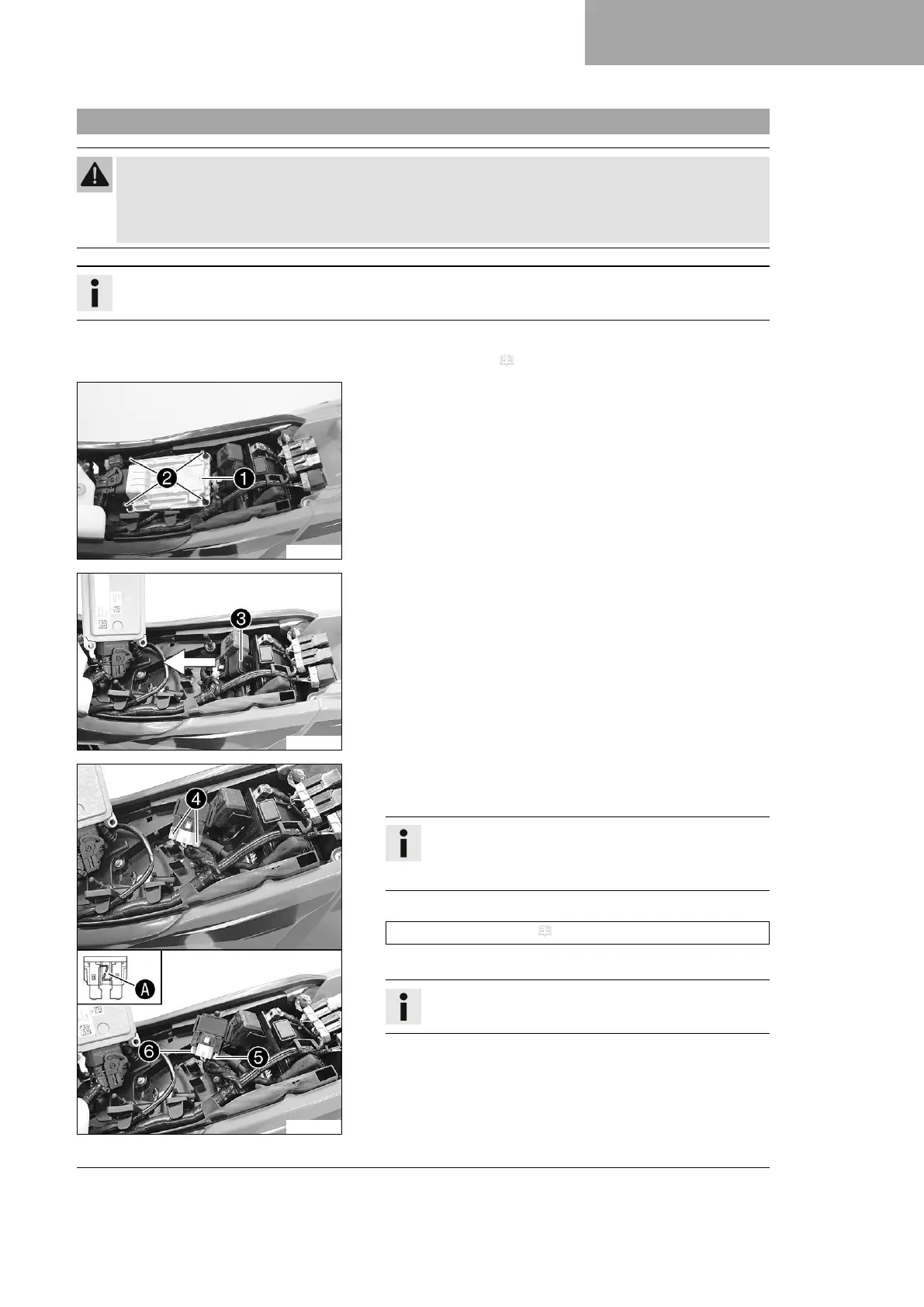

Preparatory work
– Remove the seat. ( p. 78)
S04883-11
Main work
–
Pull EFI control unit
1
upward off the rubber lugs
2
and
hang to the side.
S04889-10
–
Pull starter relay
3
from the holder.
S04892-10
–
Take off protection caps
4
.
–
Remove faulty main fuse
5
.
Info
A faulty fuse has a burned-out fuse wire
A
.
A spare fuse
6
is located in the starter relay.
– Insert a new main fuse.
Fuse (58011109120) ( p. 163)
– Check that the electrical system is functioning properly.
Tip
Insert a spare fuse so that it is available if needed.
–
Attach the protection caps
4
.
–
Mount starter relay
3
onto the holder and route the cable.
