18 SERVICE WORK ON THE ENGINE
144
S04854-11
–

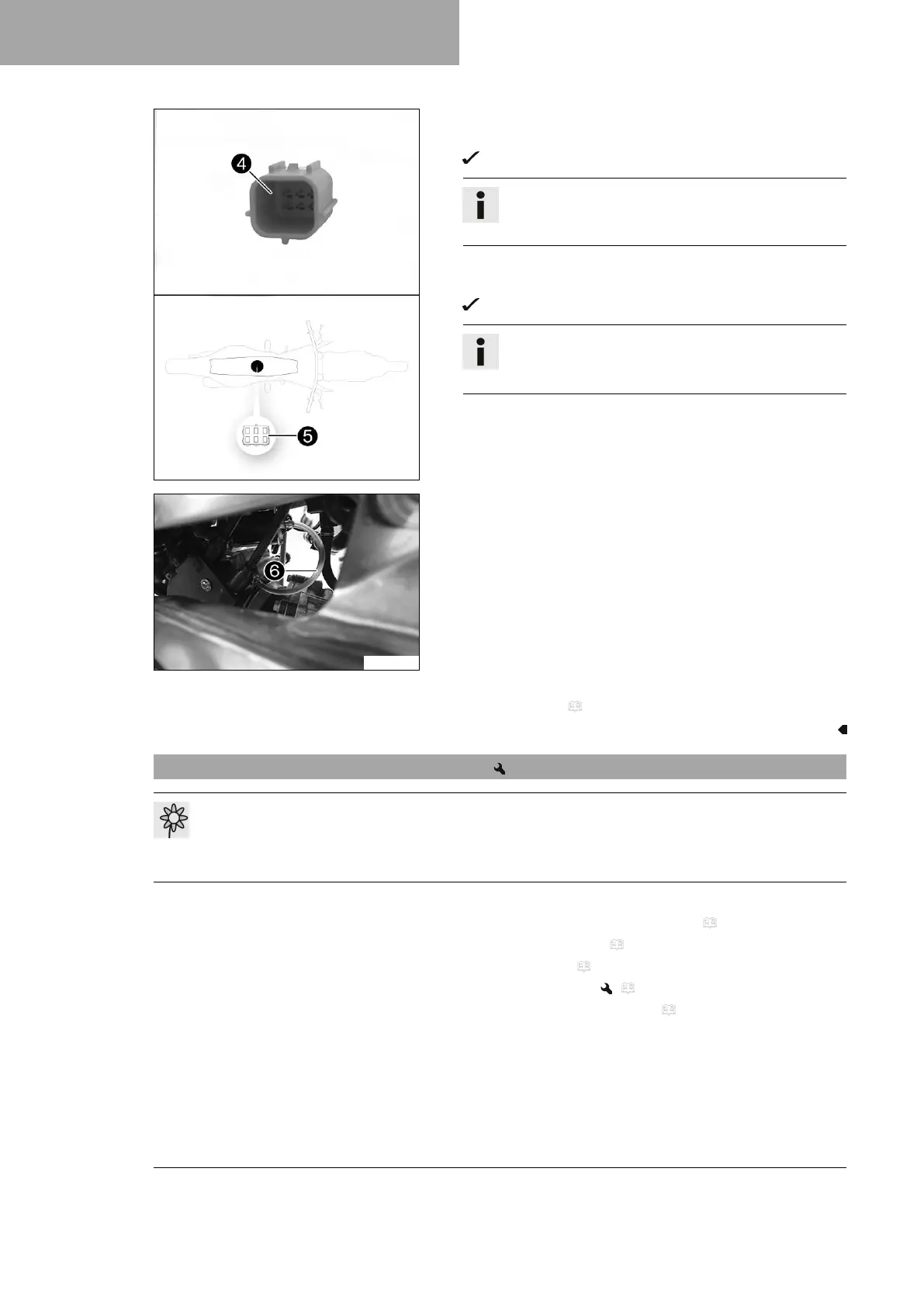

Plug in wake-up connector
4
for priming the oil pump to the
diagnostics connector
5
.
The combination instrument lighting is activated.
Info
The connector is included as part of the motorcycle's
separate enclosure.
– Wait for at least five seconds.
– Release the fixing means from the throttle grip.
The oil pump is timed.
Info
The oil pump is actuated at various speeds.
The procedure is clearly audible.
– Wait until you can no longer hear the oil pump operating.
– Disconnect the wake-up connector from the diagnostics con-
nector.
S03513-10
–
Check whether air bubbles are visible in the hose
6
.
» If air bubbles are visible:
– Repeat the entire procedure until air bubbles are no
longer visible.
– Mount the diagnostics connector on the holder.
– Mount the EFI control unit on the rubber lugs.
Finishing work
– Mount the seat. ( p. 78)
18.4 Cleaning the oil screen in the oil tank
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 64)
– Remove main silencer. ( p. 82)
– Remove the seat. ( p. 78)
– Remove the fuel tank. ( p. 83)
– Remove the air filter box cover. ( p. 79)
