12 SERVICE WORK ON THE CHASSIS 81

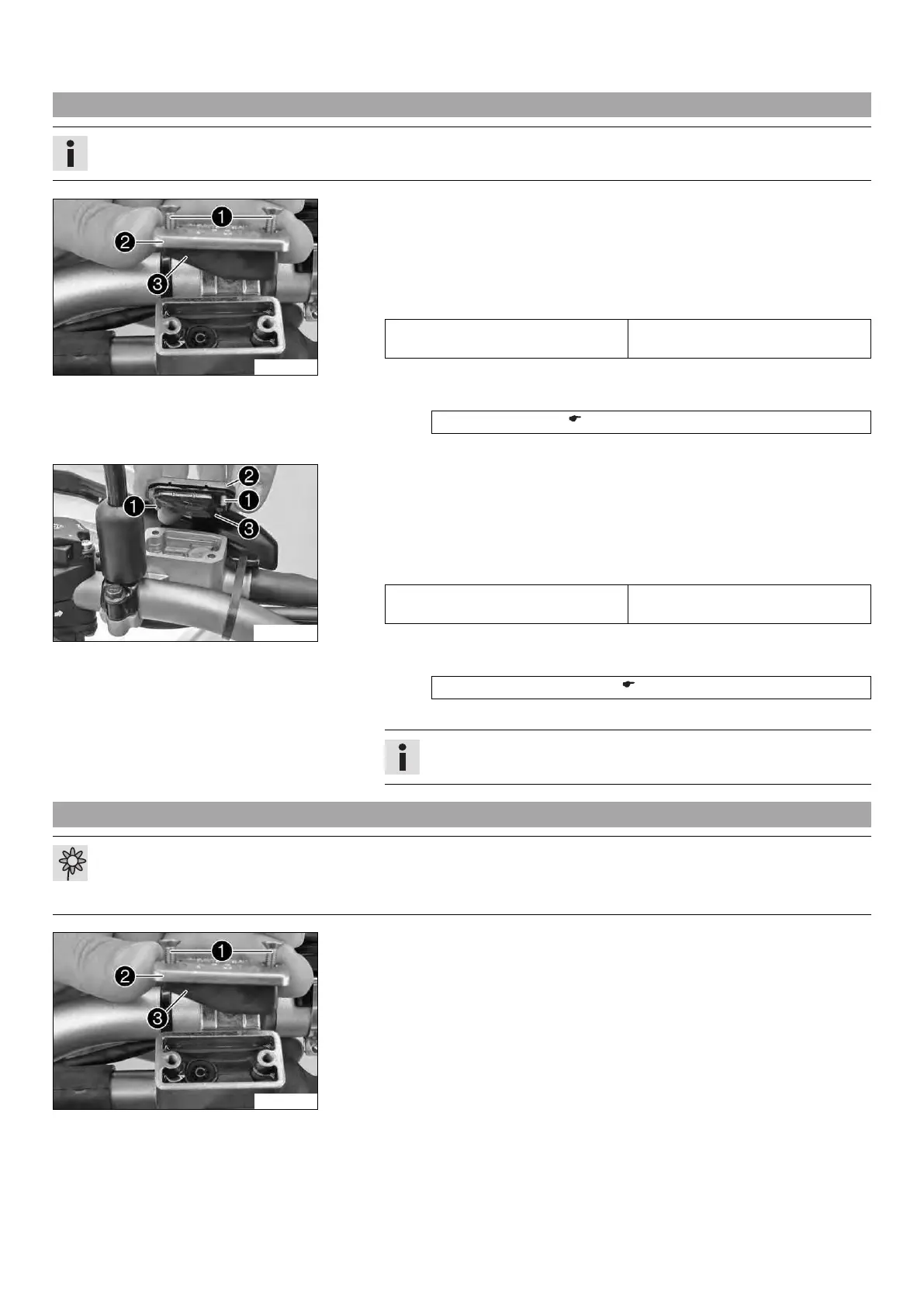

12.46 Checking/correcting the fluid level of the hydraulic clutch
Info
The fluid level rises with increasing wear of the clutch lining discs.
400245-10
(All 125/200 models)
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal posi-
tion.
– Remove screws 1.
– Remove cover 2 with membrane 3.
– Check the fluid level.
Fluid level under top edge of con-
tainer
4 mm (0.16 in)
» If the level of the fluid does not meet specifications:
– Correct the fluid level of the hydraulic clutch.
Hydraulic fluid (15) ( p. 141)
– Position the cover with the membrane. Mount and tighten the screws.
B01538-10
(All 250/300 models)
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal posi-
tion.
– Remove screws 1.
– Remove cover 2 with membrane 3.
– Check the fluid level.
Fluid level under top edge of con-
tainer
4 mm (0.16 in)
» If the level of the fluid does not meet specifications:
– Correct the fluid level of the hydraulic clutch.
Brake fluid DOT 4 / DOT 5.1 ( p. 140)
– Position the cover with the membrane. Mount and tighten the screws.
Info
Wash off overflowed or spilled brake fluid immediately with water.
12.47 Changing the hydraulic clutch fluid x
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
400245-10
(All 125/200 models)
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal posi-
tion.
– Remove screws 1.
– Remove cover 2 with membrane 3.
