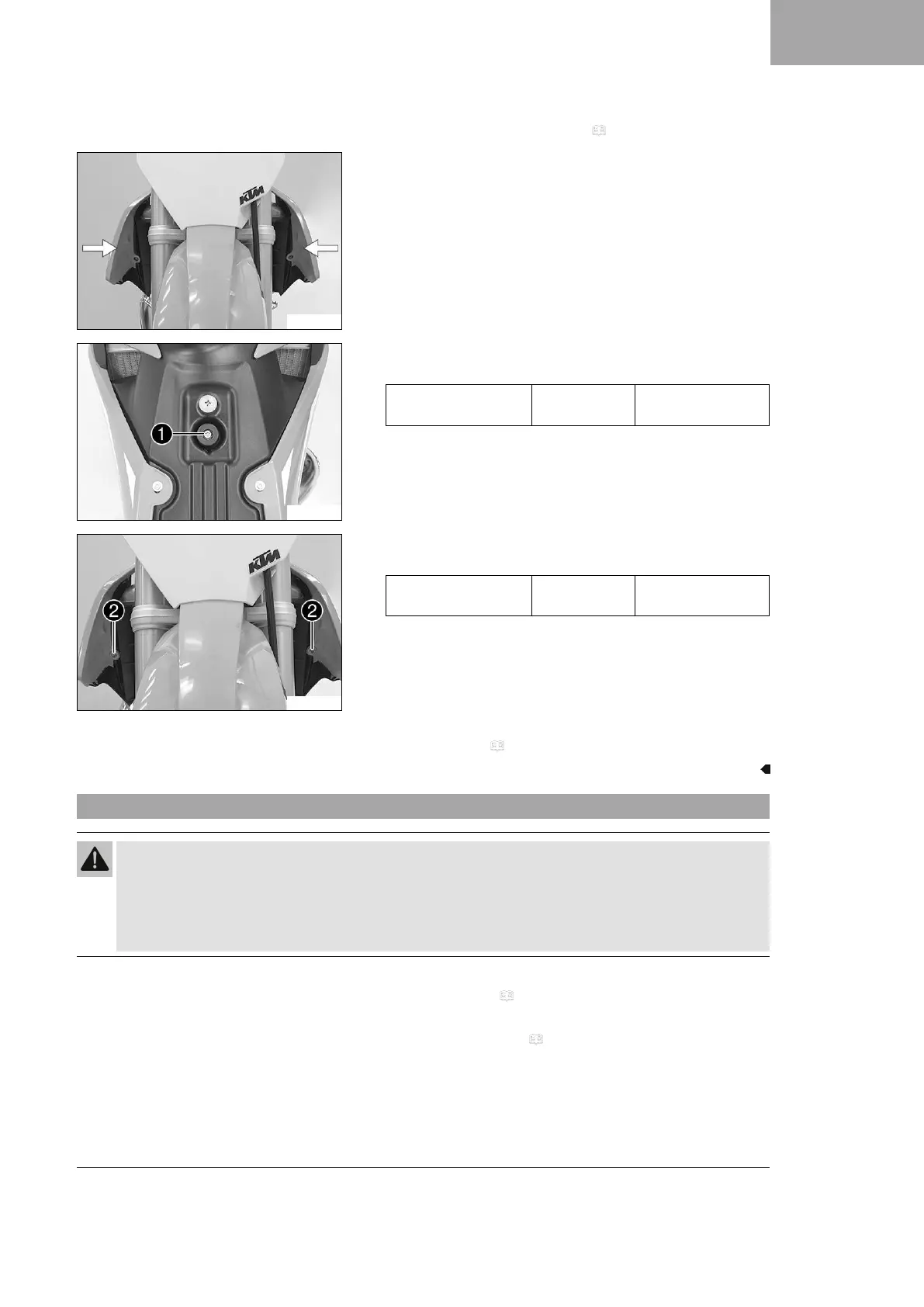

Main work
– Check the throttle cable routing. ( p. 11)
V00844-11
– Position the fuel tank and fit the two spoilers to the sides of
the radiator mount.
– Make sure that no cables or throttle cables are trapped or dam-
aged.
V00843-11
–
Mount and tighten screw
1
with the rubber bushing.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
V00842-11
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Mount fuel hose.
–
Position the fuel tank breather in the steering stem.
Finishing work
– Mount the seat. ( p. 9)
3.10 Checking the throttle cable routing
Warning
Danger of accidents The throttle cable may slip out of the guide if routed incorrectly.
The throttle slide will then no longer be closed and the speed can no longer be controlled.
– Make sure that the throttle cable routing and the play in throttle cable complies with the specifica-
tion.
Preparatory work
– Remove the seat. ( p. 8)
– Turn tap handle of the fuel tap to the OFF position.
–
Remove the fuel tank. ( p. 9)
