Mount and tighten screw
1
.
Guideline
Screw, seat fixing M6 8 Nm (5.9 lbf ft)

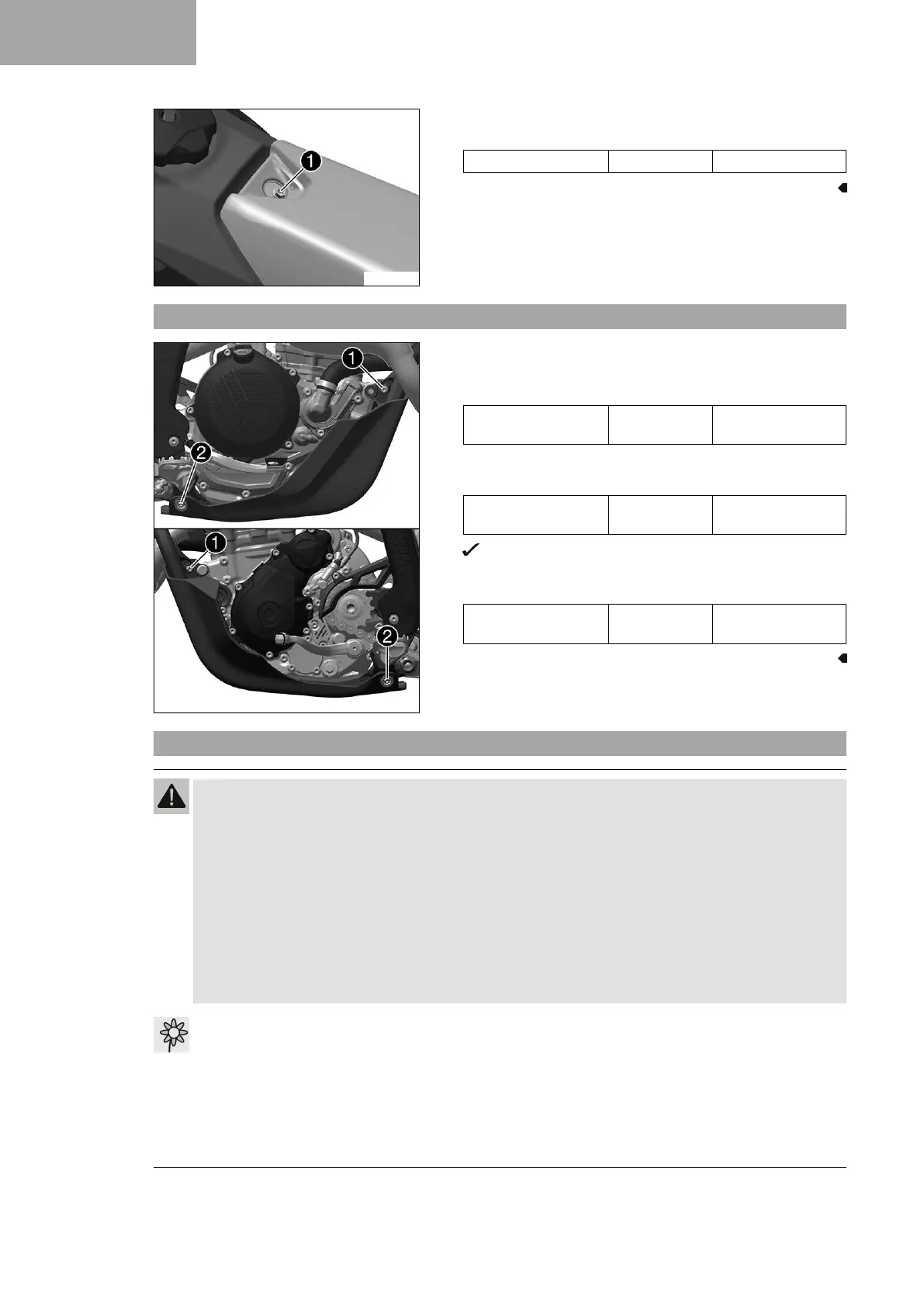

3.10 Installing the engine guard (All XC‑F models)
F03638-11
–
Position the engine guard on the frame.
–
Mount screws
1
, but do not tighten yet.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
–
Mount screws
2
with bushings, but do not tighten yet.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
The engine guard is directed evenly toward the front.
– Tighten all the screws of the engine guard.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
3.11 Charging the 12-V battery
Warning
Risk of injury 12 V batteries contain harmful substances.
– Keep 12 V batteries out of the reach of children.
– Keep sparks and open flames away from 12 V batteries.
– Only charge 12 V batteries in well-ventilated rooms.
– Maintain a minimum clearance from inflammable materials when charging 12 V batteries.
Minimum clearance 1 m (3 ft)
– Do not charge deeply discharged 12 V batteries if the charge is already below the minimum voltage.
Minimum voltage before the start of the charge 9 V
– Dispose of 12 V batteries correctly if they have less than the minimum voltage.
Note
Environmental hazard 12 V batteries contain environmentally hazardous materials.
– Do not dispose of 12 V batteries as household waste.
– Dispose of 12 V batteries at a collection point for used batteries.
