CONTROLS 6
15

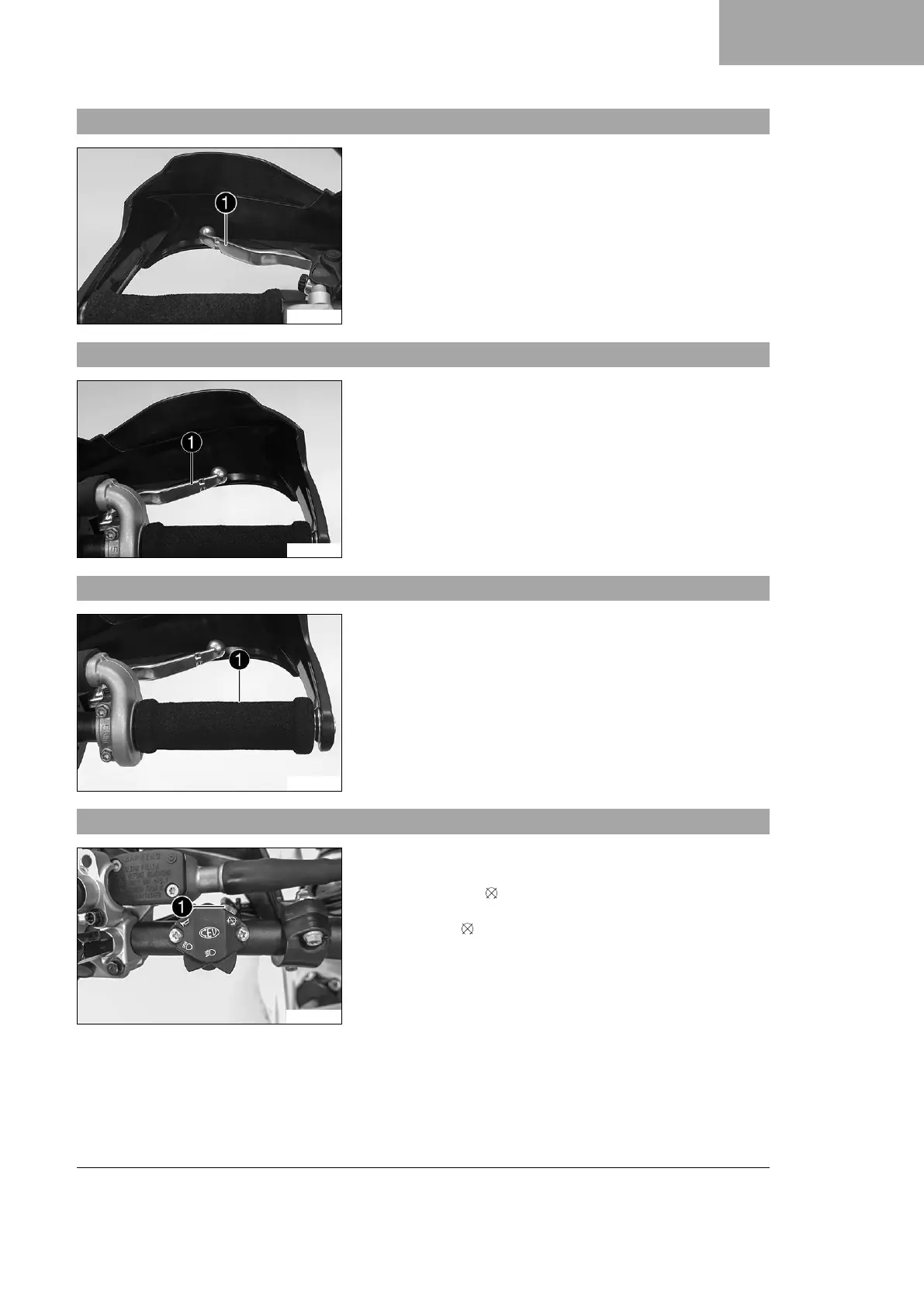

6.1 Clutch lever
L03000-10
The clutch lever
1
is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
6.2 Hand brake lever
L03001-10
The hand brake lever
1
is fitted on the right side of the handle-
bar.
The hand brake lever operates the front brake.
6.3 Throttle grip
L03002-10
The throttle grip
1
is fitted on the right side of the handlebar.
6.4 Stop button
A00447-10
The stop button
1
is fitted on the left side of the handlebar.
Possible states
• The stop button is in the basic position – In this position,
the ignition circuit is closed and the engine can be started.
• Stop button pressed – In this position, the ignition circuit
is interrupted, a running engine stops, and a non-running
engine will not start.
