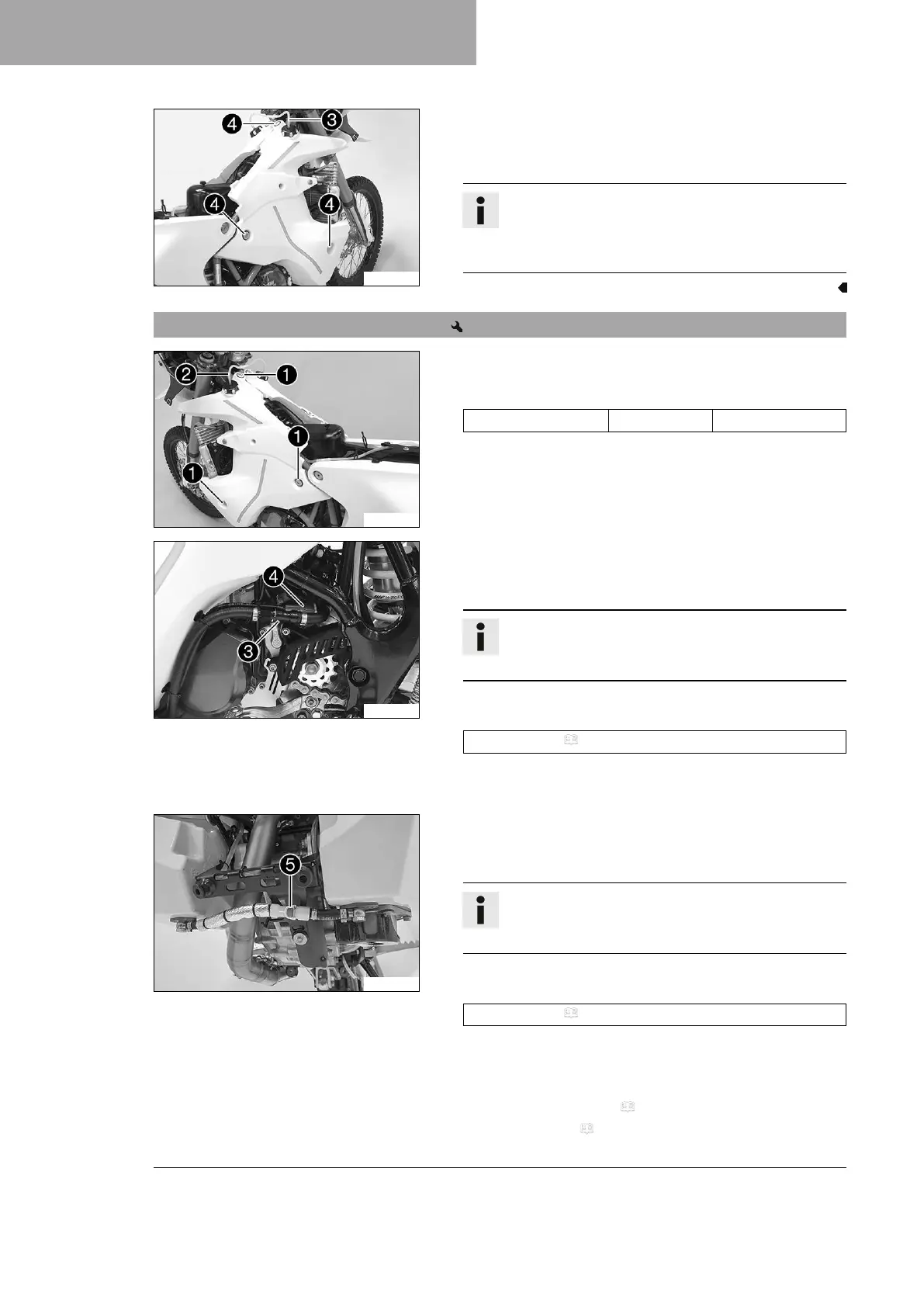

12 SERVICE WORK ON THE CHASSIS
74
A00745-11
–
Pull off fuel tank breather hose
3
.
–
Remove screws
4
.
– Take off the fuel tank.
Info
Set the fuel tank down in an upright position as other-
wise fuel can escape from the fuel tank breather at the
fuel tank filler cap.
12.30 Installing the front left fuel tank
A00744-11
Main work
–
Position fuel tank, and mount and tighten screws
1
.
Guideline
Screw, front fuel tank M8 8 Nm (5.9 lbf ft)
–
Mount fuel tank breather hose
2
.
F02404-10
– Remove the wash cap set.
–
Clean quick release coupling
3
thoroughly with compressed
air.
Info
Under no circumstances should dirt enter into the fuel
line. Dirt in the fuel line clogs the injection valve!
– Spray silicone spray onto a lint-free cleaning cloth and lightly
lubricate the O-ring of the quick-release coupling.
Silicone spray ( p. 166)
–
Join quick release coupling
3
.
–
Join the plug-in connector of fuel pump
4
.
A00478-11
– Remove the wash cap set.
–
Clean quick release coupling
5
thoroughly with compressed
air.
Info
Under no circumstances should dirt enter into the fuel
line. Dirt in the fuel line clogs the injection valve!
– Spray silicone spray onto a lint-free cleaning cloth and lightly
lubricate the O-ring of the quick-release coupling.
Silicone spray ( p. 166)
–
Join quick release coupling
5
.
– Position the fuel line in the holder.
Finishing work
– Install the engine guard. ( p. 89)
– Mount side cover. ( p. 87)
