11 TUNING THE CHASSIS
52
402496-10
–
Take off protection caps
1
.
–
Turn adjusting screws
2
clockwise all the way.
Info
Adjusting screws
2
are located at the bottom end of
the fork legs.
Make the same adjustment on both fork legs.
– Turn counterclockwise by the number of clicks corresponding
to the fork type.
Guideline
Rebound damping
Standard 15 clicks
Info
Turn clockwise to increase the damping; turn counter-
clockwise to reduce damping when the shock absorber
rebounds.
–
Mount protection caps
1
.
11.14 Handlebar position
F02396-10

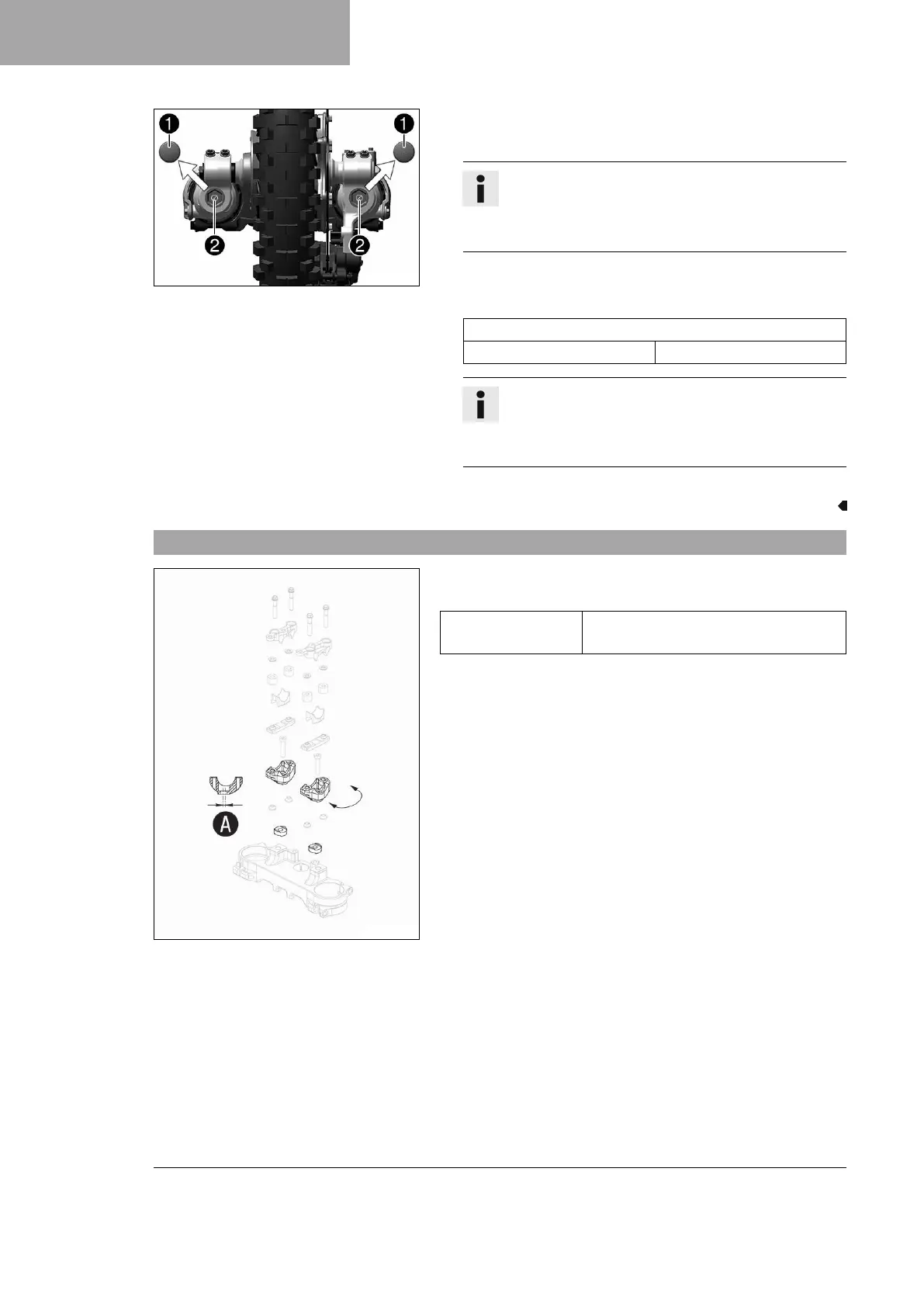

The holes on the handlebar holders are placed at a distance of
A
from the center.
Distance
A
between holes
3.5 mm (0.138 in)
The handlebar supports can be turned by 180°. In this way, the
handlebar can be mounted in the position that is most comfortable
for the rider.
The handlebar supports can also be mounted at two different
heights (with and without a spacer).
