KTM 500 EXC AUS User Manual

7 SPEEDOMETER 29

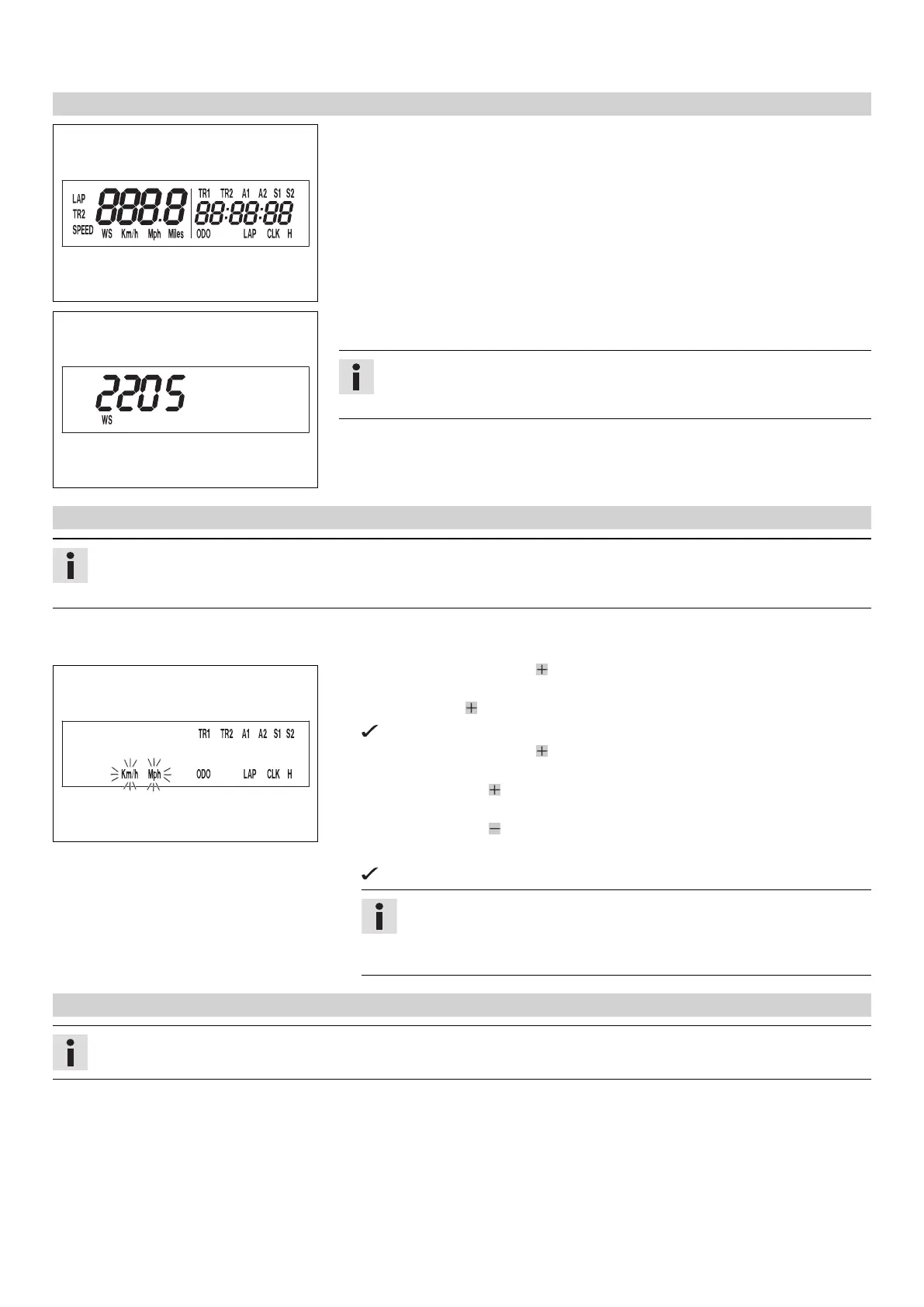

7.2.2 Activation and test
400313-01
Activating the speedometer
The speedometer is activated when one of the buttons is pressed or an impulse comes
from the wheel speed sensor.
Display test
To enable you to check that the display is functioning properly, all display segments
light up briefly.
400314-01
WS (wheel size)
After the display function check, the wheel size WS is displayed briefly.
Info
The number 2205 equals the circumference of the 21" front wheel with stan-
dard tires.
The display then changes to the last selected mode.
7.2.3 Setting kilometers or miles
Info
If you change the unit, the value ODO is retained and converted accordingly.
The values TR1, TR2, A1, A2 and S1 are cleared when the unit of measure is changed.
Condition
The motorcycle is stationary.
400329-01
– Repeatedly press the button briefly until H appears at the bottom right of the
display.
– Press the button for 2–3 seconds.
The Setup menu is displayed and the active functions are shown.
– Repeatedly press the button briefly until Km/h/Mph flashes.
Setting the Km/h
– Press the button .
Setting the Mph
– Press the button .
– Wait 3–5 seconds
The settings are stored.
Info
If no button is actuated for 10–12 seconds or there is no signal from the
wheel speed sensor, then the settings are automatically stored and the
Setup menu is closed.
7.2.4 Setting the speedometer functions
Info
When the vehicle is delivered, only the SPEED/H and SPEED/ODO display modes are activated.
Condition
The motorcycle is stationary.

KTM 500 EXC AUS Specifications

General

Bore x Stroke	95 mm x 72 mm
Transmission	6-speed
Seat Height	960 mm
Starter	Electric starter
Ground Clearance	355 mm
Cooling System	Liquid cooled
Rear Suspension	WP Xplor PDS shock absorber
Rear Brake	Disc brake
Engine Type	1-cylinder, 4-stroke engine
Power	Not available
Torque	Not available
Fuel System	Electronic fuel injection (Keihin EMS)
Front Suspension	WP Xplor 48 upside-down fork
Frame	Central double-cradle type 25CrMo4 steel
ABS	No
