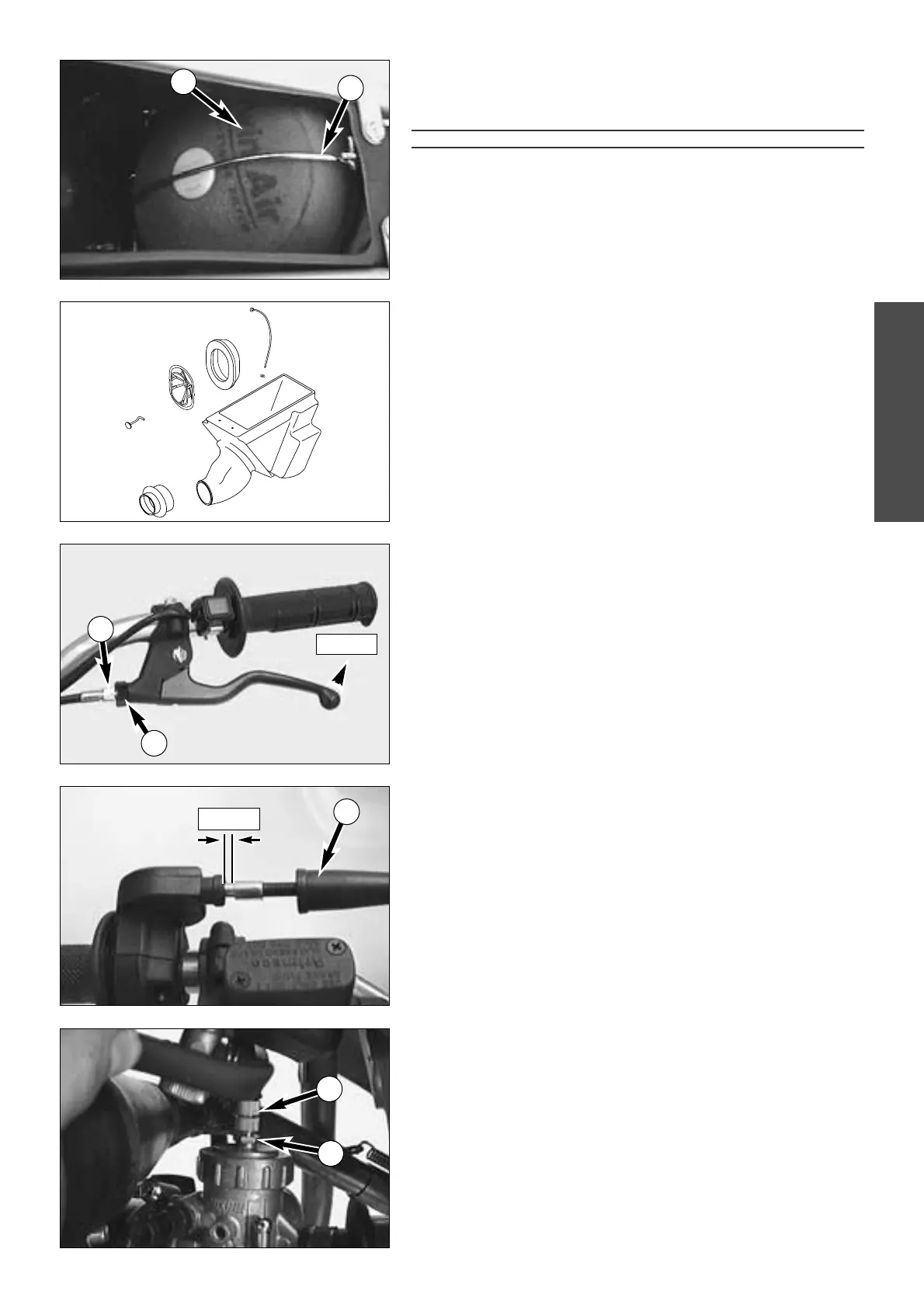

Cleaning of air filter*
To do this, remove the seat and the air filter cover from the air filter box.
Unclap the filter holder
1, swing back and remove air filter 2 plus filter car-
rier
3 from the filter box.
!
CAUTION
!
D
O NOT CLEAN FOAM FILTER WITH FUEL OR PETROLEUM SINCE THESE DAMAGE THE
FOAM
. KTM RECOMMENDS THE PRODUCTS OF THE COMPANY PUTOLINE FOR AIR FIL-
TER MAINTENANCE. „ACTION CLEANER“ FOR CLEANING PURPOSES AND „ACTION
F
LUID“ TO OIL THE FOAM FILTER.
Thoroughly wash the foam filter in special cleaning fluid and allow to dry
well. Only press out the filter, do not wring out under any circumstances.
Oil the dry foam filter with a high grade filter oil. Also clean the air filter box.
Check carburettor collar
A for damage and that it is fitted correctly.
Mount the air filter
2 on the filter support 3. Grease the front side of the
filter, to improve the seal. Mount the air filter and the filter support in the
filter box. Make sure they are centered B, and lock into place with the filter
holder
1.
Adjusting the clutch cable
When the engine is cold the play of the clutch lever should be 10 mm (mea-
sure play at the outer end of the clutch lever).
To adjust the clutch cable push back the protection cover.
Undo the counter nut
4 and twist the adjustment screw 5 until the desi-
red adjustment is achieved.
After the adjustment process retighten the counter nut
4 and put the pro-
tection cover back into place.
Adjusting the throttle cable *
The play of the throttle cable should be 3-5 mm at all times. To check the
play of the throttle cable push back the protection cover 6 at the throttle
grip. Now it should be possible to pull the outer sleeve of the throttle cable
3-5 mm off the throttle twist grip housing before you begin to feel a slight
resistance.
To adjust the throttle cable undo the counter nut
9 at the carburetor and
twist the adjustment screw
8 until the desired adjustment is achieved. After
the adjustment process retighten the counter nut 9 and make sure the pro-
tection cover is properly put back into place.
3-5 mm
2
1
10 mm
4
5
6
8
9
1
2
3
A
