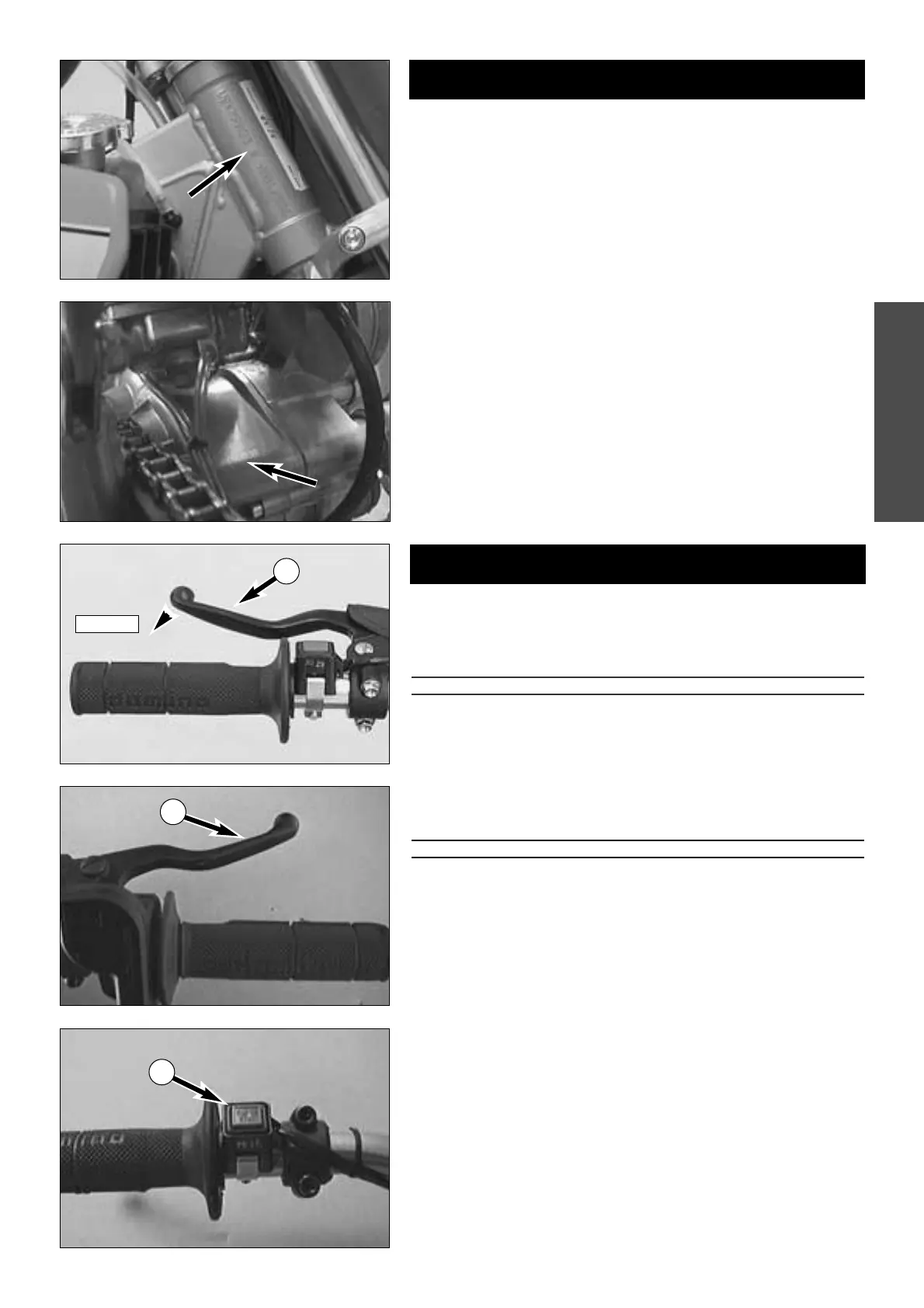

Chassis number
The chassis number is located on the type plate on the steering head. Write
this number into the field on page no 1.
Engine number
The engine number is stamped into the engine housing underneath the car-
buretor. Write this number into the field on page no 1.
Clutch lever
The clutch lever 1 is fitted on the left hand side of the handle bar. When
engine is cold, there should allways be a play of 10 mm (0,4 in) at this lever
(measured at outer edge).
!
CAUTION
!
I
F THERE IS NO PLAY ON THE CLUTCH LEVER, THE CLUTCH WILL START TO SLIP. THE
CLUTCH WILL THEN OVERHEAT
, DESTROYING THE CLUTCH LININGS.
Hand brake lever
The hand brake lever 2 is mounted on the handle bars on the right and
actuates the front wheel brake.
WARNING
I
F THE RESISTANCE IN THE HAND BRAKE LEVER FEELS “SPONGY” (TOO MUCH GIVE), THIS
IS AN INDICATION THAT SOMETHING IS WRONG WITH THE BRAKE SYSTEM
. DON’T LET
YOUR CHILD RIDE THE MOTORCYCLE ANYMORE WITHOUT FIRST HAVING THE BRAKE
SYSTEM LOOKED OVER BY A
KTM DEALER.
Short circuit button
The short circuit button 3 turns off the engine. When pressing this button,
the ignition circuit is short-cicuited.
