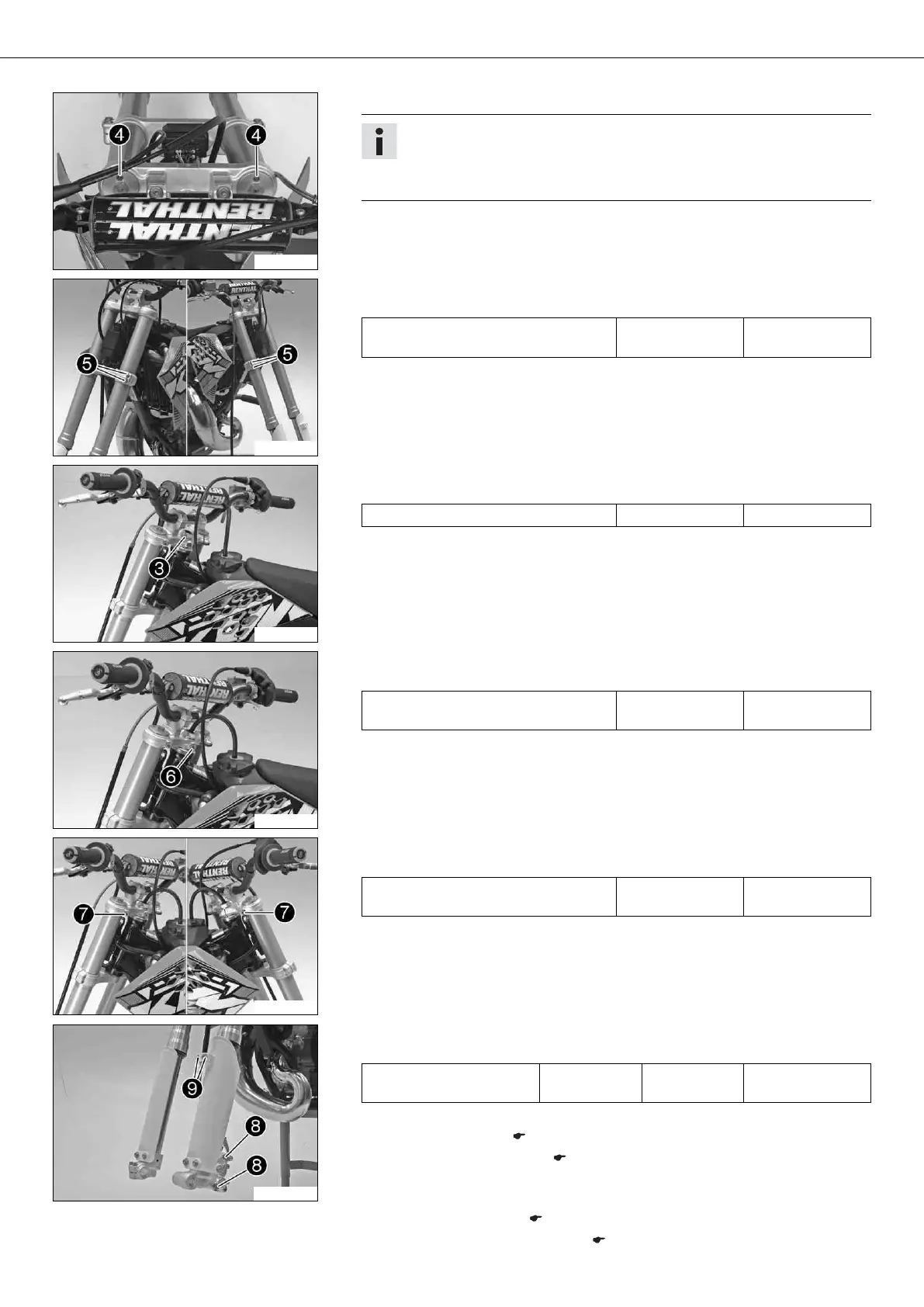

MAINTENANCE WORK ON THE CHASSIS 30
C00011-10
– Position the fork legs.
Info
The upper milled groove in the fork leg must be flush with the top edge of
the upper triple clamp.
Position bleeder screws toward the front.
C00012-10
– Tighten screws .
Guideline
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)
C00046-10
– Tighten nut .
Guideline
Nut, steering stem M20x1.5 10 Nm (7.4 lbf ft)
– Position the fuel tank breather.
C00041-10
– Mount and tighten screw .
Guideline
Screw, top triple clamp M8 20 Nm
(14.8 lbf ft)
C00042-10
– Mount and tighten screws .
Guideline
Screw, top triple clamp M8 20 Nm
(14.8 lbf ft)
B00399-10
– Position brake caliper, mount and tighten screws .
Guideline
Screw, brake caliper M8 20 Nm
(14.8 lbf ft)
Loctite
®
243™
– Position the brake line and clamp. Mount and tighten screws .
– Install the front fender. ( p. 33)
– Install the start number plate. ( p. 32)
– Check that the wiring harness, cables, and brake and clutch lines can move freely
and are routed correctly.
–
Install the front wheel. x ( p. 55)
– Check play of steering head bearing. ( p. 31)
