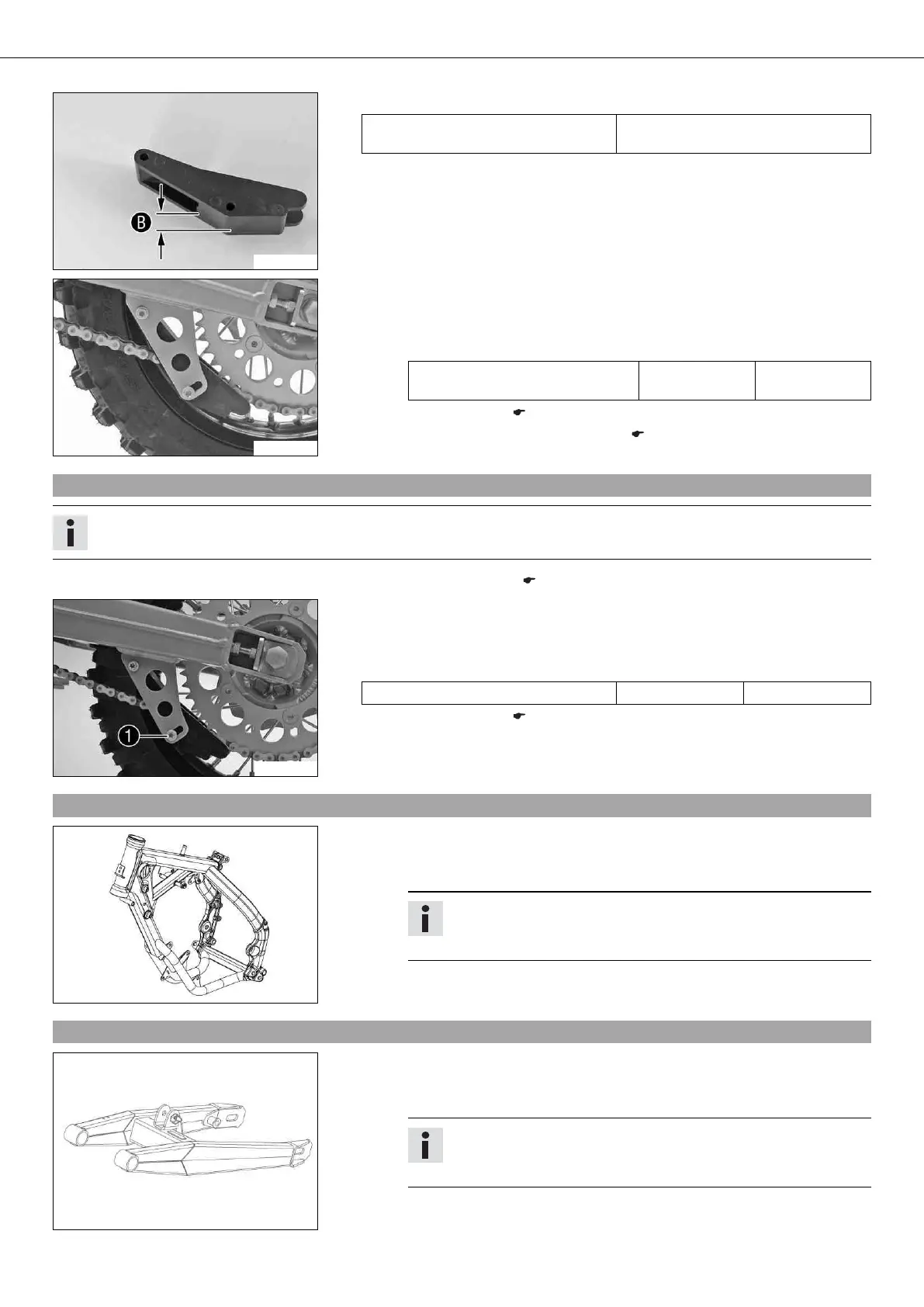

MAINTENANCE WORK ON THE CHASSIS 42
B00384-10
– Measure the material thickness  on the bottom of the chain guide.
Minimum distance  at the lowest
position
13 mm (0.51 in)
» If distance  is less than the specified measurement:
–
Change the chain guide. x
B00385-01
– Check the chain guide for tightness.
» If the chain guide is loose:
– Tighten the chain guide.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
– Install the chain guard. ( p. 38)
– Remove the motorcycle from the lift stand. ( p. 26)
10.37Adjusting the chain guide x
Info
The size of the chain wheel varies with the number of teeth. The chain guide can be adjusted on small sprockets.
– Remove the chain guard. ( p. 38)
700459-01
– Loosen screw .
– Position the chain guide.
– Tighten screw.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Install the chain guard. ( p. 38)
10.38Checking the frame x
601599-01
– Check the frame for cracking and deformation.
» If the frame exhibits cracking or deformation due to a mechanical impact:
–
Change the frame. x
Info
A frame that has been damaged due to a mechanical impact must
always be changed. Repair of the frame is not authorized by KTM.
10.39Checking the swingarm x
601598-01
– Check the swingarm for damage, cracking, and deformation.
» If the swingarm exhibits damage, cracking, or deformation:
–
Change the swingarm. x
Info
Always replace a damaged swingarm. Repair of the swingarm is not
authorized by KTM.
