39/IGNITION SYSTEM 177
24.3Ignition coil - checking the secondary winding
Condition
Ignition coil cylinder 1 is disconnected.
Spark plug connector cylinder 1 has been removed.
– Remove the fuel tank.
600739-13

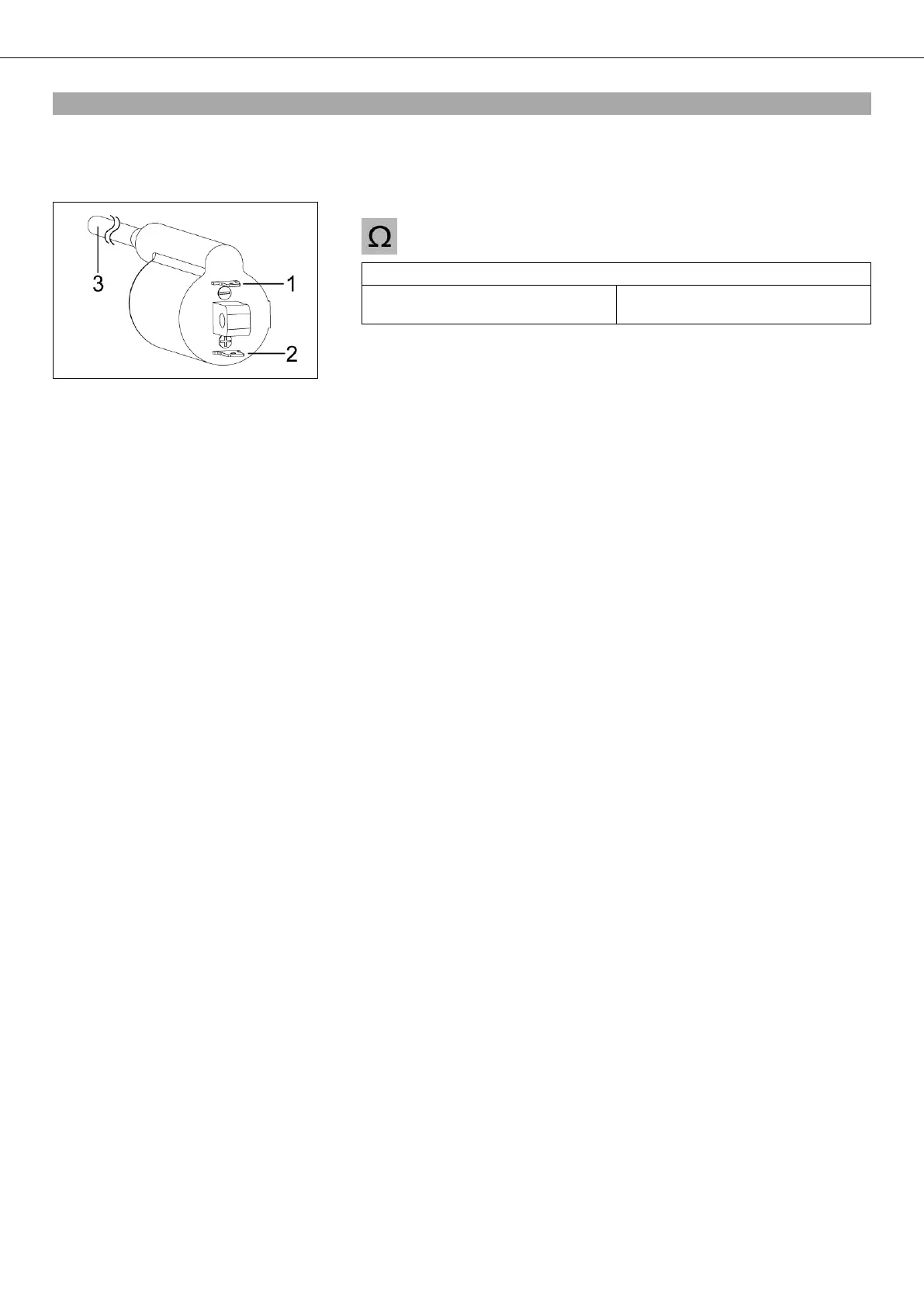

Ignition coil cylinder 1 - check the secondary winding resistance
– Measure the resistance between the specified points.
Ignition coil pin 2 (+) – Ignition coil pin 3
Ignition coil
Resistance of secondary winding
at: 20 °C (68 °F)
10.4… 15.6 kΩ
» If the displayed value is not equal to the setpoint value:
– Replace the ignition coil.
