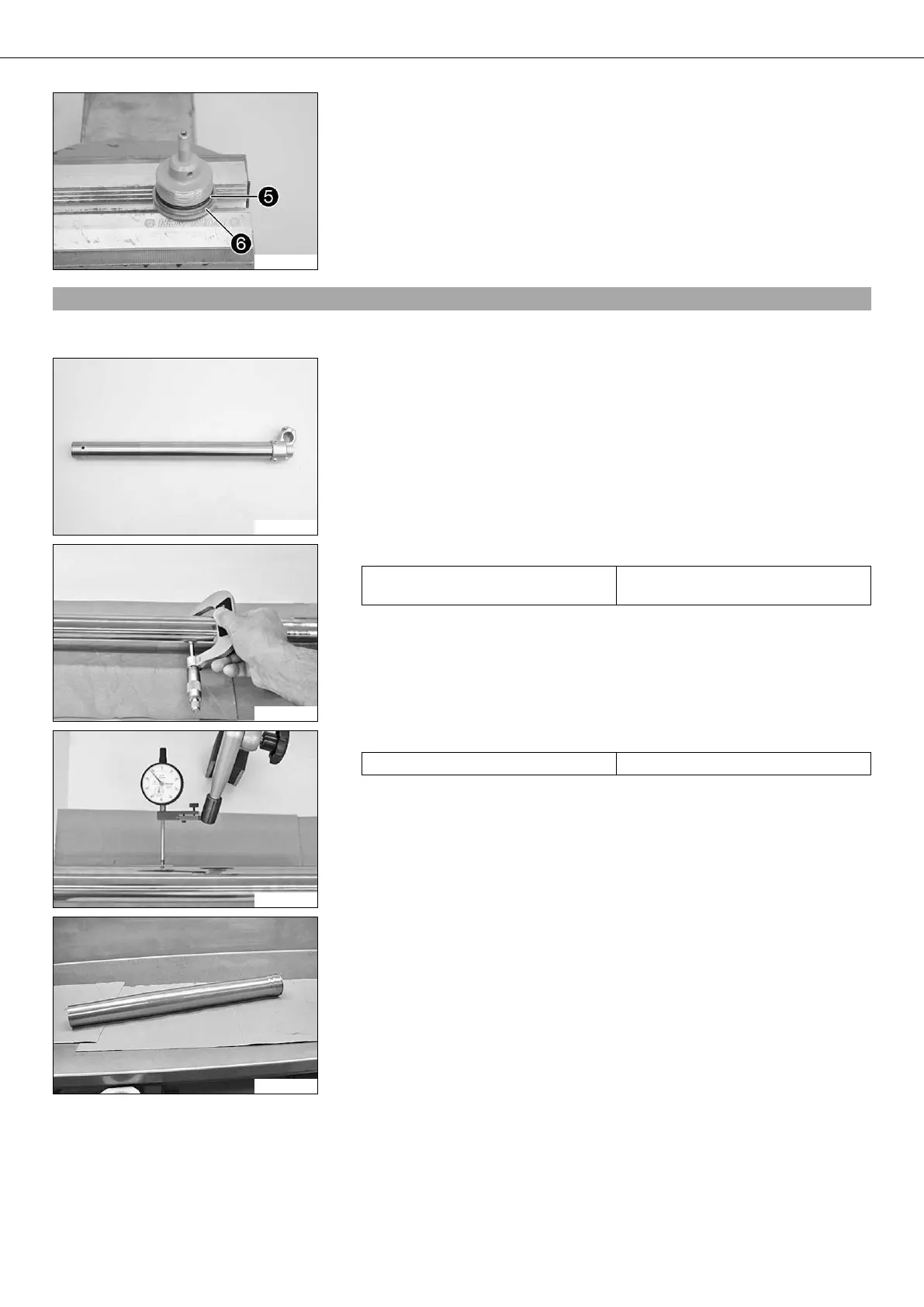

01/FORK, TRIPLE CLAMP 23
200704-10
– Remove O-ring and seal ring from the tap compression.
– Unclamp the tap compression.
5.13Checking the fork legs (690 Enduro)
Condition
Fork dismantled.
200728-10
– Check the inner tube and the axle clamp for damage.
» If damage is found:
– Replace the inner tube.
200684-10
– Measure the external diameter of the inner tube in several places.
External diameter of inner tube 47.975… 48.005 mm (1.88878…
1.88996 in)
» If the measured value is less than the specified value:
– Replace the inner tube.
200685-10
– Measure the run-out of the inner tube.
Run-out of inner tube ≤ 0.20 mm (≤ 0.0079 in)
» If the measured value is greater than the specified value:
– Replace the inner tube.
200632-10
– Check the outer tube for damage.
» If damage is found:
– Replace the outer tube.
