KTM 690 Enduro R EU 2013 Setup Instruction

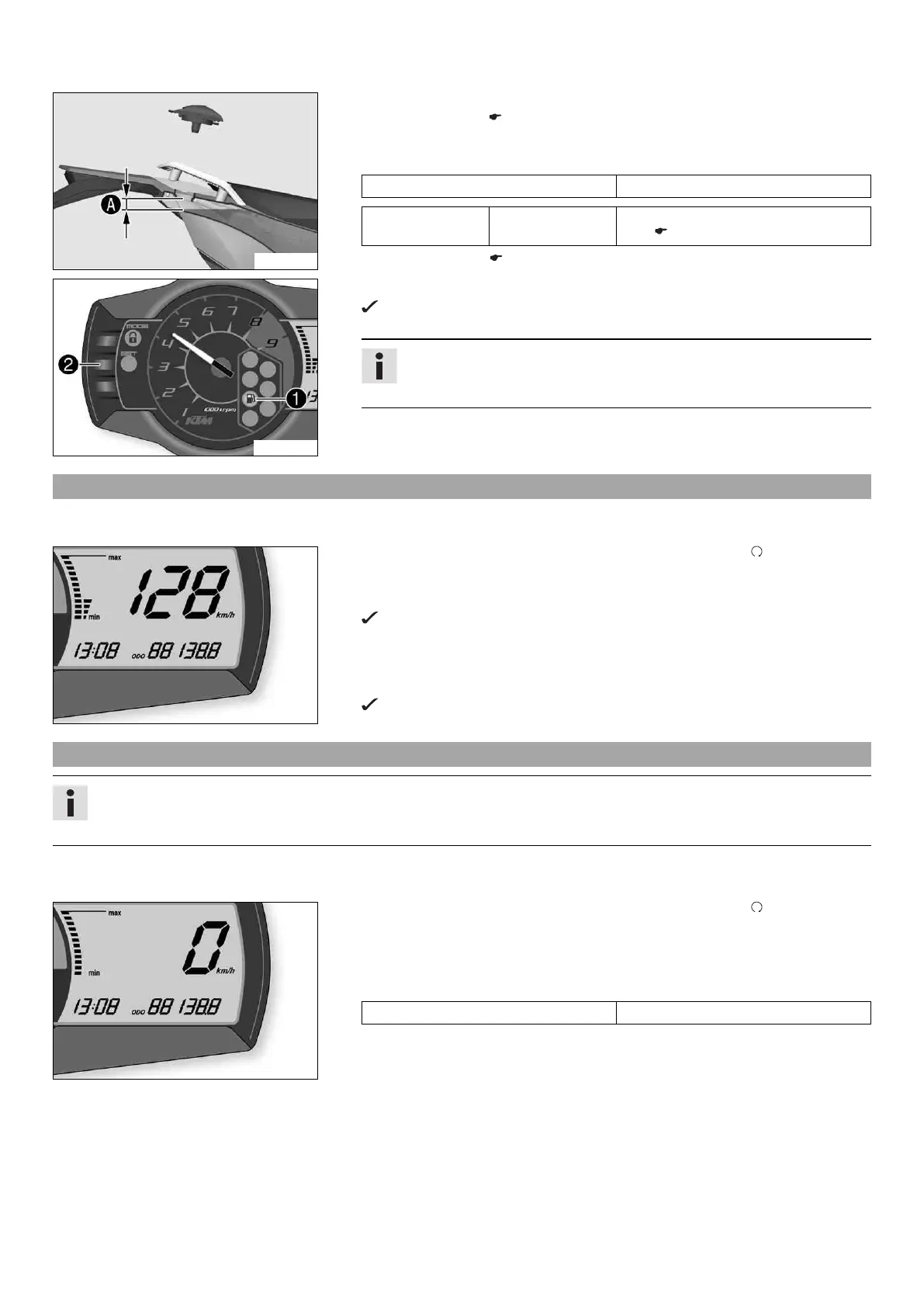

3 WORK 11
400405-10
– Switch off the engine.
– Open the filler cap. ( p. 8)
– Fill the fuel tank with fuel up to measurement A.
Guideline
Measurement A 20 mm (0.79 in)
Total fuel tank
capacity, approx.
12 l (3.2 US gal) Super unleaded (ROZ 95/RON 95/PON
91) ( p. 14)
– Close the filler cap. ( p. 8)
B00104-10
– Press the SET button 2 for two seconds.
The fuel level warning lamp 1 switches off. TRIP F is set to 0.0 and the display
returns to the previous display mode.
Info
If you do not press the SET button 2, the reset takes place automatically
after approx. three minutes.
3.14 Setting the clock
Condition
The motorcycle is stationary.
400838-01
– Switch on the ignition by turning the ignition key to position ON .
– Press the MODE button repeatedly until the ODO mode is active.
– Keep the MODE button and the SET button pressed simultaneously.
The time display begins to flash.
– Press the MODE button to set the hour.
– Press the SET button to set the minute.
– Keep the MODE button and the SET button pressed simultaneously.
The time is set.
3.15 Setting kilometers or miles
Info
If you change the unit, the value is retained and converted accordingly.
Making the setting according to the country.
Condition
The motorcycle is stationary.
400839-01
– Switch on the ignition by turning the ignition key to position ON .
– Press the MODE button repeatedly until the ODO mode is active.
– Keep the MODE button pressed until the display mode changes from km/h to mph or
from mph to km/h.
Guideline
Activation duration of MODE button 10 s

KTM 690 Enduro R EU 2013 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	690 cc
Transmission	6-speed
Rear Suspension	WP monoshock
Compression Ratio	12.5:1
Fuel System	Electronic Fuel Injection
Cooling System	Liquid cooled
Front Tire	90/90-21
Rear Tire	140/80-18
Starter	Electric
Lubrication	Forced oil lubrication with 2 oil pumps
ABS	Optional
Power	67 hp (49 kW)
Seat Height	910 mm
Fuel Capacity	12 l
Front Suspension	WP USD 48 mm
Brakes Front	300 mm disc
Brakes Rear	240 mm disc
Bore x Stroke	102 mm x 84.5 mm
Frame	Chrome-molybdenum trellis frame, powder coated
Suspension Travel Front	250 mm
Suspension Travel Rear	250 mm
Front Brake Caliper	Single piston
Rear Brake Caliper	Brembo single piston, floating caliper
Wheel Front	21 inch
Wheel Rear	18 inch
Chain	5/8 x 1/4"
Steering Head Angle	63.5°
Wheelbase	1, 500 mm (59.1 in)
Ground Clearance	280 mm (11 in)
