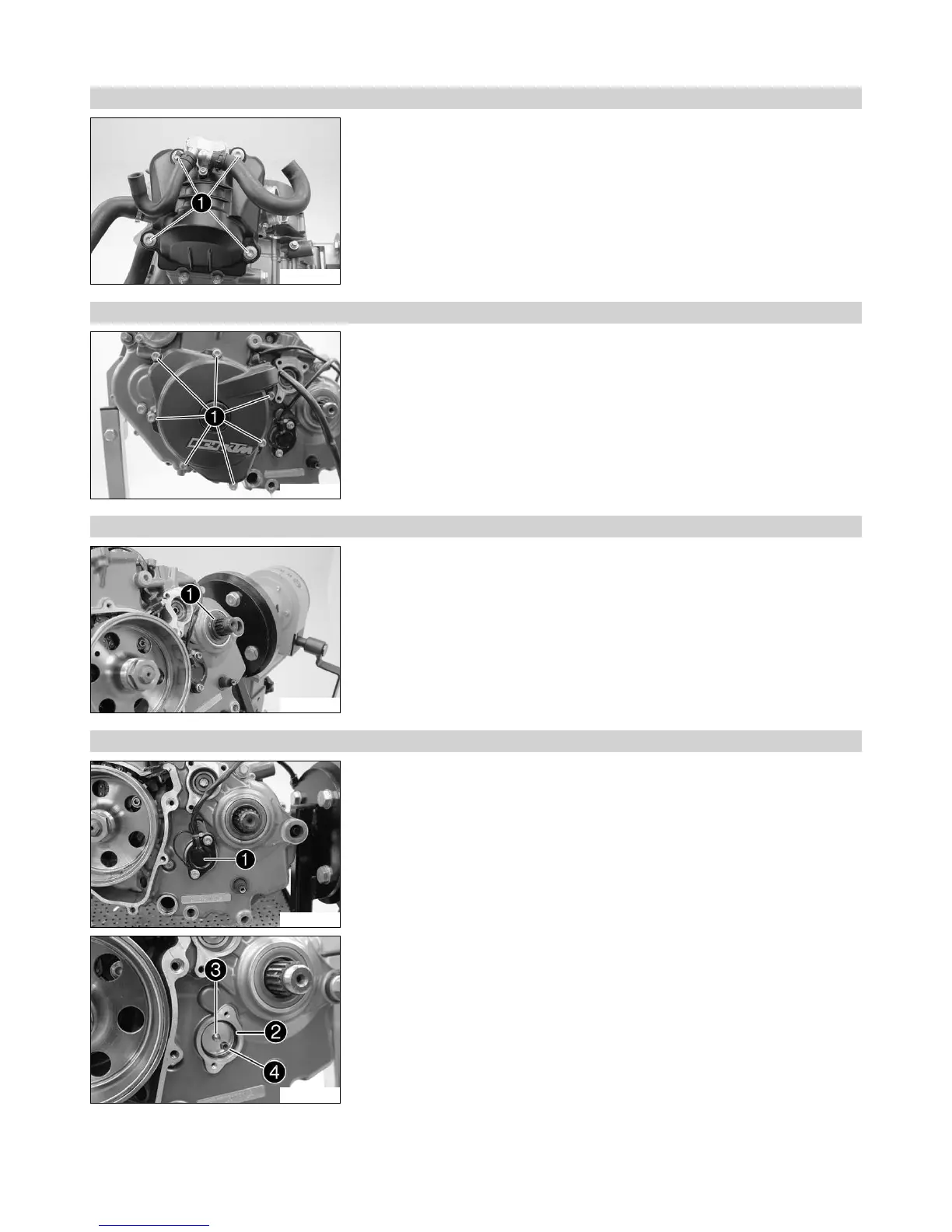

17 ENGINE 113

17.3.4 Removing valve cover

300003-10

– Remove screws 1. Take off the valve cover with the valve cover seal.

17.3.5 Removing the alternator cover

300004-10

– Remove screws 1. Take off the alternator cover.

– Remove dowels.

17.3.6 Removing spacer

302124-10

– Remove the spacer 1 of the countershaft.

17.3.7 Removing gear position sensor

302126-10

– Remove screws. Remove the gear position sensor 1.

300007-10

– Remove O-ring 2.

– Remove contact pin 3 and the contact springs 4.
