KTM 690 Enduro R User Manual

15 COOLING SYSTEM 150
Warning
Danger of poisoning Coolant is poisonous and a health hazard.
– Coolant must not come into contact with the skin, eyes, or clothing. If contact occurs with the eyes, rinse with water immedi-
ately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swallowed, con-
tact a physician immediately. Change clothing that is contaminated with coolant. Keep coolant out of reach of children.
Preparatory work
– Remove the engine guard. ( p. 94)
600616-10
Main work
– Position the motorcycle upright.
– Place a suitable container under the engine.
–

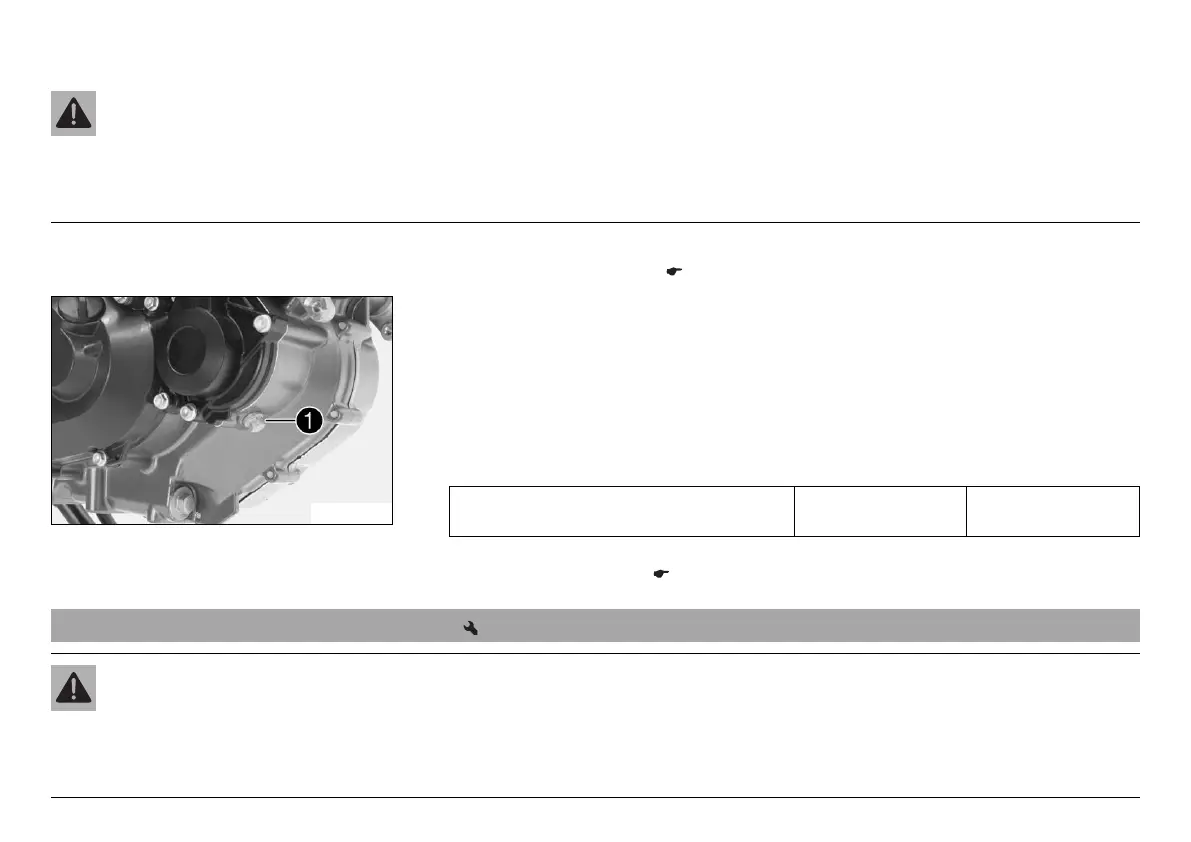

Remove screw

. Remove the radiator cap.
– Completely drain the coolant.
–
Mount and tighten screw

with a new seal ring.
Guideline
Plug, drain hole of water pump M10x1 15 Nm
(11.1 lbf ft)
Finishing work
– Install the engine guard. ( p. 95)
15.5 Filling/bleeding the cooling system
Warning
Danger of poisoning Coolant is poisonous and a health hazard.
– Coolant must not come into contact with the skin, eyes, or clothing. If contact occurs with the eyes, rinse with water immedi-
ately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swallowed, con-
tact a physician immediately. Change clothing that is contaminated with coolant. Keep coolant out of reach of children.

KTM 690 Enduro R Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Torque	73.5 Nm @ 6, 500 rpm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Primary Drive	40:76
Suspension Travel Front	250 mm
Suspension Travel Rear	250 mm
Wheels Front	1.85 x 21"
Wheels Rear	2.50 x 18"
Tires Front	90/90-21
Tires Rear	140/80-18
Chain	X-Ring 5/8 x 1/4"
Seat Height	910 mm
Fuel Tank Capacity	13.5 l
Dry Weight	146 kg
Power	74 hp (55 kW) @ 8, 000 rpm
Fuel System	Keihin EFI (Electronic Fuel Injection)
Clutch	hydraulically actuated
Frame	Chrome-molybdenum steel trellis frame, powder coated
Front Suspension	WP XPLOR USD, Ø 48 mm
Rear Suspension	WP XPLOR
Front Brake	Brembo
Rear Brake	Brembo single piston caliper, 240 mm disc
ABS	Bosch 9.1 MP (disengageable)
Wheelbase	1, 502 mm ± 10 mm
