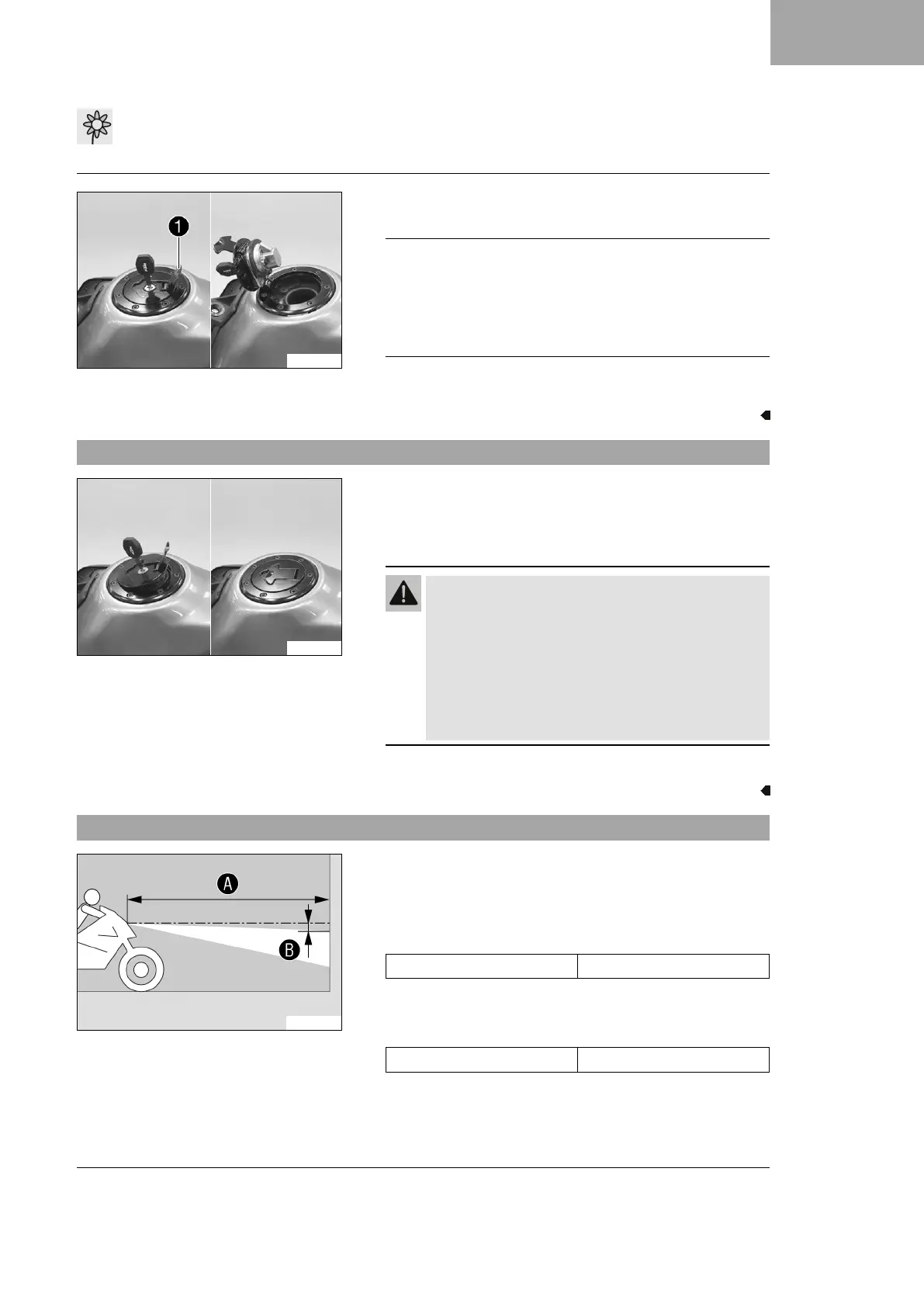

WORK 3
17
Note
Environmental hazard Improper handling of fuel is a danger to the environment.
– Do not allow fuel to enter the groundwater, the soil, or the sewage system.
V01196-10
–
Lift cover
1
of the fuel tank filler cap and insert the ignition
key into the lock.
Note
Danger of damage The ignition key may break if overloaded.
Damaged ignition keys must be replaced.
– Push down on the fuel tank filler cap to take pressure off
the ignition key.
– Turn the ignition key 90° clockwise.
– Lift the fuel tank filler cap.
3.9 Closing the fuel tank filler cap
V01197-01
– Fold down the fuel tank filler cap.
– Turn the ignition key 90° clockwise.
– Push down the fuel tank filler cap and turn the ignition key
counterclockwise until the lock closes.
Warning
Fire hazard Fuel is highly flammable, toxic and a
health hazard.
– Check that the fuel tank filler cap is locked cor-
rectly after closing.
– Change your clothing if fuel spills on them.
– Rinse the affected area immediately with plenty of
water in the event of contact with the skin.
– Remove the ignition key and close the cover.
3.10 Checking the headlight setting
400726-10
– Position the vehicle upright on a horizontal surface in front of
a light wall and make a marking at the height of the center of
the low beam headlight.
–
Make another mark at a distance
B
under the first marking.
Guideline
Distance
B
5 cm (2 in)
–
Position the vehicle perpendicular to the wall at a distance
A
from the wall and switch on the low beam.
Guideline
Distance
A
5 m (16 ft)
– The rider now mounts the motorcycle with luggage and passen-
ger if applicable.
– Check the headlight setting.
